Christie Projector Roadie HD+35K User Manual

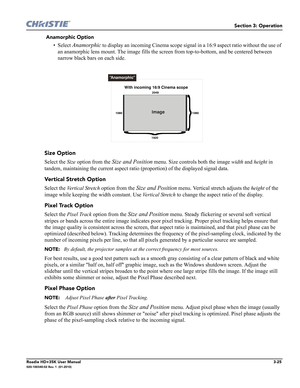

Section 3: Operation
Roadie HD+35K User Manual3-25020-100340-02 Rev. 1  (01-2010)
 Anamorphic Option
•Select Anamorphic to display an incoming Cinema scope signal in a 16:9 aspect ratio without the use of
an anamorphic lens mount. The image fills the screen from top-to-bottom, and be centered between
narrow black bars on each side.
Size Option
Select the Size option from the Size and Position menu. Size controls both the image width and height in
tandem, maintaining the current aspect ratio...

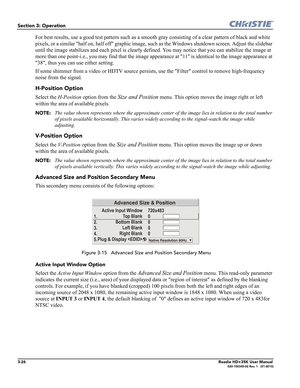

3-26Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
For best results, use a good test pattern such as a smooth gray consisting of a clear pattern of black and white
pixels, or a similar half on, half off graphic image, such as the Windows shutdown screen. Adjust the slidebar
until the image stabilizes and each pixel is clearly defined. You may notice that you can stabilize the image at
more than one point-i.e., you may find that the image appearance at 11 is identical to...

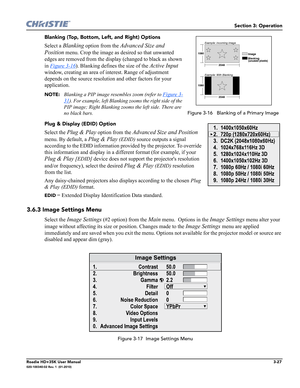

Section 3: Operation
Roadie HD+35K User Manual3-27020-100340-02 Rev. 1  (01-2010)
Blanking (Top, Bottom, Left, and Right) Options
Select a Blanking option from the Advanced Size and
Position
 menu. Crop the image as desired so that unwanted
edges are removed from the display (changed to black as shown
in Figure 3-16
). Blanking defines the size of the Active Input
window, creating an area of interest. Range of adjustment
depends on the source resolution and other factors for your
application....

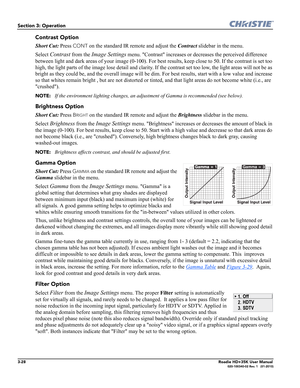

3-28Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
Contrast Option
Short Cut: Press CONT on the standard IR remote and adjust the Contract slidebar in the menu.
Select
Contrast from the Image Settings menu. Contrast increases or decreases the perceived difference
between light and dark areas of your image (0-100). For best results, keep close to 50. If the contrast is set too
high, the light parts of the image lose detail and clarity. If the contrast set too low, the...

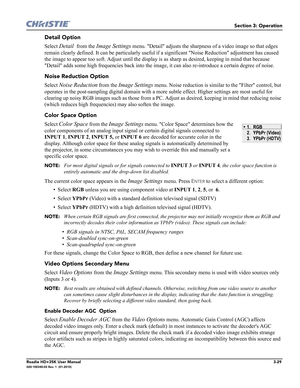

Section 3: Operation
Roadie HD+35K User Manual3-29020-100340-02 Rev. 1  (01-2010)
Detail Option
Select Detail  from the Image Settings menu. Detail adjusts the sharpness of a video image so that edges
remain clearly defined. It can be particularly useful if a significant Noise Reduction adjustment has caused
the image to appear too soft. Adjust until the display is as sharp as desired, keeping in mind that because
Detail adds some high frequencies back into the image, it can also re-introduce a...

3-30Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

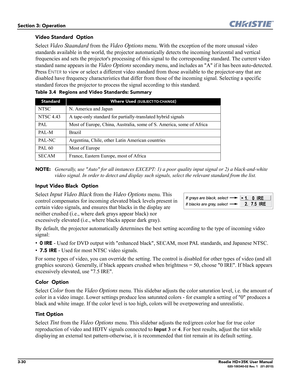

Video Standard  Option
Select Video Staandard from the Video Options menu. With the exception of the more unusual video
standards available in the world, the projector automatically detects the incoming horizontal and vertical
frequencies and sets the projectors processing of this signal to the corresponding standard. The current video
standard name appears in the
Video Options secondary menu, and includes an A if it...

Section 3: Operation
Roadie HD+35K User Manual3-31020-100340-02 Rev. 1  (01-2010)

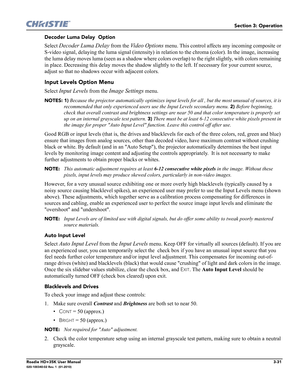

Decoder Luma Delay  Option
Select Decoder Luma Delay from the Video Options menu. This control affects any incoming composite or
S-video signal, delaying the luma signal (intensity) in relation to the chroma (color). In the image, increasing
the luma delay moves luma (seen as a shadow where colors overlap) to the right slightly, with colors remaining
in place. Decreasing this delay moves the shadow slightly to the left....

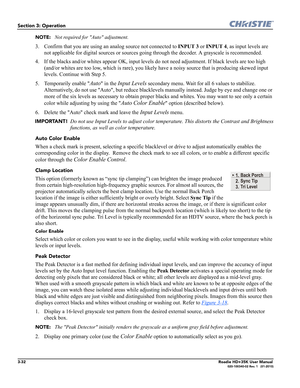

3-32Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
NOTE: Not required for Auto adjustment.
3. Confirm that you are using an analog source not connected to INPUT 3 or INPUT 4, as input levels are
not applicable for digital sources or sources going through the decoder. A grayscale is recommended.
4. If the blacks and/or whites appear OK, input levels do not need adjustment. If black levels are too high
(and/or whites are too low, which is rare), you likely have a noisy...

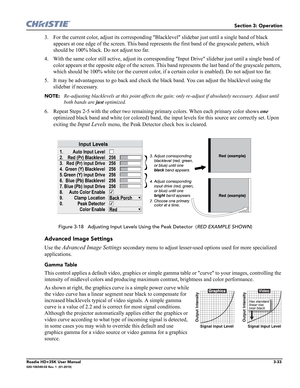

Section 3: Operation
Roadie HD+35K User Manual3-33020-100340-02 Rev. 1  (01-2010)
3. For the current color, adjust its corresponding Blacklevel slidebar just until a single band of black
appears at one edge of the screen. This band represents the first band of the grayscale pattern, which
should be 100% black. Do not adjust too far.
4. With the same color still active, adjust its corresponding Input Drive slidebar just until a single band of
color appears at the opposite edge of the screen. This band...

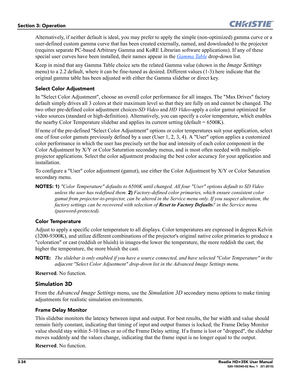

3-34Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
Alternatively, if neither default is ideal, you may prefer to apply the simple (non-optimized) gamma curve or a
user-defined custom gamma curve that has been created externally, named, and downloaded to the projector
(requires separate PC-based Arbitrary Gamma and KoRE Librarian software applications). If any of these
special user curves have been installed, their names appear in the Gamma Table
 drop-down list.
Keep in...
