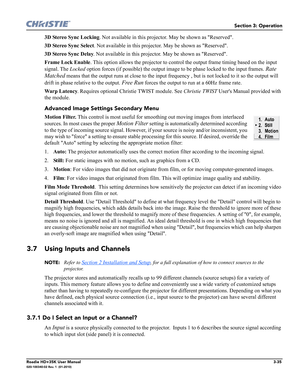

3D Stereo Sync Locking. Not available in this projector. May be shown as Reserved.
3D Stereo Sync Select. Not available in this projector. May be shown as Reserved.
3D Stereo Sync Delay. Not available in this projector. May be shown as Reserved.
Frame Lock Enable. This option allows the projector to control the output frame timing based on the input
signal. The Locked option forces (if possible) the output image to be...

3-36Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

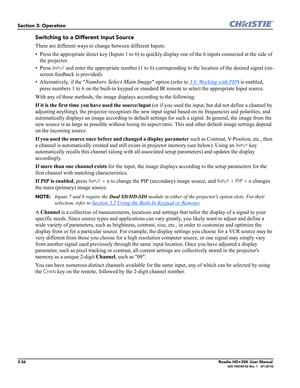

Switching to a Different Input Source
There are different ways to change between different Inputs:
• Press the appropriate direct key (Inputs 1 to 6) to quickly display one of the 6 inputs connected at the side of
the projector.
• Press
INPUT and enter the appropriate number (1 to 6) corresponding to the location of the desired signal (on-
screen feedback is provided).
• Alternatively, if the
Numbers Select Main Image...

Section 3: Operation
Roadie HD+35K User Manual3-37020-100340-02 Rev. 1  (01-2010)

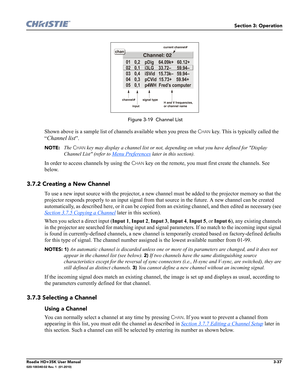

 Figure 3-19  Channel List
Shown above is a sample list of channels available when you press the CHAN key. This is typically called the
“
Channel list”.
NOTE:  The CHAN key may display a channel list or not, depending on what you have defined for Display
Channel List (refer to
Menu Preferences later in this section).
In order to access channels by using the CHAN key on the remote, you must first create the channels. See...

3-38Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

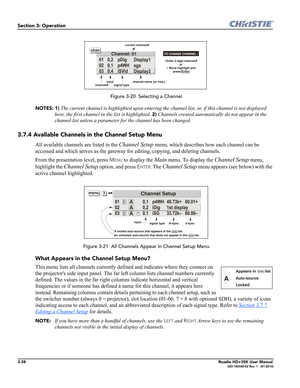

 Figure 3-20  Selecting a Channel
NOTES: 1)
 The current channel is highlighted upon entering the channel list, or, if this channel is not displayed
here, the first channel in the list is highlighted.
2) Channels created automatically do not appear in the
channel list unless a parameter for the channel has been changed.
3.7.4 Available Channels in the Channel Setup Menu
All available channels are listed in the Channel...

Section 3: Operation
Roadie HD+35K User Manual3-39020-100340-02 Rev. 1  (01-2010)

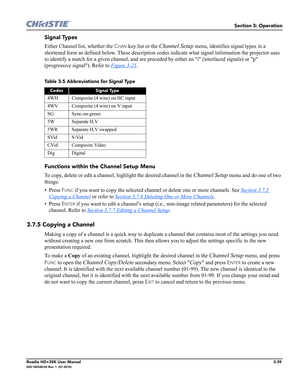

Signal Types
Either Channel list, whether the CHAN key list or the Channel Setup menu, identifies signal types in a
shortened form as defined below. These description codes indicate what signal information the projector uses
to identify a match for a given channel, and are preceded by either an i (interlaced signals) or p
(progressive signal). Refer to Figure 3-21
.
Functions within the Channel Setup Menu
To copy, delete...

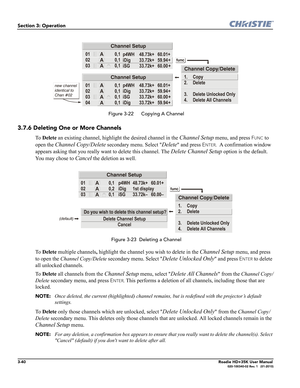

3-40Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

 Figure 3-22   Copying A Channel
3.7.6 Deleting One or More Channels
To  Delete an existing channel, highlight the desired channel in the Channel Setup menu, and press FUNC to
open the
Channel Copy/Delete secondary menu. Select Delete and press ENTER.  A confirmation window
appears asking that you really want to delete this channel. The
Delete Channel Setup option is the default.
You may chose to
Cancel the...

Section 3: Operation
Roadie HD+35K User Manual3-41020-100340-02 Rev. 1  (01-2010)

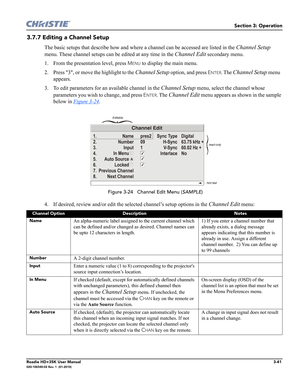

3.7.7 Editing a Channel Setup
The basic setups that describe how and where a channel can be accessed are listed in the Channel Setup
menu. These channel setups can be edited at any time in the
Channel Edit secondary menu.
1. From the presentation level, press
MENU to display the main menu.
2. Press 3, or move the highlight to the
Channel Setup option, and press ENTER. The Channel Setup menu
appears.
3. To edit...

3-42Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation

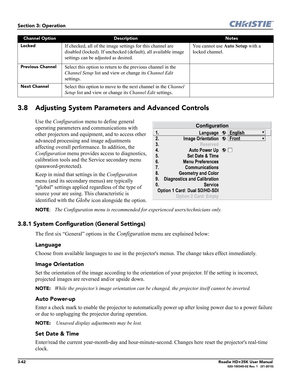

3.8 Adjusting System Parameters and Advanced Controls
Use the Configuration menu to define general
operating parameters and communications with
other projectors and equipment, and to access other
advanced processing and image adjustments
affecting overall performance. In addition, the
Configuration menu provides access to diagnostics,
calibration tools and the Service secondary menu
(password-protected).
Keep in...

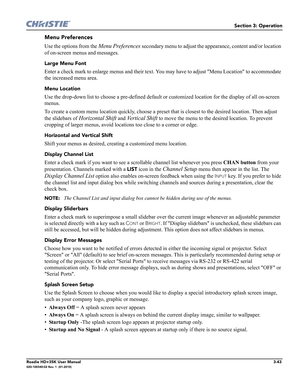

Section 3: Operation
Roadie HD+35K User Manual3-43020-100340-02 Rev. 1  (01-2010)
Menu Preferences
Use the options from the Menu Preferences secondary menu to adjust the appearance, content and/or location
of on-screen menus and messages.
Large Menu Font
Enter a check mark to enlarge menus and their text. You may have to adjust Menu Location to accommodate
the increased menu area.
Menu Location
Use the drop-down list to choose a pre-defined default or customized location for the display of all...

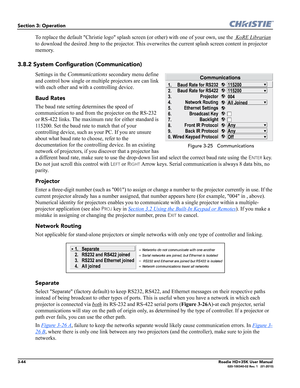

3-44Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
To replace the default Christie logo splash screen (or other) with one of your own, use the  KoRE Librarian
to download the desired .bmp to the projector. This overwrites the current splash screen content in projector
memory.
3.8.2 System Configuration (Communication)
Settings in the Communications secondary menu define
and control how single or multiple projectors are can link
with each other and with a controlling...
