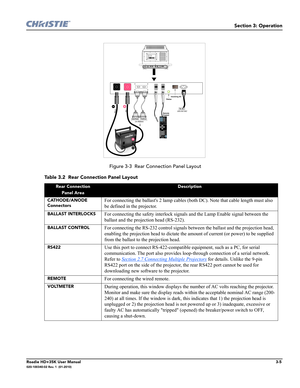

Christie Projector Roadie HD+35K User Manual

Section 3: Operation
Roadie HD+35K User Manual3-5020-100340-02 Rev. 1  (01-2010)
 Figure 3-3  Rear Connection Panel Layout
Table 3.2  Rear Connection Panel Layout
Rear Connection
Panel AreaDescription
CATHODE/ANODE
Connectors
For connecting the ballasts 2 lamp cables (both DC). Note that cable length must also
be defined in the projector.
BALLAST INTERLOCKSFor connecting the safety interlock signals and the Lamp Enable signal between the
ballast and the projection head (RS-232).
BALLAST CONTROLFor...

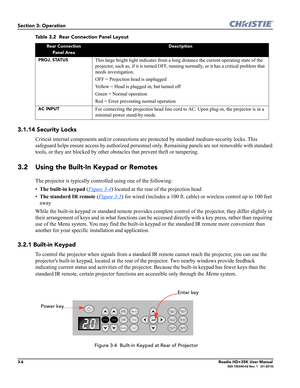

3-6Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
3.1.14 Security Locks
Critical internal components and/or connections are protected by standard medium-security locks. This
safeguard helps ensure access by authorized personnel only. Remaining panels are not removable with standard
tools, or they are blocked by other obstacles that prevent theft or tampering.
3.2 Using the Built-In Keypad or Remotes
The projector is typically controlled using one of the following:
•The...

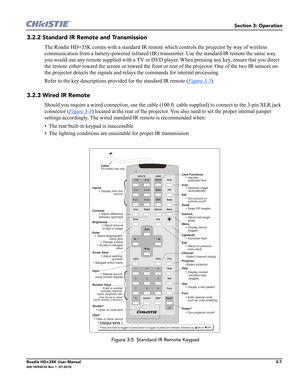

Section 3: Operation
Roadie HD+35K User Manual3-7020-100340-02 Rev. 1  (01-2010)
3.2.2 Standard IR Remote and Transmission
The Roadie HD+35K comes with a standard IR remote which controls the projector by way of wireless
communication from a battery-powered infrared (IR) transmitter. Use the standard IR remote the same way
you would use any remote supplied with a TV or DVD player. When pressing any key, ensure that you direct
the remote either toward the screen or toward the front or rear of the...

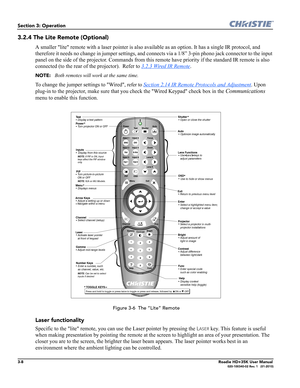

3-8Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
3.2.4 The Lite Remote (Optional)
A smaller lite remote with a laser pointer is also available as an option. It has a single IR protocol, and
therefore it needs no change in jumper settings, and connects via a 1/8” 3-pin phono jack connector to the input
panel on the side of the projector. Commands from this remote have priority if the standard IR remote is also
connected (to the rear of the projector).  Refer to 3.2.3...

Section 3: Operation
Roadie HD+35K User Manual3-9020-100340-02 Rev. 1  (01-2010)

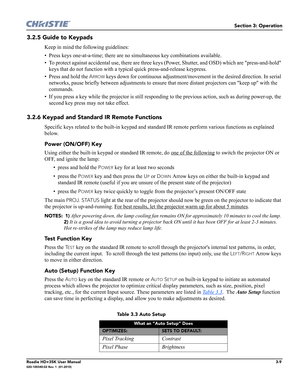

3.2.5 Guide to Keypads
Keep in mind the following guidelines:
• Press keys one-at-a-time; there are no simultaneous key combinations available.
• To protect against accidental use, there are three keys (Power, Shutter, and OSD) which are press-and-hold
keys that do not function with a typical quick press-and-release keypress.
• Press and hold the
ARROW keys down for continuous adjustment/movement in the desired direction....

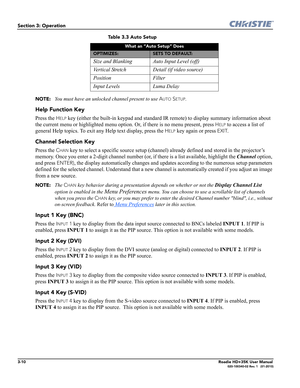

3-10Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
NOTE: You must have an unlocked channel present to use AUTO SETUP.
Help Function Key
Press the HELP key (either the built-in keypad and standard IR remote) to display summary information about
the current menu or highlighted menu option. Or, if there is no menu present, press
HELP to access a list of
general Help topics. To exit any Help text display, press the
HELP key again or press EXIT.
Channel Selection Key
Press...

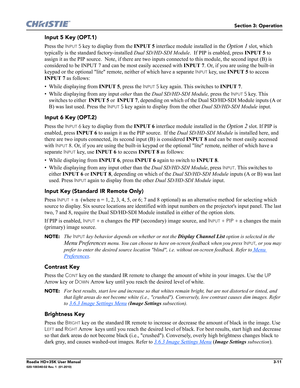

Section 3: Operation
Roadie HD+35K User Manual3-11020-100340-02 Rev. 1  (01-2010)
Input 5 Key (OPT.1)
Press the INPUT 5 key to display from the INPUT 5 interface module installed in the Option 1 slot, which
typically is the standard factory-installed Dual SD/HD-SDI Module.  If PIP is enabled, press INPUT 5 to
assign it as the PIP source.  Note, if there are two inputs connected to this module, the second input (B) is
considered to be INPUT 7 and can be most easily accessed with INPUT 7. Or, if you are...

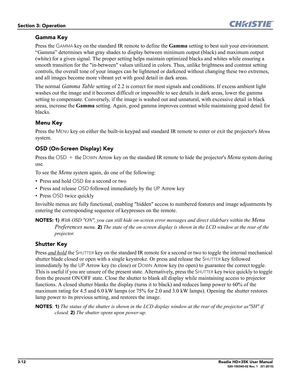

3-12Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
Gamma Key
Press the GAMMA key on the standard IR remote to define the Gamma setting to best suit your environment.
“Gamma” determines what gray shades to display between minimum output (black) and maximum output
(white) for a given signal. The proper setting helps maintain optimized blacks and whites while ensuring a
smooth transition for the in-between values utilized in colors. Thus, unlike brightness and contrast...

Section 3: Operation
Roadie HD+35K User Manual3-13020-100340-02 Rev. 1  (01-2010)

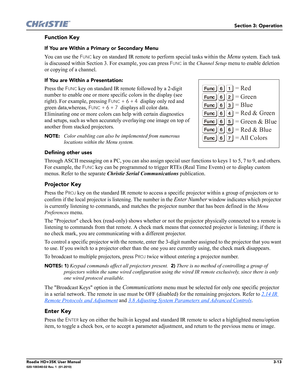

Function Key
If You are Within a Primary or Secondary Menu
You can use the FUNC key on standard IR remote to perform special tasks within the Menu system. Each task
is discussed within Section 3. For example, you can press
FUNC in the Channel Setup menu to enable deletion
or copying of a channel.
If You are Within a Presentation:
Press the FUNC key on standard IR remote followed by a 2-digit
number to enable one or more...

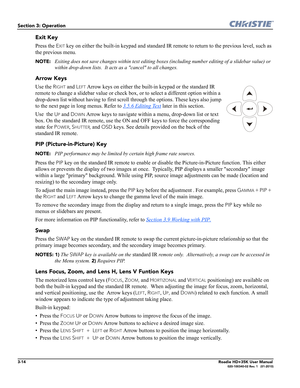

3-14Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
Exit Key
Press the EXIT key on either the built-in keypad and standard IR remote to return to the previous level, such as
the previous menu
.
NOTE:   Exiting does not save changes within text editing boxes (including number editing of a slidebar value) or
within drop-down lists.  It acts as a cancel to all changes.
Arrow Keys
Use the RIGHT and LEFT Arrow keys on either the built-in keypad or the standard IR
remote to...
