Christie Projector Roadie HD+35K User Manual

Section 3: Operation

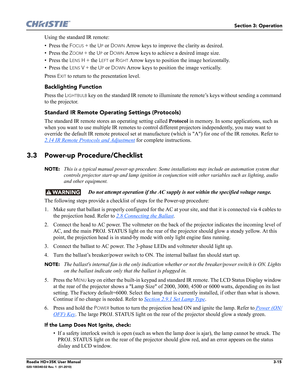

Roadie HD+35K User Manual3-15020-100340-02 Rev. 1  (01-2010)
Using the standard IR remote:
•Press the
FOCUS + the UP or DOWN Arrow keys to improve the clarity as desired.
•Press the
ZOOM + the UP or DOWN Arrow keys to achieve a desired image size.
•Press the
LENS H + the LEFT or RIGHT Arrow keys to position the image horizontally.
•Press the
LENS V + the UP or DOWN Arrow keys to position the image vertically.
Press
EXIT to return to the presentation level.
Backlighting Function...

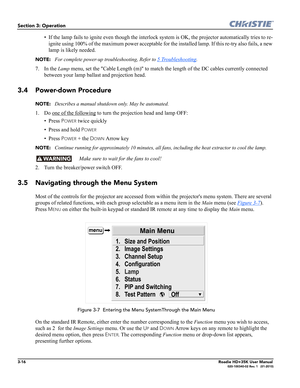

3-16Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
• If the lamp fails to ignite even though the interlock system is OK, the projector automatically tries to re-
ignite using 100% of the maximum power acceptable for the installed lamp. If this re-try also fails, a new
lamp is likely needed.
NOTE:  For complete power-up troubleshooting, Refer to 5 Troubleshooting.
7. In the Lamp menu, set the Cable Length (m) to match the length of the DC cables currently connected...

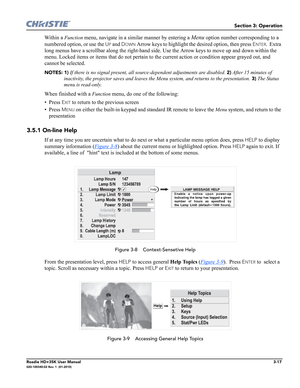

Section 3: Operation
Roadie HD+35K User Manual3-17020-100340-02 Rev. 1  (01-2010)
Within a Function menu, navigate in a similar manner by entering a Menu option number corresponding to a
numbered option, or use the
UP and DOWN Arrow keys to highlight the desired option, then press ENTER.  Extra
long menus have a scrollbar along the right-hand side. Use the Arrow keys to move up and down within the
menu. Locked items or items that do not pertain to the current action or condition appear grayed out,...

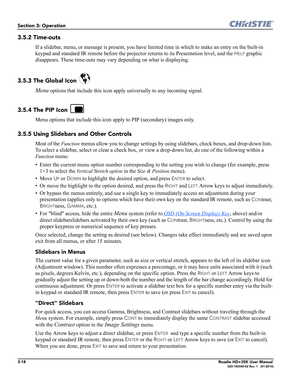

3-18Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
3.5.2 Time-outs
If a slidebar, menu, or message is present, you have limited time in which to make an entry on the built-in
keypad and standard IR remote before the projector returns to its Presentation level, and the
HELP graphic
disappears. These time-outs may vary depending on what is displaying.
3.5.3 The Global Icon
Menu
 options that include this icon apply universally to any incoming signal.
3.5.4 The PIP Icon...

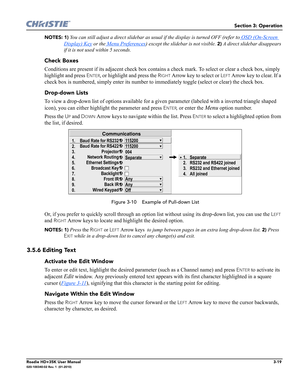

Section 3: Operation
Roadie HD+35K User Manual3-19020-100340-02 Rev. 1  (01-2010)
NOTES: 1) You can still adjust a direct slidebar as usual if the display is turned OFF (refer to OSD (On-Screen
Display) Key or the Menu Preferences) except the slidebar is not visible. 2) A direct slidebar disappears
if it is not used within 5 seconds.
Check Boxes
Conditions are present if its adjacent check box contains a check mark. To select or clear a check box, simply
highlight and press
ENTER, or highlight and...

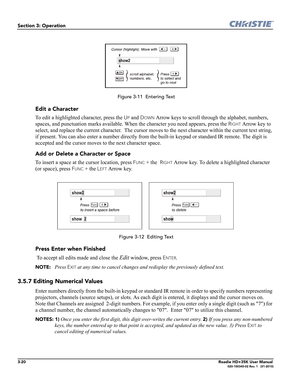

3-20Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
 Figure 3-11  Entering Text
Edit a Character
To edit a highlighted character, press the UP and DOWN Arrow keys to scroll through the alphabet, numbers,
spaces, and punctuation marks available. When the character you need appears, press the
RIGHT Arrow key to
select, and replace the current character.  The cursor moves to the next character within the current text string,
if present. You can also enter a number directly...

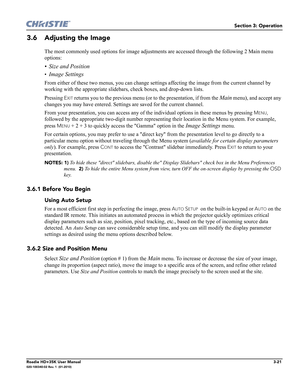

Section 3: Operation
Roadie HD+35K User Manual3-21020-100340-02 Rev. 1  (01-2010)
3.6 Adjusting the Image
The most commonly used options for image adjustments are accessed through the following 2 Main menu
options:
• Size and Position
•Image Settings
From either of these two menus, you can change settings affecting the image from the current channel by
working with the appropriate slidebars, check boxes, and drop-down lists.
Pressing
EXIT returns you to the previous menu (or to the presentation, if...

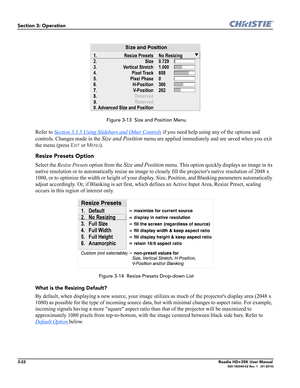

3-22Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
 Figure 3-13  Size and Position Menu
Refer to Section 3.5.5 Using Slidebars and Other Controls if you need help using any of the options and
controls. Changes made in the
Size and Position menu are applied immediately and are saved when you exit
the menu (press
EXIT or MENU).
Resize Presets Option
Select the Resize Presets option from the Size and Position menu. This option quickly displays an image in its
native...

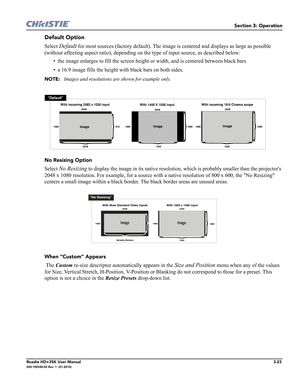

Section 3: Operation
Roadie HD+35K User Manual3-23020-100340-02 Rev. 1  (01-2010)
Default Option
Select Default for most sources (factory default). The image is centered and displays as large as possible
(without affecting aspect ratio), depending on the type of input source, as described below:
• the image enlarges to fill the screen height or width, and is centered between black bars
• a 16:9 image fills the height with black bars on both sides.
NOTE: Images and resolutions are shown for example...

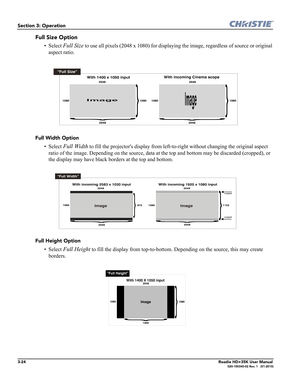

3-24Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
Full Size Option
• Select Full Size to use all pixels (2048 x 1080) for displaying the image, regardless of source or original
aspect ratio.
Full Width Option
• Select Full Width to fill the projectors display from left-to-right without changing the original aspect
ratio of the image. Depending on the source, data at the top and bottom may be discarded (cropped), or
the display may have black borders at the top and...
