S-56 Station-Controlled Conference - CCIS
Programming
ASHP- Assign a Pilot hunting group using eight of the PA-16LCBE line circuits. These ports are
connected to an external conference unit, MMCB Model 37008. Make sure that SFI 4 is denied to the
conference stations.

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1019
Station-to-Station Calling - CCIS S-57
S-57  Station-to-Station Calling - CCIS
General Description
This feature allows any user to dial another station directly, through CCIS, without operator assistance.
Operating Procedure
1. Lift the handset; receive dial tone.
2. Dial the desired telephone number.
Service Conditions
1. The maximum number of digits per telephone number is eight.
2. Either Calling-Party Release or First-Party Release...

NEAX2400 IPX Feature Programming ManualPage 1020NDA-24297, Issue 1
S-58 Station-to-Station Calling - Operator Assistance - CCIS
S-58  Station-to-Station Calling - Operator Assistance
- CCIS
General Description
This feature allows a user to call another station, through CCIS, with the assistance of the Attendant Console
operator.
Operating Procedure
To place a station-to-station call through the Attendant Console
1. Lift the handset; receive dial tone.
2. Dial the operator access code (normally“0”).
3....

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1021
Step Call - CCIS S-59
S-59  Step Call - CCIS
General Description
This service feature allows Inter-Office Step Call when the calling station and the called station belong to different
PBX’s in the CCIS network.
Operating Procedure

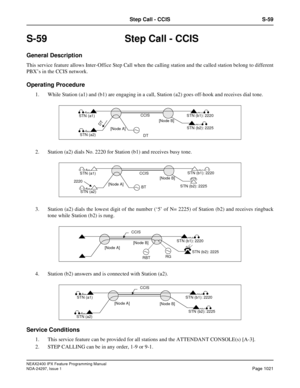

1. While Station (a1) and (b1) are engaging in a call, Station (a2) goes off-hook and receives dial tone.
2. Station (a2) dials No. 2220 for Station (b1) and receives busy tone.
3. Station (a2) dials the lowest...

NEAX2400 IPX Feature Programming ManualPage 1022NDA-24297, Issue 1
S-59 Step Call - CCIS
Service Conditions (cont’d)
3. If the second selected station is also busy, STEP CALLING can continue until a station rings.
4. If a station is set for any type of CALL FORWARDING-ALL CALLS, BUSY LINE, DON’T ANSWER,
the CALL FORWARDING [C-2, C-3, C-5] will take effect.
Programming
ASYD- System 1, Index 68, Bit 0: SHF method (Step Call becomes effective).

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1023
Synchronous Data Switching - CCIS S-60
S-60  Synchronous Data Switching - CCIS
General Description
This feature allows a synchronous data terminal connected to a Dterm/Data Adapter to call a synchronous data
terminal connected to a synchronous Dterm/Data Adapter through the CCIS network.
Operating Procedure

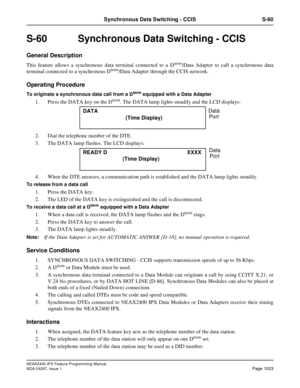

To originate a synchronous data call from a Dterm equipped with a Data Adapter
1. Press the DATA key on the Dterm. The DATA lamp...

NEAX2400 IPX Feature Programming ManualPage 1024NDA-24297, Issue 1
S-60 Synchronous Data Switching - CCIS
Interactions (cont’d)
4. For greater detail, refer to ETI: 010, DtermIV, V Asynchronous Data Adapter - Installation and
Programming.
5. Switched Synchronous Communication Using The DT-003 Data Module:
Typically, switched (dialed) synchronous connections are attached to computers using Half Duplex
protocols. In most cases where a Half Duplex protocol is used, the DM has to be set for Full Duplex (via...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1025
Synchronous Data Switching - CCIS S-60
Interactions (cont’d)
Setting Attributes 02, 03, & 10 Via DTE Keyboard:
a.) Cable connections and switch settings on the PA-4DTLA card must be performed before these
attributes are set.
b.) Voice and data must both be idle. Turn OFF power to the Data Module. Move the SW3 switch to
the right (ON), then turn power back ON. The Data Module will enter Menu Mode.
c.) The initial menu will appear on the...

NEAX2400 IPX Feature Programming ManualPage 1026NDA-24297, Issue 1
S-60 Synchronous Data Switching - CCIS
Programming (cont’d)
RING: Type of Ringing (0-3
KYN: Key Number (1-40)
KYI: Service Index
0: Key Not Used
1: Feature Key
2: Multi-line Key
KD: Assign as 0.
FKY: Feature Key Number
The feature keys, DATA TRANSFER DTX (FKY = 31), DATA (FKY = 29) must be assigned.
DISPLAY/AUTO (FKY = 30) is optional.
STEP 3:ASFC- for TEC = 13 stations, construct an SFC in which SFI 11 = 0 for DATA LINE SECURITY.
STEP...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1027
Synchronous Data Switching - CCIS S-60
Programming (cont’d)
The following parameters will be displayed. Assign attribute data according to the following table:
NO. PARAMETER DISPLAY DATA DESCRIPTION
00 DTR ER Check00 DTR Check Necessary
01 DTR Check Not Necessary
01 AUT Auto Answer00 Manual Response
01 Auto Response
02 MDM No. 1 OG Modem00 Delete MDM Group No.
01-15 OG Modem Group No.
03 MDM No. 2 IC Modem00 Delete MDM Group No.
01-15 IC...
