O-11 Off-Hook Queuing - CCIS
Interactions (cont’d)
6. The following features cannot be activated toward the busy station:
CALL WAITING-ORIGINATING [C-31]
CALL WAITING-TERMINATING [C-12]
ATTENDANT CAMP-ON WITH TONE INDICATION [A-1, 45]
BUSY VERIFICATION [B-3, 9]
EXECUTIVE RIGHT-OF-WAY [E-1, 8]
7. To disable constant service set tone, change ASYD System Data 1, Index 42 Bit 7 to data“1”.This
changes constant service set tone to burst special...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 999
Outgoing Trunk Queuing - CCIS O-12
O-12  Outgoing Trunk Queuing - CCIS
General Description
This service feature allows Inter-Office, On-Hook OUTGOING TRUNK QUEUING (OGQ) when an outgoing
C.O. line call from a station in a PBX to another station in a different PBX, in the CCIS network, encounters an all
C.O. Lines Busy.
Operating Procedure
1. Station (b) goes off-hook; receives dial tone.
2. Station (b) dials the C. O. Line Outgoing Call...

NEAX2400 IPX Feature Programming ManualPage 1000NDA-24297, Issue 1
O-12 Outgoing Trunk Queuing - CCIS
Operating Procedure (cont’d)

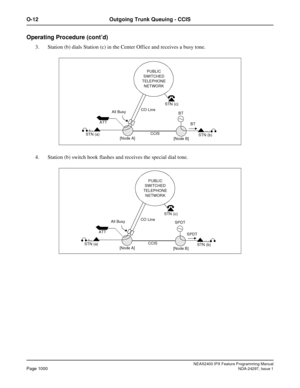

3. Station (b) dials Station (c) in the Center Office and receives a busy tone.
4. Station (b) switch hook flashes and receives the special dial tone.
STN (c)
CO Line
STN (a)All Busy
ATT
[Node A]CCIS
[Node B]STN (b) BT BT
PUBLIC
SWITCHED
TELEPHONE
NETWORK
STN (c)
CO Line
STN (a)All Busy
ATT
[Node A]CCIS
[Node B]STN (b) SPDT SPDT
PUBLIC
SWITCHED
TELEPHONE
NETWORK

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1001
Outgoing Trunk Queuing - CCIS O-12
Operating Procedure (cont’d)

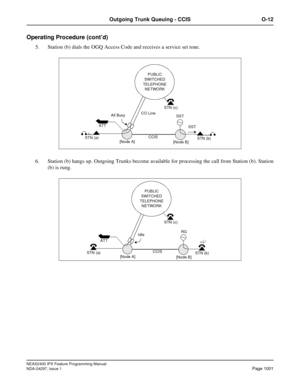

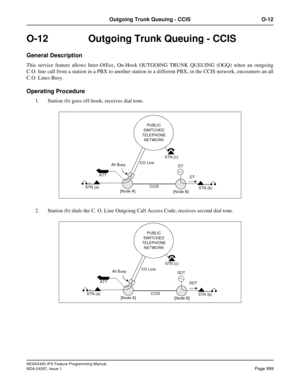

5. Station (b) dials the OGQ Access Code and receives a service set tone.
6. Station (b) hangs up. Outgoing Trunks become available for processing the call from Station (b). Station
(b) is rung.
STN (c)
CO Line
STN (a)All Busy
ATT
[Node A]CCIS
[Node B]STN (b) SST SST
PUBLIC
SWITCHED
TELEPHONE
NETWORK
STN (c)
RG
Idle
STN (a)ATT
[Node A]CCIS
[Node B]STN (b)
PUBLIC
SWITCHED...

NEAX2400 IPX Feature Programming ManualPage 1002NDA-24297, Issue 1
O-12 Outgoing Trunk Queuing - CCIS
Operating Procedure (cont’d)

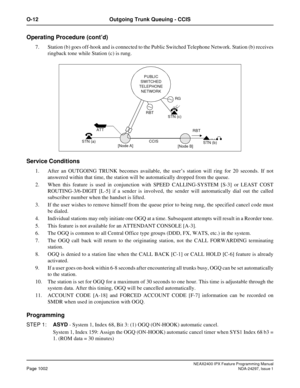

7. Station (b) goes off-hook and is connected to the Public Switched Telephone Network. Station (b) receives
ringback tone while Station (c) is rung.
Service Conditions
1. After an OUTGOING TRUNK becomes available, the user’s station will ring for 20 seconds. If not
answered within that time, the station will be automatically dropped from the queue.
2. When this feature is...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1003
Outgoing Trunk Queuing - CCIS O-12
Programming (cont’d)
System 2, Index 4, Bit 0: Call Back and OG Trunk Queuing access code. 0/1 = Separate/Common.
Bit 1: Automatic setting of OG Trunk Queuing by On-Hook. 0/1 = Not Required/Required.
Note:0=SHF+AccessCode.
System 3, Index 3, Bit 5: 3-Burst on the time above Ringer Patter. 0/1 = Not Required/Required.
System 3, Index 7: Assign OGQ Ring Back Pattern.
STEP 2:ANPD- Assign minimum necessary...

NEAX2400 IPX Feature Programming ManualPage 1004NDA-24297, Issue 1
P-28 Paging Access - CCIS
P-28  Paging Access - CCIS
General Description
This feature provides dial access to paging equipment from an ATTENDANT CONSOLE [A-3] or station through
the CCIS network.
Operating Procedure
To access Paging through CCIS
1. Lift the handset and receive dial tone.
2. Dial the office code and the Paging access code.
3. Connection to paging equipment is established.
Service Conditions
1. Paging equipment must be...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1005
Paging Access - CCIS P-28
Interactions (cont’d)
10. BUSY is displayed on the 16-button DtermLCD display when the paging trunk is busy. Reorder tone is
returned.
11. If Priority Page is to be used with PAGE ACCESS; in ARTD, CDN 6:TCL must be assigned as Data 8,
Page with ringback tone. SYS1, Index 73 affects the operation of page routes assigned Page with ringback
tone. Therefore, if Priority Page is used with PAGE ACCESS then MEET ME...

NEAX2400 IPX Feature Programming ManualPage 1006NDA-24297, Issue 1
R-22 Restriction from Outgoing Calls - CCIS
R-22  Restriction from Outgoing Calls - CCIS
General Description
This feature automatically restricts preselected stations from placing certain outgoing calls through CCIS without
Attendant assistance.
Operating Procedure
No manual operation is required. Restricted stations will receive reorder tone when trying to place a restricted call.
Service Conditions
1. This feature is programmed in...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1007
Restriction from Outgoing Calls - CCIS R-22
Interactions (cont’d)
4. THREE-WAY CALLING [T-2]: Station A cannot include restricted Station B in a THREE-WAY
CALLING connection with Route 1.
5. DAY/NIGHT CLASS OF SERVICE [D-15]: Restricted Station B may be allowed access to Route 1 when
the system is placed in the Night mode. See DAY/NIGHT CLASS OF SERVICE[D-15].
6. RESTRICTION FROM OUTGOING CALLS are constructed on a per-route restriction...
