S-52 Serial Call - CCIS
S-52  Serial Call - CCIS
General Description
This service feature is the Inter-Office serial call service to be provided when the ATTCON and the called party
respectively, belong to a different PBX (Main PBX Satellite PBX) in the CCIS network.
Operating Procedure
1. Station (c) in the Public Switched Telephone Network places a call to Node A and receives ringback tone.
The Attendant in Node A receives an audible...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1009
Serial Call - CCIS S-52
Operating Procedure (cont’d)
3. The Attendant dials Station (b1) in Node B; receives ringback tone. Station (b1) is rung and Station (c)
receives Hold Tone.
4. The Attendant presses the Serial Call (SC) key and Station (c) receives ringback tone. The HOLD and
RING status are shown on the Attendant Console.

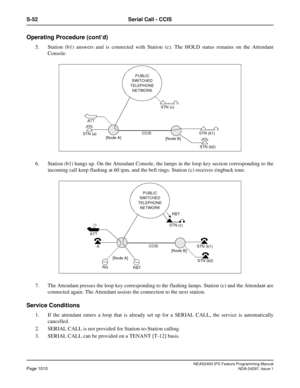

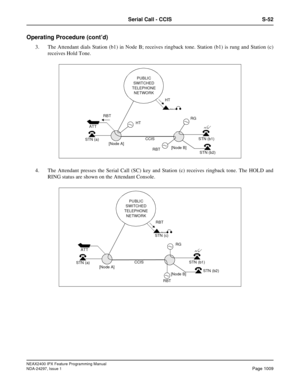

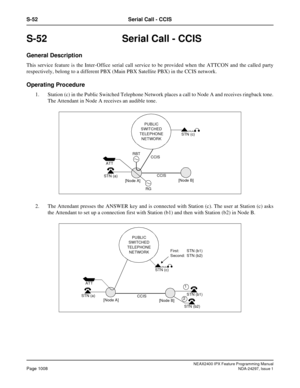

STN (a)ATT
[Node A]CCIS
[Node B]STN (b1)
STN (b2) RBTHT
RG
HT
RBT
PUBLIC
SWITCHED
TELEPHONE
NETWORK
RBT...

NEAX2400 IPX Feature Programming ManualPage 1010NDA-24297, Issue 1
S-52 Serial Call - CCIS
Operating Procedure (cont’d)
5. Station (b1) answers and is connected with Station (c). The HOLD status remains on the Attendant
Console.
6. Station (b1) hangs up. On the Attendant Console, the lamps in the loop key section corresponding to the
incoming call keep flashing at 60 ipm, and the bell rings. Station (c) receives ringback tone.
7. The Attendant presses the loop key corresponding to the flashing lamps....

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1011
Serial Call - CCIS S-52
Service Conditions (cont’d)
4. A called station that has the SERIAL CALL feature activated will automatically recall the attendant if the
station switch hook flashes.
5. This feature is not applicable for tandem connections.
6. The following services cannot be used while SERIAL CALL - CCIS is activated:
ATTENDANT CAMP-ON WITH TONE INDICATION - CCIS [A-45]
BUSY VERIFICATION - CCIS [B-9]
CALL HOLD - CCIS / CALL HOLD...

NEAX2400 IPX Feature Programming ManualPage 1012NDA-24297, Issue 1
S-53D Service Display - Dterm- CCIS
S-53D  Service Display - Dterm - CCIS
General Description
This feature allows a Dtermuser to receive LCD displays corresponding to the various features as they are initiated.
Operating Procedure
Each display is automatically generated when a service feature is initiated.
Service Conditions
1. Each display is controlled by system data and is produced accordingly. A display may be allowed or
denied in...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1013
Simultaneous Voice and Data Transmission - CCIS S-54
S-54  Simultaneous Voice and Data Transmission -
CCIS
General Description
This feature allows a voice signal and a digital data signal of up to 56 Kbps to be transmitted simultaneously through
CCIS,viaaDtermequipped with a Data Adapter. Voice and data calls can be placed to different locations.
Operating Procedure
To place a data call to a terminal already connected by a voice call
1....

NEAX2400 IPX Feature Programming ManualPage 1014NDA-24297, Issue 1
S-54 Simultaneous Voice and Data Transmission - CCIS
Service Conditions (cont’d)
4. If the DtermDTX button is pressed when connected station-to-station within the CCIS network, the voice
line connection is switched to MODEM POOLING - CCIS [M-39] from the DtermData line.
Interactions
1. It is recommended that the numbering plan be set up so that voice numbers occupy one level and data
levels occupy another. Therefore, a voice number of 310...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1015
Simultaneous Voice and Data Transmission - CCIS S-54
Programming (cont’d)
19: TMM
20: PSM
23: ISDN Terminal
27: Eight Conference Equipment
RSC: Route Restriction Class (0-15).
For assignment of RSC, ARSC command.
SFC: Service Feature Class (0-15)
For assignment of SFC, ASFC command.
STEP 3:ANPD- Reserve a number level for station access. Assign for Normal (N), Hooking (H) and Busy (B).
Assign NND in accordance with a predetermined...

NEAX2400 IPX Feature Programming ManualPage 1016NDA-24297, Issue 1
S-55 Single-Digit Station Calling - CCIS
S-55  Single-Digit Station Calling - CCIS
General Description
This feature allows single-digit station numbers to be assigned.
Operating Procedure
1. Lift the handset; receive dial tone,
2. Dial the single-digit station code,
3. The called station will ring.
Service Conditions
1. The single-digit number must not duplicate the first digit of:
a.) Trunk Access Codes
b.) Feature Access Codes
c.)...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 1017
Station-Controlled Conference - CCIS S-56
S-56  Station-Controlled Conference - CCIS
General Description
This feature allows any PBX station to establish a conference through CCIS. The conference can be any combination
of stations and trunks (on-network and off-network parties).
Operating Procedure
To establish a conference call
1. The user wishing to establish the conference (Conference Leader) calls each party to be included and...
