NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 6
Page 173
Revision 1.0

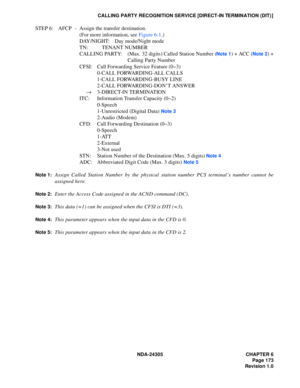

CALLING PARTY RECOGNITION SERVICE [DIRECT-IN TERMINATION (DIT) ]
STEP 6: AFCP  - Assign the transfer destination.
(For more information, see Figure 6-1.)
DAY/NIGHT: Day mode/Night mode
TN: TENANT NUMBER
CALLING PARTY:  (Max. 32 digits) Called Station Number (
Note 1) + ACC (Note 2) +
Calling Party Number
CFSI: Call Forwarding Service Feature (0~3)
0-CALL FORWARDING-ALL CALLS
1-CALL FORWARDING-BUSY LINE
2-CALL FORWARDING-DON’T ANSWER
 →3-DIRECT-IN TERMINATION
ITC:...

CHAPTER 6 NDA-24305
Pag e 1 74
Revision 1.0
CALLING PARTY RECOGNITION SERVICE [DIRECT-IN TERMINATION (DIT) ]

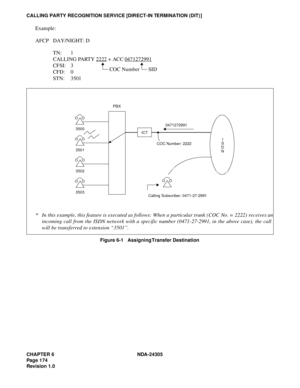

Example:
AFCP DAY/NIGHT: D
TN: 1
CALLING PARTY 2222
 + ACC 0471272991
CFSI: 3
CFD: 0
STN: 3501
Figure 6-1   Assigning Transfer Destination
COC NumberSID
PBX
ICT
3500
I
S
D
N
Calling Subscriber: 0471-27-2991
3501
3502
3503
0471272991
COC Numbe r: 2222
*In this example, this feature is executed as follows: When a particular trunk (COC No. = 2222) receives an
incoming call from the ISDN network with...

NDA-24305 CHAPTER 6
Page 175
Revision 1.0

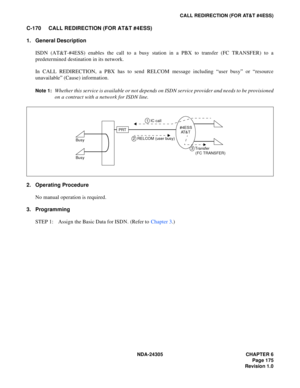

CALL REDIRECTION (FOR AT&T #4ESS)
C-170 CALL REDIRECTION (FOR AT&T #4ESS)
1. General Description
ISDN (AT&T-#4ESS) enables the call to a busy station in a PBX to transfer (FC TRANSFER) to a
predetermined destination in its network.
In CALL REDIRECTION, a PBX has to send RELCOM message including “user busy” or “resource
unavailable” (Cause) information.
Note 1:Whether this service is available or not depends on ISDN service provider and needs to be provisioned
on...

CHAPTER 6 NDA-24305
Pag e 1 76
Revision 1.0

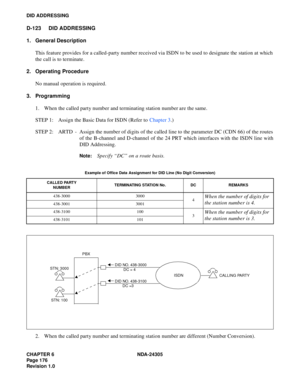

DID ADDRESSING
D-123 DID ADDRESSING
1. General Description
This feature provides for a called-party number received via ISDN to be used to designate the station at which
the call is to terminate.
2. Operating Procedure
No manual operation is required.
3. Programming
1. When the called party number and terminating station number are the same.
STEP 1: Assign the Basic Data for ISDN (Refer to Chapter 3.)
STEP 2: ARTD - Assign the number of digits of the called...

NDA-24305 CHAPTER 6
Page 177
Revision 1.0

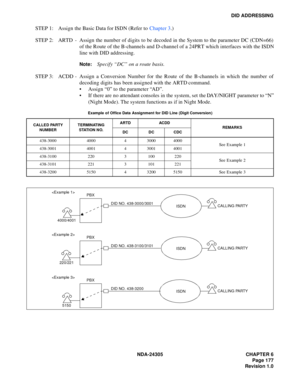

DID ADDRESSING
STEP 1: Assign the Basic Data for ISDN (Refer to Chapter 3.)
STEP 2: ARTD - Assign the number of digits to be decoded in the System to the parameter DC (CDN=66)
of the Route of the B-channels and D-channel of a 24PRT which interfaces with the ISDN
line with DID addressing.
Note:Specify “DC” on a route basis.
STEP 3: ACDD - Assign a Conversion Number for the Route of the B-channels in which the number of
decoding digits has been assigned with the...

CHAPTER 6 NDA-24305
Pag e 1 78
Revision 1.0

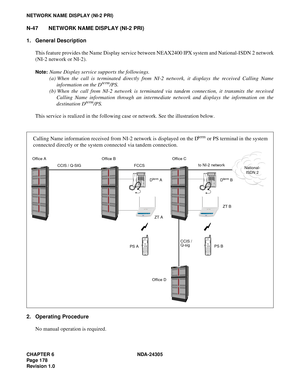

NETWORK NAME DISPLAY (NI-2 PRI)
N-47 NETWORK NAME DISPLAY (NI-2 PRI)
1. General Description
This feature provides the Name Display service between NEAX2400 IPX system and National-ISDN 2 network
(NI-2 network or NI-2).
Note:Name Display service supports the followings.
(a) When the call is terminated directly from NI-2 network, it displays the received Calling Name
information on the D
term/PS.
(b) When the call from NI-2 network is terminated via tandem...

NDA-24305 CHAPTER 6
Page 179
Revision 1.0

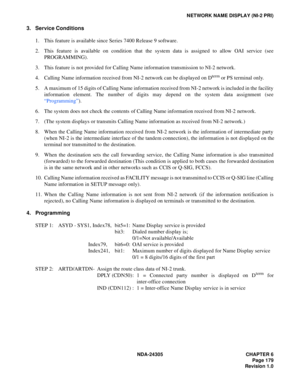

NETWORK NAME DISPLAY (NI-2 PRI)
3. Service Conditions
1. This feature is available since Series 7400 Release 9 software.
2. This feature is available on condition that the system data is assigned to allow OAI service (see
PROGRAMMING).
3. This feature is not provided for Calling Name information transmission to NI-2 network.
4. Calling Name information received from NI-2 network can be displayed on D
term or PS terminal only.
5. A maximum of 15 digits of Calling...

CHAPTER 6 NDA-24305
Pag e 1 80
Revision 1.0

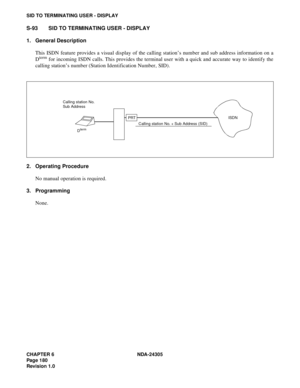

SID TO TERMINATING USER - DISPLAY
S-93 SID TO TERMINATING USER - DISPLAY
1. General Description
This ISDN feature provides a visual display of the calling station’s number and sub address information on a
D
term for incoming ISDN calls. This provides the terminal user with a quick and accurate way to identify the
calling station’s number (Station Identification Number, SID).
2. Operating Procedure
No manual operation is required.
3. Programming
None.
Calling...

NDA-24305 CHAPTER 6
Page 181
Revision 1.0

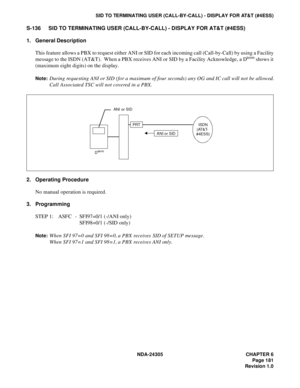

SID TO TERMINATING USER (CALL-BY-CALL) - DISPLAY FOR AT&T (#4ESS)
S-136 SID TO TERMINATING USER (CALL-BY-CALL) - DISPLAY FOR AT&T (#4ESS)
1. General Description
This feature allows a PBX to request either ANI or SID for each incoming call (Call-by-Call) by using a Facility
message to the ISDN (AT&T).  When a PBX receives ANI or SID by a Facility Acknowledge, a D
term shows it
(maximum eight digits) on the display.
Note:During requesting ANI or SID (for a maximum...

CHAPTER 6 NDA-24305
Pag e 1 82
Revision 1.0

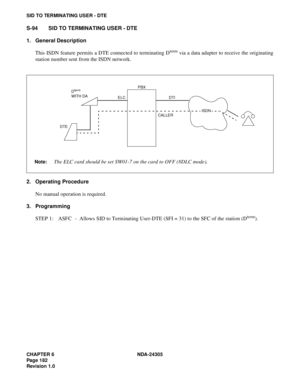

SID TO TERMINATING USER - DTE
S-94 SID TO TERMINATING USER - DTE
1. General Description
This ISDN feature permits a DTE connected to terminating D
term via a data adapter to receive the originating
station number sent from the ISDN network.
2. Operating Procedure
No manual operation is required.
3. Programming
STEP 1: ASFC  - Allows SID to Terminating User-DTE (SFI = 31) to the SFC of the station (D
term).
PBXDter m
WITH DA
DTEELC DTI
CALLER
Note:The ELC card...
