NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 6
Page 183
Revision 1.0

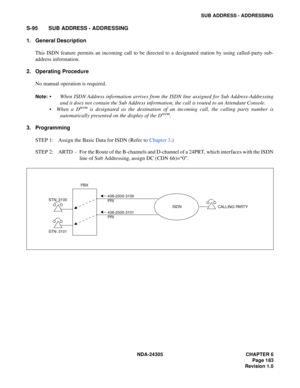

SUB ADDRESS - ADDRESSING
S-95 SUB ADDRESS - ADDRESSING
1. General Description
This ISDN feature permits an incoming call to be directed to a designated station by using called-party sub-
address information.
2. Operating Procedure
No manual operation is required.
Note: When ISDN Address information arrives from the ISDN line assigned for Sub Address-Addressing
and it does not contain the Sub Address information, the call is routed to an Attendant Console.
 When...

CHAPTER 6 NDA-24305
Pag e 1 84
Revision 1.0

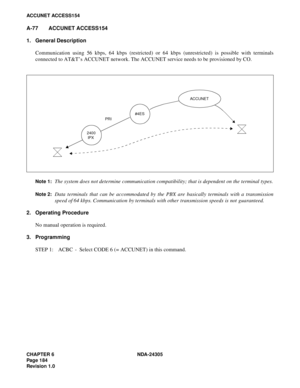

ACCUNET ACCESS154
A-77 ACCUNET ACCESS154
1. General Description
Communication using 56 kbps, 64 kbps (restricted) or 64 kbps (unrestricted) is possible with terminals
connected to AT&T’s ACCUNET network. The ACCUNET service needs to be provisioned by CO.
Note 1:The system does not determine communication compatibility; that is dependent on the terminal types.
Note 2:Data terminals that can be accommodated by the PBX are basically terminals with a transmission...

NDA-24305 CHAPTER 6
Page 185
Revision 1.0

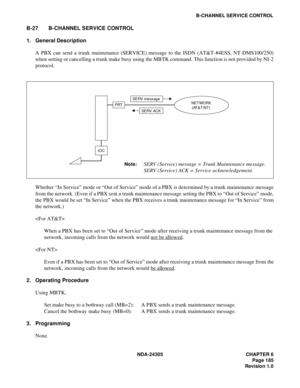

B-CHANNEL SERVICE CONTROL
B-27 B-CHANNEL SERVICE CONTROL
1. General Description
A PBX can send a trunk maintenance (SERVICE) message to the ISDN (AT&T-#4ESS, NT-DMS100/250)
when setting or cancelling a trunk make busy using the MBTK command. This function is not provided by NI-2
protocol.
Whether “In Service” mode or “Out of Service” mode of a PBX is determined by a trunk maintenance message
from the network. (Even if a PBX sent a trunk maintenance message...

CHAPTER 6 NDA-24305
Pag e 1 86
Revision 1.0

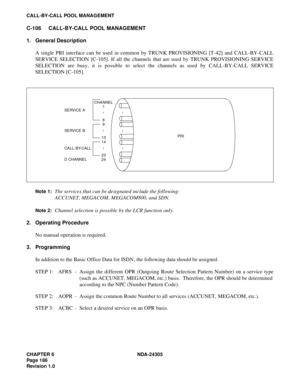

CALL-BY-CALL POOL MANAGEMENT
C-106 CALL-BY-CALL POOL MANAGEMENT
1. General Description
A single PRI interface can be used in common by TRUNK PROVISIONING [T-42] and CALL-BY-CALL
SERVICE SELECTION [C-105]. If all the channels that are used by TRUNK PROVISIONING SERVICE
SELECTION are busy, it is possible to select the channels as used by CALL-BY-CALL SERVICE
SELECTION [C-105].
Note 1:The services that can be designated include the following:
ACCUNET, MEGACOM,...

NDA-24305 CHAPTER 6
Page 187
Revision 1.0

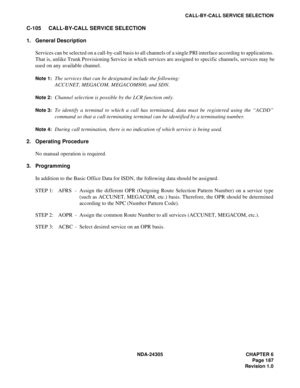

CALL-BY-CALL SERVICE SELECTION
C-105 CALL-BY-CALL SERVICE SELECTION
1. General Description
Services can be selected on a call-by-call basis to all channels of a single PRI interface according to applications.
That is, unlike Trunk Provisioning Service in which services are assigned to specific channels, services may be
used on any available channel.
Note 1:The services that can be designated include the following:
ACCUNET, MEGACOM, MEGACOM800, and SDN.
Note...

CHAPTER 6 NDA-24305
Pag e 1 88
Revision 1.0

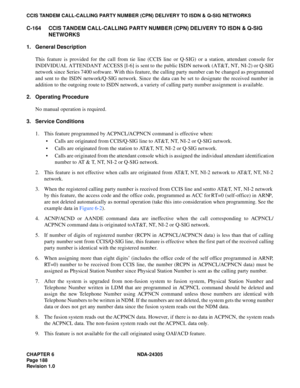

CCIS TANDEM CALL-CALLING PARTY NUMBER (CPN) DELIVERY TO ISDN & Q-SIG NETWORKS
C-164 CCIS TANDEM CALL-CALLING PARTY NUMBER (CPN) DELIVERY TO ISDN & Q-SIG
NETWORKS
1. General Description
This feature is provided for the call from tie line (CCIS line or Q-SIG) or a station, attendant console for
INDIVIDUAL ATTENDANT ACCESS [I-6] is sent to the public ISDN network (AT&T, NT, NI-2) or Q-SIG
network since Series 7400 software. With this feature, the calling party...

NDA-24305 CHAPTER 6
Page 189
Revision 1.0

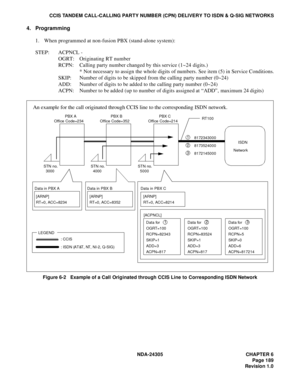

CCIS TANDEM CALL-CALLING PARTY NUMBER (CPN) DELIVERY TO ISDN & Q-SIG NETWORKS
4. Programming
1. When programmed at non-fusion PBX (stand-alone system):
STEP: ACPNCL -
OGRT: Originating RT number
RCPN: Calling party number changed by this service (1~24 digits.)
        * Not necessary to assign the whole digits of numbers. See item (5) in Service Conditions.
SKIP:  Number of digits to be skipped from the calling party number (0~24)
ADD:  Number of digits to be...

CHAPTER 6 NDA-24305
Pag e 1 90
Revision 1.0

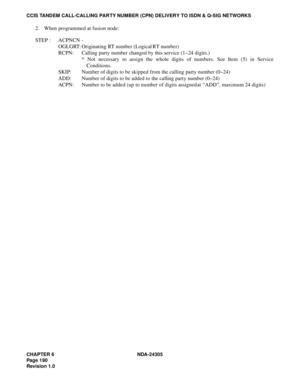

CCIS TANDEM CALL-CALLING PARTY NUMBER (CPN) DELIVERY TO ISDN & Q-SIG NETWORKS
2. When programmed at fusion node:
STEP : ACPNCN -
OGLGRT: Originating RT number (Logical RT number)
RCPN: Calling party number changed by this service (1~24 digits.)
* Not necessary to assign the whole digits of numbers. See Item (5) in Service
Conditions.
SKIP:  Number of digits to be skipped from the calling party number (0~24)
ADD: Number of digits to be added to the calling...

NDA-24305 CHAPTER 6
Page 191
Revision 1.0

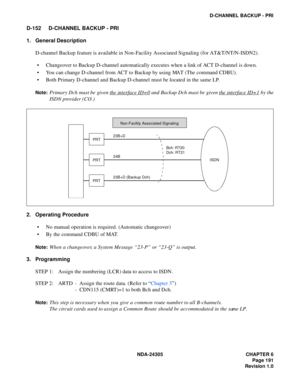

D-CHANNEL BACKUP - PRI
D-152 D-CHANNEL BACKUP - PRI
1. General Description
D-channel Backup feature is available in Non-Facility Associated Signaling (for AT&T/NT/N-ISDN2).
 Changeover to Backup D-channel automatically executes when a link of ACT D-channel is down.
 You can change D-channel from ACT to Backup by using MAT (The command CDBU).
 Both Primary D-channel and Backup D-channel must be located in the same LP.
Note:Primary Dch must be given the...

CHAPTER 6 NDA-24305
Pag e 1 92
Revision 1.0

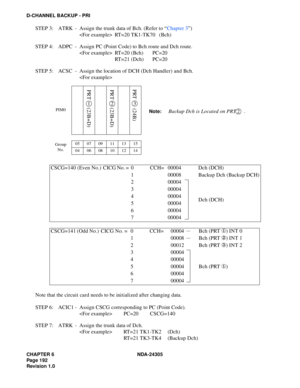

D-CHANNEL BACKUP - PRI
STEP 3: ATRK - Assign the trunk data of Bch. (Refer to “Chapter 3”)
 RT=20 TK1-TK70 (Bch)
STEP 4: ADPC - Assign PC (Point Code) to Bch route and Dch route.
 RT=20 (Bch) PC=20
RT=21 (Dch) PC=20
STEP 5: ACSC - Assign the location of DCH (Dch Handler) and Bch.

Note that the circuit card needs to be initialized after changing data.
STEP 6: ACIC1 - Assign CSCG corresponding to PC (Point Code).
 PC=20 CSCG=140
STEP 7: ATRK - Assign the trunk...
