D-CHANNEL BACKUP - PRI

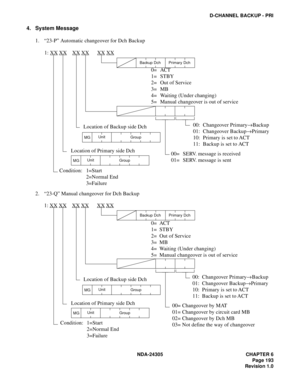

4. System Message
1. “23-P” Automatic changeover for Dch Backup
2. “23-Q” Manual changeover for Dch Backup
MG
Backup DchPrimary Dch
Group Unit
MGGroup Unit
Location of Backup side Dch
Location of Primary side Dch
0= ACT
1= STBY
2= Out of Service
3= MB
4= Waiting (Under changing)
5= Manual changeover is out of service
00: Changeover Primary→Backup
01: Changeover Backup→Primary
10: Primary is set to ACT
11: Backup is set to ACT
00= SERV....

CHAPTER 6 NDA-24305
Pag e 1 94
Revision 1.0
MEGACOM ACCESS

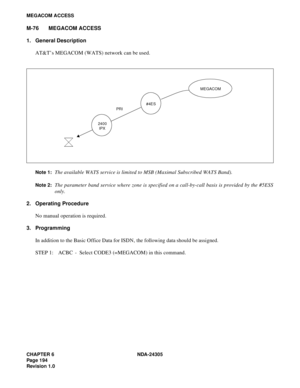

M-76 MEGACOM ACCESS
1. General Description
AT&T’s MEGACOM (WATS) network can be used.
Note 1:The available WATS service is limited to MSB (Maximal Subscribed WATS Band).
Note 2:The parameter band service where zone is specified on a call-by-call basis is provided by the #5ESS
only.
2. Operating Procedure
No manual operation is required.
3. Programming
In addition to the Basic Office Data for ISDN, the following data should be assigned.
STEP 1:...

NDA-24305 CHAPTER 6
Page 195
Revision 1.0
MEGACOM800 SERVICE

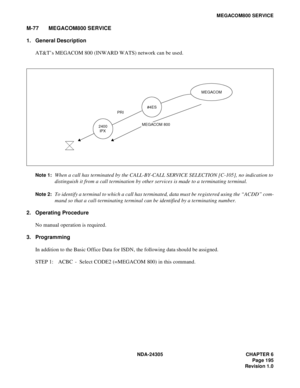

M-77 MEGACOM800 SERVICE
1. General Description
AT&T’s MEGACOM 800 (INWARD WATS) network can be used.
Note 1:When a call has terminated by the CALL-BY-CALL SERVICE SELECTION [C-105], no indication to
distinguish it from a call termination by other services is made to a terminating terminal.
Note 2:To identify a terminal to which a call has terminated, data must be registered using the “ACDD” com-
mand so that a call-terminating terminal can be...

CHAPTER 6 NDA-24305
Pag e 1 96
Revision 1.0
NON-FACILITY ASSOCIATED SIGNALING - PRI

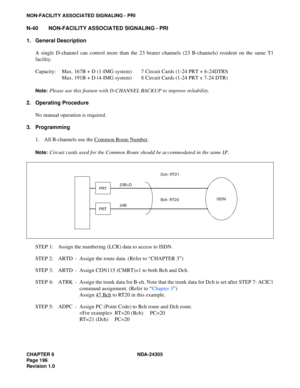

N-40 NON-FACILITY ASSOCIATED SIGNALING - PRI
1. General Description
A single D-channel can control more than the 23 bearer channels (23 B-channels) resident on the same T1
facility.
Capacity: Max. 167B + D (1-IMG system) 7 Circuit Cards (1-24 PRT + 6-24DTRS
Max. 191B + D (4-IMG system) 8 Circuit Cards (1-24 PRT x 7-24 DTR)
Note:Please use this feature with D-CHANNEL BACKUP to improve reliability.
2. Operating Procedure
No...

NDA-24305 CHAPTER 6
Page 197
Revision 1.0
NON-FACILITY ASSOCIATED SIGNALING - PRI

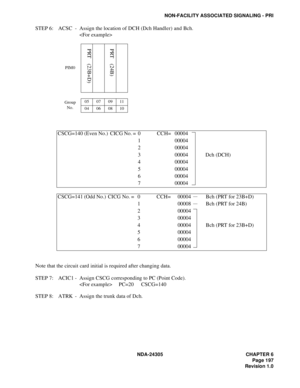

STEP 6: ACSC - Assign the location of DCH (Dch Handler) and Bch.

Note that the circuit card initial is required after changing data.
STEP 7: ACIC1 - Assign CSCG corresponding to PC (Point Code).
 PC=20 CSCG=140
STEP 8: ATRK - Assign the trunk data of Dch.
PIM0
Group
No.05 07 09 11
04 06 08 10
CSCG=140 (Even No.) CICG No. = 0 CCH= 00004
1 00004
2 00004
3 00004 Dch (DCH)
4 00004
5 00004
6 00004
7 00004
CSCG=141 (Odd No.)...

CHAPTER 6 NDA-24305
Pag e 1 98
Revision 1.0
NON-FACILITY ASSOCIATED SIGNALING - PRI

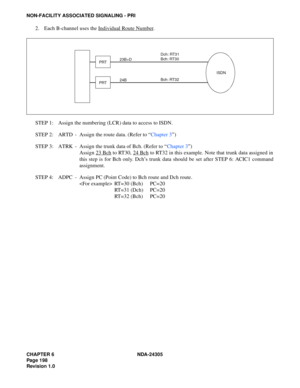

2. Each B-channel uses the Individual Route Number.
STEP 1: Assign the numbering (LCR) data to access to ISDN.
STEP 2: ARTD - Assign the route data. (Refer to “Chapter 3”)
STEP 3: ATRK - Assign the trunk data of Bch. (Refer to “Chapter 3”)
Assign 23 Bch
 to RT30, 24 Bch to RT32 in this example. Note that trunk data assigned in
this step is for Bch only. Dch’s trunk data should be set after STEP 6: ACIC1 command...

NDA-24305 CHAPTER 6
Page 199
Revision 1.0
NON-FACILITY ASSOCIATED SIGNALING - PRI

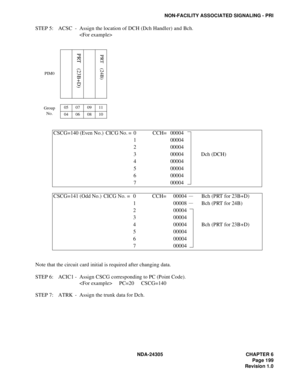

STEP 5: ACSC - Assign the location of DCH (Dch Handler) and Bch.

Note that the circuit card initial is required after changing data.
STEP 6: ACIC1 - Assign CSCG corresponding to PC (Point Code).
 PC=20 CSCG=140
STEP 7: ATRK - Assign the trunk data for Dch.
CSCG=140 (Even No.) CICG No. = 0 CCH= 00004
1 00004
2 00004
3 00004 Dch (DCH)
4 00004
5 00004
6 00004
7 00004
CSCG=141 (Odd No.) CICG No. = 0 CCH= 00004
—Bch (PRT for...

CHAPTER 6 NDA-24305
Pag e 2 00
Revision 1.0
Q-SIG/ISDN INTERNATIONAL GATEWAY SWITCHING

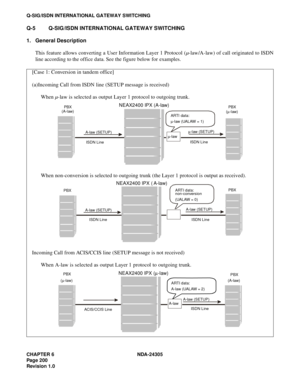

Q-5 Q-SIG/ISDN INTERNATIONAL GATEWAY SWITCHING
1. General Description
This feature allows converting a User Information Layer 1 Protocol (µ-law/A-law) of call originated to ISDN
line according to the office data. See the figure below for examples.
[Case 1: Conversion in tandem office]
(a)Incoming Call from ISDN line (SETUP message is received)
When µ-law is selected as output Layer 1 protocol to outgoing trunk.
When...

NDA-24305 CHAPTER 6
Page 201
Revision 1.0
Q-SIG/ISDN INTERNATIONAL GATEWAY SWITCHING

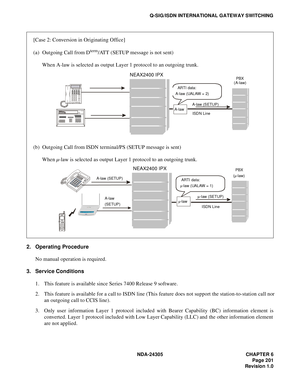

2. Operating Procedure
No manual operation is required.
3. Service Conditions
1. This feature is available since Series 7400 Release 9 software.
2. This feature is available for a call to ISDN line (This feature does not support the station-to-station call nor
an outgoing call to CCIS line).
3. Only user information Layer 1 protocol included with Bearer Capability (BC) information element is
converted. Layer 1 protocol...

CHAPTER 6 NDA-24305
Pag e 2 02
Revision 1.0
Q-SIG/ISDN INTERNATIONAL GATEWAY SWITCHING
4. When the protocol is selected as AUSTRALIA in the route class data (assigned in ARTD, CDN65: INT)
and the coding standard is “00” in BC information element, call in A-law only can be connected (call in µ-
law is disconnected).
5. This feature is activated when SETUP message is sent.
6. This feature is available only when user information Layer 1 protocol is A-law or µ-law (JT-V110/X30 or
JT-X31, etc. cannot be...
