NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 207
Issue 1
AOFC : Assignment of Office Name
4. Data Sheet
OFFICE NAME
MAXIMUM 20 CHARACTERSREMARKS

CHAPTER 4 NDA-24298
Page 208
Issue 1

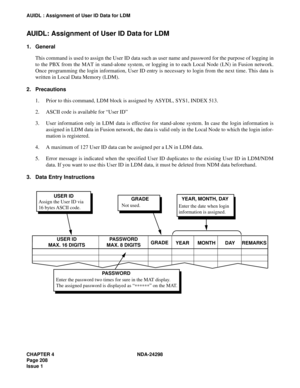

AUIDL : Assignment of User ID Data for LDM
AUIDL: Assignment of User ID Data for LDM
1. General
This command is used to assign the User ID data such as user name and password for the purpose of logging in
to the PBX from the MAT in stand-alone system, or logging in to each Local Node (LN) in Fusion network.
Once programming the login information, User ID entry is necessary to login from the next time. This data is
written in Local Data Memory (LDM).
2. Precautions
1....

NDA-24298 CHAPTER 4
Page 209
Issue 1

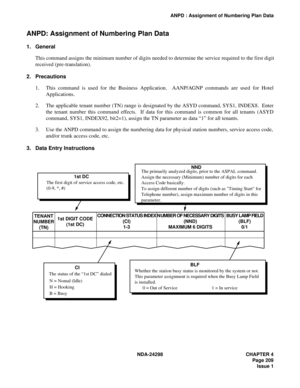

ANPD : Assignment of Numbering Plan Data
ANPD: Assignment of Numbering Plan Data
1. General
This command assigns the minimum number of digits needed to determine the service required to the first digit
received (pre-translation).
2. Precautions
1. This command is used for the Business Application.  AANP/AGNP commands are used for Hotel
Applications.
2. The applicable tenant number (TN) range is designated by the ASYD command, SYS1, INDEX8.  Enter
the tenant number...

CHAPTER 4 NDA-24298
Page 210
Issue 1
ANPD : Assignment of Numbering Plan Data
4. Data Sheet
TENANT
NUMBER
(TN)1ST DIGIT
(1ST DC)CONNECTION
STATUS INDEX
(CI) NUMBER OF
NECESSARY DIGITS
(NND) BUSY LAMP
FIELD
(BLF) REMARKS
1NNormal
H Hooking
BBusy
2NNormal
H Hooking
BBusy
3NNormal
H Hooking
BBusy
4NNormal
H Hooking
BBusy
5NNormal
H Hooking
BBusy
6NNormal
H Hooking
BBusy
7NNormal
H Hooking
BBusy
8NNormal
H Hooking
BBusy
9NNormal
H Hooking
BBusy
0NNormal
H Hooking
BBusy
*NNormal
H Hooking
BBusy...

NDA-24298 CHAPTER 4
Page 211
Issue 1
ANPDL : Assignment of Numbering Plan Data for Local Data Memory
ANPDL: Assignment of Numbering Plan Data for Local Data Memory
1. General
This command assigns the minimum number of digits needed to determine the service which is required to the
first digit received (pre-translation).
2. Precautions
1. This command is used for the Business Application.
2. The applicable tenant number (TN) range is designated by the ASYD command, SYS1, INDEX8.
Enter the tenant number...

CHAPTER 4 NDA-24298
Page 212
Issue 1

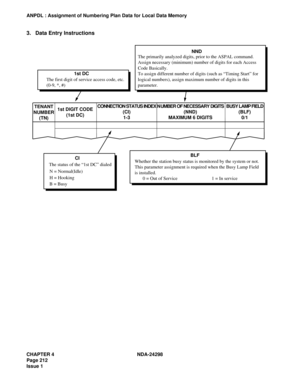

ANPDL : Assignment of Numbering Plan Data for Local Data Memory
3. Data Entry Instructions
The first digit of service access code, etc.
(0-9, *, #)1st DC
CIBLF 1st DIGIT CODE
(1st DC) TENANT
NUMBER
(TN)
Whether the station busy status is monitored by the system or not.
This parameter assignment is required when the Busy Lamp Field
is installed.NND
CONNECTION STATUS INDEX
(CI)
1-3N UMBER OF NECESSARY DIGITS
(NND)
MAXIMUM 6 DIGITSBUSY LAMP FIELD
(BLF)
0/1
N =...

NDA-24298 CHAPTER 4
Page 213
Issue 1
ANPDL : Assignment of Numbering Plan Data for Local Data Memory
4. Data Sheet
TENANT
NUMBER
(TN)1ST DIGIT
(1ST DC)CONNECTION
STATUS INDEX
(CI) NUMBER OF
NECESSARY DIGITS
(NND) BUSY LAMP
FIELD
(BLF) REMARKS
1NNormal
H Hooking
BBusy
2NNormal
H Hooking
BBusy
3NNormal
H Hooking
BBusy
4NNormal
H Hooking
BBusy
5NNormal
H Hooking
BBusy
6NNormal
H Hooking
BBusy
7NNormal
H Hooking
BBusy
8NNormal
H Hooking
BBusy
9NNormal
H Hooking
BBusy
0NNormal
H Hooking
BBusy
*NNormal
H...

CHAPTER 4 NDA-24298
Page 214
Issue 1
ASPA : Assignment of Special Access Code
ASPA:  Assignment of Special Access Code
1. General
This command determines the kind of service and Access Code to execute.
2. Precautions
1. This command is used for the Business Application. AASP/AGSP commands are used for Hotel
Applications.
2. The applicable Tenant Number (TN) range is designated by the ASYD command, SYS1, INDEX8.  Enter
the tenant number which is affected by this command.
If data for this command is common...

NDA-24298 CHAPTER 4
Page 215
Issue 1
ASPA : Assignment of Special Access Code

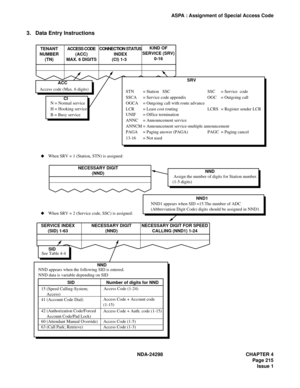

3. Data Entry Instructions
Access code (Max. 6 digits)
 Assign the number of digits for Station number.
(1-5 digits)
15 (Speed Calling-System;
     Access)
42 (Authorization Code/Forced
     Account Code/Pad Lock) 41 (Account Code Dial)
60 (Attendant Manual Override)
63 (Call Park; Retrieve) NND appears when the following SID is entered.
NND data is variable depending on SIDNND1 appears when SID =15.The number of ADC...

CHAPTER 4 NDA-24298
Page 216
Issue 1
ASPA : Assignment of Special Access Code
Note:
When Split Call Forwarding is in service (the command ASYD, SYS1, INDEX79, bit2=1), this access code
is used for Split Call Forwarding service.  The access codes for Call Forwarding service are specified by
SRV=3 (SSCA), SIDA 86-89.
Table 4-4 SID
SID SERVICE NAME SID SERVICE NAME
1 Call Hold 28 Call Forwarding I’m here; Set
2 Dial Access to Attendant (Operator Call) 29 Call Forwarding I’m here; Cancel
3Call Back; Entry/...
