NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 237
Issue 1
ASPAL : Assignment of Special Access Code for LDM
ASPAL:  Assignment of Special Access Code for LDM
1. General
This command determines the kind of service and the service Access Code to be executed on the Local Node
(LN) in the Fusion network.
2. Precautions
1. This command is used for the Business/Hotel (for Admin. station only) Application.
2. Use this command to assign the operator call and the priority call (terminating to ATT) in the FCCS
network.
3. Access Code...

CHAPTER 4 NDA-24298
Page 238
Issue 1
ASPAL : Assignment of Special Access Code for LDM

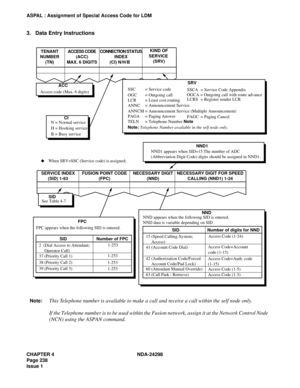

3. Data Entry Instructions
Access code (Max. 6 digits)TENANT
NUMBER
(TN)ACCESS CODE
(ACC)
MAX. 6 DIGITSCONNECTION STATUS
INDEX
(CI) N/H/B  KIND OF
SERVICE
(SRV)
ACC
CISRV
OGCA
LCR
N = Normal service
H = Hooking serviceSSC
OGCSSCA
TELNLCRS
PAGA ANNC
ANNCM
PAGC
B = Busy serviceNote: Telephone Number available in the self node only.
NND1 appears when SID=15.The number of ADC
(Abbreviation Digit Code) digits should be...

NDA-24298 CHAPTER 4
Page 239
Issue 1
ASPAL : Assignment of Special Access Code for LDM
Note 1:
When Split Call Forwarding is in service (the command ASYDN, SYS1, INDEX79, bit2=1), this access code
is used for Split Call Forwarding service.  The access codes for Call Forwarding service are specified by
SRV = SSCA SIDA 86-89.
Note 2:The access code for the services marked * must be assigned with the same number of digit if the access
code begins using the same number. It is not available to assign...

CHAPTER 4 NDA-24298
Page 240
Issue 1
ASPAL : Assignment of Special Access Code for LDM

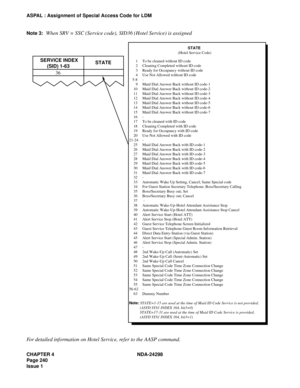

Note 3:
When SRV = SSC (Service code), SID36 (Hotel Service) is assigned
For detailed information on Hotel Service, refer to the AASP command.
         STATE
(Hotel Service Code)
1 To be cleaned without ID code
2 Cleaning Completed without ID code
3 Ready for Occupancy without ID code
4 Use Not Allowed without ID code
 5-8 -
9 Maid Dial Answer Back without ID code-1
10 Maid Dial Answer Back without ID code-2
11 Maid...

NDA-24298 CHAPTER 4
Page 241
Issue 1
ASPAL : Assignment of Special Access Code for LDM

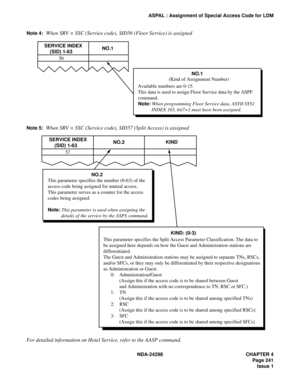

Note 4:
When SRV = SSC (Service code), SID56 (Floor Service) is assigned
Note 5:When SRV = SSC (Service code), SID57 (Split Access) is assigned
For detailed information on Hotel Service, refer to the AASP command.
SERVICE INDEX
    (SID) 1-63     NO.1
56
NO.1
(Kind of Assignment Number)
  Available numbers are 0-15.
  This data is used to assign Floor Service data by the ASPF
  command.
  Note: When programming Floor...

CHAPTER 4 NDA-24298
Page 242
Issue 1
ASPAL : Assignment of Special Access Code for LDM

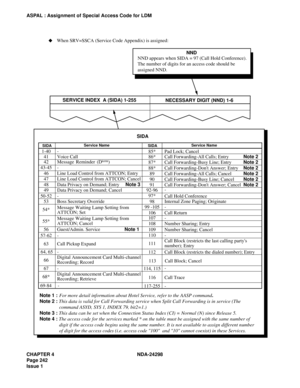

SERVICE INDEX  A (SIDA) 1-255
SIDA
When SRV=SSCA (Service Code Appendix) is assigned:
Note 1 :For more detail information about Hotel Service, refer to the AASP command.
Note 2 : This data is valid for Call Forwarding service when Split Call Forwarding is in service (The
command ASYD, SYS 1, INDEX 79, bit2=1.)
Note 3 : This data can be set when the Connection Status Index (CI) = Normal (N) since Release 5.
Note 4 :...

NDA-24298 CHAPTER 4
Page 243
Issue 1
ASPAL : Assignment of Special Access Code for LDM

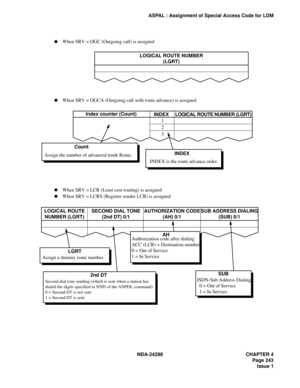

Assign the number of advanced trunk Route.LOGICAL ROUTE NUMBER
(LGRT)
Count
Assign a dummy route number.LGRT
Second dial tone sending (which is sent when a station has
dialed the digits specified in NND of the ANPDL command)
0 = Second DT is not sent
1 = Second DT is sent
2nd DTAuthorization code after dialing
ACC (LCR) + Destination number
0 = Out of Service
1 = In ServiceAH
ISDN-Sub Address Dialing
  0 = Out of...

CHAPTER 4 NDA-24298
Page 244
Issue 1
ASPAL : Assignment of Special Access Code for LDM

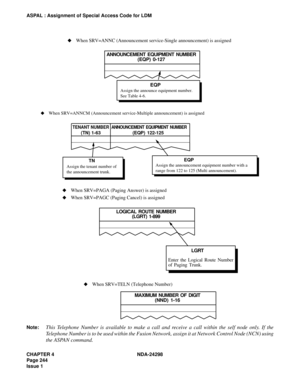

Note:
This Telephone Number is available to make a call and receive a call within the self node only. If the
Telephone Number is to be used within the Fusion Network, assign it at Network Control Node (NCN) using
the ASPAN command.
Assign the announce equipment number.
See Table 4-6.
When SRV=ANNC (Announcement service-Single announcement) is assigned
ANNOUNCEMENT EQUIPMENT NUMBER
(EQP) 0-127
EQP
Assign the tenant...

NDA-24298 CHAPTER 4
Page 245
Issue 1
ASPAL : Assignment of Special Access Code for LDM
4. Data Sheet
(a) Service Code (SRV = SSC)
Note 1:The parameter may vary depending on the service.
Note 2:When Split Call Forwarding is in service (the command ASYD, SYS1, INDEX79, bit2=1), this access code
is used for Split Call Forwarding.
Note 3:When Speed Calling-System; Access  is assigned, NND1 parameter assignment is  required in addition to
the NND parameter.
Note 4:Fill in the FPC in place of the parameter...

CHAPTER 4 NDA-24298
Page 246
Issue 1
ASPAL : Assignment of Special Access Code for LDM
(a) Service code (SRV = SSC) (Continued)
Note 1:The parameter may vary depending on the service.
Note 2:The available numbers of necessary digits vary depending on the parameter SID.
Note 3:For more detail information about Hotel Service, refer to the AASP command.
Note 4:Fill in the FPC in place of the parameter NND.
TENANT
NUMBER
(TN)ACCESS CODE
(ACC)
MAXIMUM
6 DIGITSCONNECTION
STATUS INDEX
(CI) N/H/BKIND OF...
