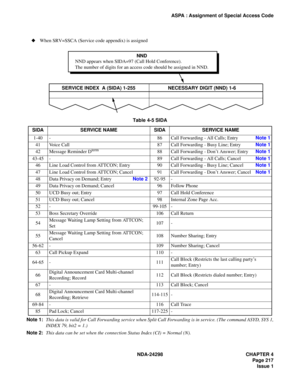

NDA-24298 CHAPTER 4 Page 217 Issue 1 ASPA : Assignment of Special Access Code Note 1:This data is valid for Call Forwarding service when Split Call Forwarding is in service. (The command ASYD, SYS 1, INDEX 79, bit2 = 1.) Note 2:This data can be set when the connection Status Index (CI) = Normal (N).Table 4-5 SIDA SIDA SERVICE NAME SIDA SERVICE NAME 1-40 - 86 Call Forwarding - All Calls; EntryNote 1 41 Voice Call 87 Call Forwarding - Busy Line; EntryNote 1 42 Message Reminder D term88 Call Forwarding -...
Page 252

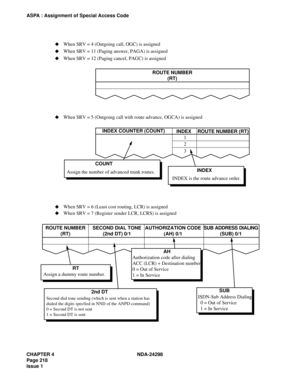

CHAPTER 4 NDA-24298 Page 218 Issue 1 ASPA : Assignment of Special Access Code Assign the number of advanced trunk routes.ROUTE NUMBER (RT) COUNT Assign a dummy route number.RT Second dial tone sending (which is sent when a station has dialed the digits specfied in NND of the ANPD command) 0 = Second DT is not sent 1 = Second DT is sent 2nd DTAuthorization code after dialing ACC (LCR) + Destination number 0 = Out of Service 1 = In ServiceAH ISDN-Sub Address Dialing 0 = Out of Service 1 = In ServiceSUB...
Page 253
NDA-24298 CHAPTER 4 Page 219 Issue 1 ASPA : Assignment of Special Access Code Table 4-6 EQP Parameter DATA MEANING DATA MEANING 0 Dead Level Number 33 Not Used 1 Unused Number 34 Automated Attendant (1st Announcement) 2 Remote Access to PBX 35 Automated Attendant (2nd Announcement) 3 May be used for other purposes 36Slumber Time - Do Not Disturb (for Slumber Time Group 1) 4 Outgoing Trunk Busy Announcement 37Slumber Time - Do Not Disturb (for Slumber Time Group 2) 5-14 May be used for other purposes...
Page 254
CHAPTER 4 NDA-24298 Page 220 Issue 1 ASPA : Assignment of Special Access Code Note: EQP3 and 5-14 can be used for SRV = ANNC (Announcement Service). 18Timed Reminder Cancel Message (for Business system)/Service Cancel Message (for Hotel Message)42Slumber Time - Do Not Disturb (for Slumber Time Group 7) 19 Service Cancel Failure Message (for Hotel system) 43-48 Not Used 20 Room Cut-Off Announcement (for Hotel system) 49-53Delay Announcement Attendant (1st Announcement) 21 Do Not Disturb Announcement...
Page 255
NDA-24298 CHAPTER 4 Page 221 Issue 1 ASPA : Assignment of Special Access Code 4. Data Sheet (a) Station (SRV = STN) Note:Max. number of digits for station is 5. TENANT NUMBER (TN)ACCESS CODE (ACC) MAXIMUM 6 DIGITS NoteCONNECTION STATUS INDEX (CI) N/HKIND OF SERVICE (SRV)NUMBER OF NECESSARY DIGITS (NND) 1 – 5REMARKS NNormal (STN) H Hooking NNormal (STN) H Hooking NNormal (STN) H Hooking NNormal (STN) H Hooking NNormal (STN) H Hooking NNormal (STN) H Hooking NNormal (STN) H Hooking NNormal (STN) H...
Page 256
CHAPTER 4 NDA-24298 Page 222 Issue 1 ASPA : Assignment of Special Access Code (b) Service code (SRV = SSC) Note 1:When Split Call Forwarding is in service (the command ASYD, SYS1, INDEX79, bit2=1), this access code is used for Split Call Forwarding. TENANT NUMBER (TN)ACCESS CODE (ACC) MAXIMUM 6 DIGITSCONNECTION STATUS INDEX (CI) 1–3KIND OF SERVICE (SRV)SERVICE FEATURE INDEX (SID) 1–63NUMBER OF NECESSARY DIGITS (NND) Note 1SERVICE CONTENTS H Hooking SSC 1Call Hold NNormal SSC 2 Dial Access to...
Page 257
NDA-24298 CHAPTER 4 Page 223 Issue 1 ASPA : Assignment of Special Access Code (b) Service code (SRV = SSC) (Continued) TENANT NUMBER (TN)ACCESS CODE (ACC) MAXIMUM 6 DIGITSCONNECTION STATUS INDEX (CI) 1–3KIND OF SERVICE (SRV)SERVICE FEATURE INDEX (SID) 1–63NUMBER OF NECESSARY DIGITS (NND) NoteSERVICE CONTENTS B Busy SSC 19OG Trunk Queuing; Entry N Normal SSC 20 OG Trunk Queuing; Cancel N Normal SSC 21 Speed Calling – Station, Group; Access 22 27 Not used N Normal SSC 28 Call Forwarding I’m Here;...
Page 258
CHAPTER 4 NDA-24298 Page 224 Issue 1 ASPA : Assignment of Special Access Code Note:The available numbers of necessary digits vary depending on the parameter SID. 47Not used N Normal SSC 48 Timed Reminder/Automatic Wake-Up; Entry N Normal SSC 49 Timed Reminder/Automatic Wake-Up; Cancel 50 59 Not used N Normal SSC 60 Attendant Manual Override H Hooking SSC 61 Call Park; Entry N Normal SSC 62 Call Park; Local Retrieve N Normal SSC 63 Call Park; Remote Retrieve TENANT NUMBER (TN)ACCESS CODE (ACC) MAXIMUM...
Page 259
NDA-24298 CHAPTER 4 Page 225 Issue 1 ASPA : Assignment of Special Access Code (c) Service code Appendix (SRV = SSCA) TENANT NUMBER (TN)ACCESS CODE (ACC) MAXIMUM 6 DIGITSCONNECTION STATUS INDEX (CI) 1 – 3KIND OF SERVICE (SRV)SERVICE FEATURE INDEX (SIDA) 1 – 255NUMBER OF NECESSARY DIGITS (NND)SERVICE CONTENTS 1 40 Not used H Hooking SSCA 41 Voice Call BBusy SSCA 42 Message Reminder (Dterm) H Hooking 43 45 Not used NNormal SSCA 46 Line Load Control from the ATTCON; Entry NNormal SSCA 47 Line Load...
Page 260
CHAPTER 4 NDA-24298 Page 226 Issue 1 ASPA : Assignment of Special Access Code NNormal SSCA 66 Digital Announcement Card Multi-channel Recording: Record 67 Not used NNormal SSCA 68 Digital Announcement Card Multi-channel Recording: Retrieve 69 84 Not used NNormal SSCA 85 Pad Lock; Cancel NNormal SSCA 86 C.F. – All Calls; Entry Note NNormal SSCA 87 C.F. – Busy Line; Entry Note NNormal SSCA 88 C.F. – Don’t Answer; Entry Note NNormal SSCA 89 C.F. – All Calls; Cancel Note NNormal SSCA 90 C.F. – Busy...
