NDA-24298 CHAPTER 4
Page 287
Issue 1
ASTPN : Assignment of Signal Translation Pattern for NDM
4. Data Sheet
(a) Incoming
KIND OF
ASSIGNMENT
(IC/OG)
I/OTENANT
NUMBER
(TN)LOGICAL
ROUTE
NUMBER
(LGRT)
1-899INCOMING
SELECTION
TRANSLATION
PAT T E R N
NUMBER (PNI)
1 – 15REMARKS
I

CHAPTER 4 NDA-24298
Page 288
Issue 1
ASTPN : Assignment of Signal Translation Pattern for NDM
(b) Outgoing
KIND OF
ASSIGNMENT
(IC/OG)
I/OTENANT
NUMBER
(TN)LOGICAL
ROUTE
NUMBER
(LGRT)
1-899OUTGOING
SELECTION
TRANSLATION
PAT T E R N
NUMBER (PNO)
1 – 15REMARKS
O

NDA-24298 CHAPTER 4
Page 289
Issue 1
AOSP : Assignment of Outgoing Selection Pattern
AOSP: Assignment of Outgoing Selection Pattern
1. General
This command assigns skip and additional digits information for Outgoing Selection Translation Pattern
Number (PNO).
2. Precautions
1. Before using this command, make sure that an Outgoing Selection Translation Pattern Number (PNO) has
been assigned in the ASTP command.
2. The transmit number translation of the OGC/OGCA method outgoing calls are done by ASTP/AOSP...

CHAPTER 4 NDA-24298
Page 290
Issue 1
AOSP : Assignment of Outgoing Selection Pattern

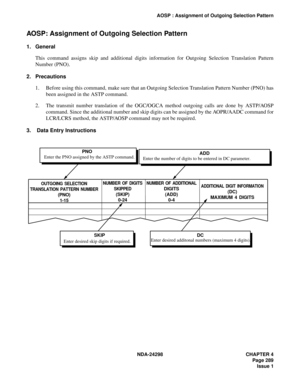

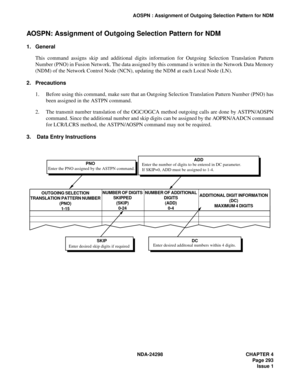

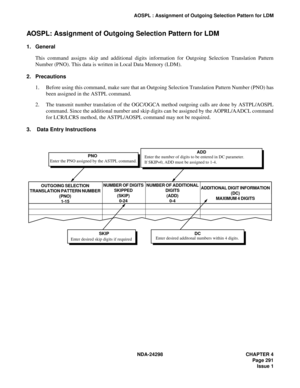

4. Data Sheet
OUTGOING SELECTION
TRANSLATION
PATTERN NUMBER
(PNO)
1 – 15NUMBER OF
DIGITS
SKIPPED
(SKIP)
0 – 24NUMBER OF
ADDITIONAL
DIGITS
(ADD)
0 – 4ADDITIONAL DIGIT
INFORMATION
 (DC)
 MAXIMUM
4 DIGITSREMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

NDA-24298 CHAPTER 4
Page 291
Issue 1
AOSPL : Assignment of Outgoing Selection Pattern for LDM
AOSPL: Assignment of Outgoing Selection Pattern for LDM
1. General
This command assigns skip and additional digits information for Outgoing Selection Translation Pattern
Number (PNO). This data is written in Local Data Memory (LDM).
2. Precautions
1. Before using this command, make sure that an Outgoing Selection Translation Pattern Number (PNO) has
been assigned in the ASTPL command.
2. The transmit number...

CHAPTER 4 NDA-24298
Page 292
Issue 1
AOSPL : Assignment of Outgoing Selection Pattern for LDM
4. Data Sheet
OUTGOING SELECTION
TRANSLATION
PATTERN NUMBER
(PNO) 1 – 15NUMBER OF
DIGITS
SKIPPED
(SKIP) 0 – 24NUMBER OF
ADDITIONAL
DIGITS
(ADD) 0 – 4ADDITIONAL DIGIT
INFORMATION
 (DC)
 MAXIMUM
4 DIGITSREMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

NDA-24298 CHAPTER 4
Page 293
Issue 1
AOSPN : Assignment of Outgoing Selection Pattern for NDM
AOSPN: Assignment of Outgoing Selection Pattern for NDM
1. General
This command assigns skip and additional digits information for Outgoing Selection Translation Pattern
Number (PNO) in Fusion Network. The data assigned by this command is written in the Network Data Memory
(NDM) of the Network Control Node (NCN), updating the NDM at each Local Node (LN).
2. Precautions
1. Before using this command, make sure...

CHAPTER 4 NDA-24298
Page 294
Issue 1
AOSPN : Assignment of Outgoing Selection Pattern for NDM
4. Data Sheet
OUTGOING SELECTION
TRANSLATION
PATTERN NUMBER
(PNO) 1 – 15NUMBER OF
DIGITS
SKIPPED
(SKIP) 0 – 24NUMBER OF
ADDITIONAL
DIGITS
(ADD) 0 – 4ADDITIONAL DIGIT
INFORMATION
 (DC)
 MAXIMUM
4 DIGITSREMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

NDA-24298 CHAPTER 4
Page 295
Issue 1
ACMO : Assignment of Clocked Manual Override
ACMO: Assignment of Clocked Manual Override
1. General
This command assigns the Clocked Manual Override data, which is used for changing routes during a specific
day and specific time period, such as a holiday (Month/Day/Hour/Minute).
2. Precautions
1. The BLOCK parameter is a data index (0-7).  A maximum of eight kinds of Clocked Manual Override
Data can be assigned.
2. The PTN parameter corresponds to the TDPTN parameter...

CHAPTER 4 NDA-24298
Page 296
Issue 1
ACMO : Assignment of Clocked Manual Override

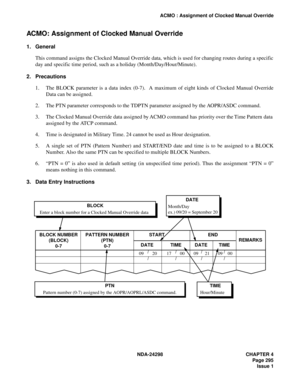

4. Data Sheet
BLOCK NUMBER
(BLOCK)
0 – 7PATTERN NUMBER
(PTN)
0 – 7START END
REMARKS
DATE TIME DATE TIME
////
////
////
////
////
////
////
////
