Page 331

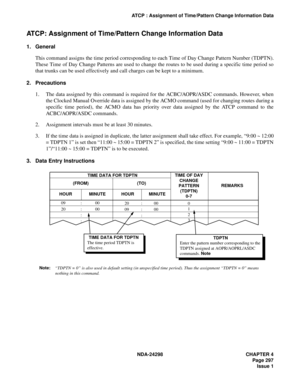

NDA-24298 CHAPTER 4 Page 297 Issue 1 ATCP : Assignment of Time/Pattern Change Information Data ATCP: Assignment of Time/Pattern Change Information Data 1. General This command assigns the time period corresponding to each Time of Day Change Pattern Number (TDPTN). These Time of Day Change Patterns are used to change the routes to be used during a specific time period so that trunks can be used effectively and call charges can be kept to a minimum. 2. Precautions 1. The data assigned by this command is...
Page 332
CHAPTER 4 NDA-24298 Page 298 Issue 1 ATCP : Assignment of Time/Pattern Change Information Data 4. Data Sheet Note 1:Assignment intervals must be at least 30 minutes. Note 2:The system fills in any unassigned time patterns for a 24-hour period. TIME DATA FOR TDPTNTIME OF DAY CHANGE PAT T E R N (TDPTN) 0 – 7REMARKS (FROM) (TO) HOUR MINUTE HOUR MINUTE ::0 ::1 ::2 ::3 ::4 ::5 ::6 ::7
Page 333
NDA-24298 CHAPTER 4 Page 299 Issue 1 AFRS : Assignment of Flexible Route Selection Data AFRS: Assignment of Flexible Route Selection Data 1. General This command assigns the area and/or office code data for the related OPR. 2. Precautions 1. The applicable Tenant Number (TN) range is designated by the ASYD command, SYS1, INDEX8. If data in this command is common for all tenants (ASYD command, SYS1, INDEX93, bit4=1), assign TN parameter as data “1” for all tenants. 2. After an Outgoing Route Selection...
Page 334

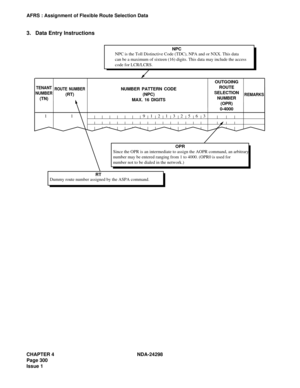

CHAPTER 4 NDA-24298 Page 300 Issue 1 AFRS : Assignment of Flexible Route Selection Data 3. Data Entry Instructions NPC is the Toll Distinctive Code (TDC), NPA and or NXX. This data can be a maximum of sixteen (16) digits. This data may include the access code for LCR/LCRS.NPC Since the OPR is an intermediate to assign the AOPR command, an arbitrary number may be entered ranging from 1 to 4000. (OPR0 is used for number not to be dialed in the network.)OPR Dummy route number assigned by the ASPA...
Page 335
NDA-24298 CHAPTER 4 Page 301 Issue 1 AFRS : Assignment of Flexible Route Selection Data 4. Data Sheet TENANT NUMBER (TN)ROUTE NUMBER (RT)NUMBER PATTERN CODE (NPC) MAX. 16 DIGITSOUTGOING ROUTE SELECTION NUMBER (OPR) 0 – 4000REMARKS
Page 336
CHAPTER 4 NDA-24298 Page 302 Issue 1 AFRSL : Assignment of Flexible Route Selection Data for LDM AFRSL: Assignment of Flexible Route Selection Data for LDM 1. General This command assigns the area and/or office code data for the OPR assigned by the AOPRL command. This data is written in Local Data Memory (LDM). 2. Precautions 1. The applicable Tenant Number (TN) range is designated by the ASYD command, SYS1, INDEX8. If data of this command is common for all tenants (ASYDL command, SYS1, INDEX800,...
Page 337

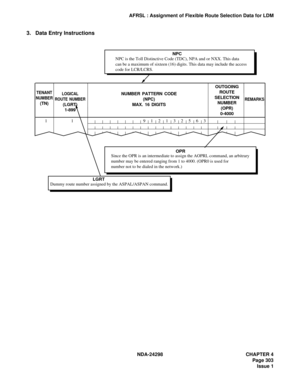

NDA-24298 CHAPTER 4 Page 303 Issue 1 AFRSL : Assignment of Flexible Route Selection Data for LDM 3. Data Entry Instructions NPC is the Toll Distinctive Code (TDC), NPA and or NXX. This data can be a maximum of sixteen (16) digits. This data may include the access code for LCR/LCRS.NPC Since the OPR is an intermediate to assign the AOPRL command, an arbitrary number may be entered ranging from 1 to 4000. (OPR0 is used for number not to be dialed in the network.)OPR Dummy route number assigned by the...
Page 338
CHAPTER 4 NDA-24298 Page 304 Issue 1 AFRSL : Assignment of Flexible Route Selection Data for LDM 4. Data Sheet TENANT NUMBER (TN)LOGICAL ROUTE NUMBER (LGRT)NUMBER PATTERN CODE (NPC) MAX. 16 DIGITSOUTGOING ROUTE SELECTION NUMBER (OPR) 0 – 4000REMARKS
Page 339
NDA-24298 CHAPTER 4 Page 305 Issue 1 AFRSN : Assignment of Flexible Route Selection Data for NDM AFRSN: Assignment of Flexible Route Selection Data for NDM 1. General This command assigns the area and/or office code data for the OPR assigned by the AOPRN command. The data assigned by this command is written in the Network Data Memory (NDM) of the Network Control Node (NCN), updating the NDM at each Local Node (LN). 2. Precautions 1. The applicable Tenant Number (TN) range is designated by the ASYDN...
Page 340

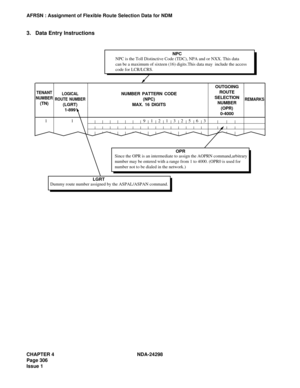

CHAPTER 4 NDA-24298 Page 306 Issue 1 AFRSN : Assignment of Flexible Route Selection Data for NDM 3. Data Entry Instructions NPC is the Toll Distinctive Code (TDC), NPA and or NXX. This data can be a maximum of sixteen (16) digits.This data may include the access code for LCR/LCRS.NPC Since the OPR is an intermediate to assign the AOPRN command,arbitrary number may be entered with a range from 1 to 4000. (OPR0 is used for number not to be dialed in the network.)OPR Dummy route number assigned by the...
