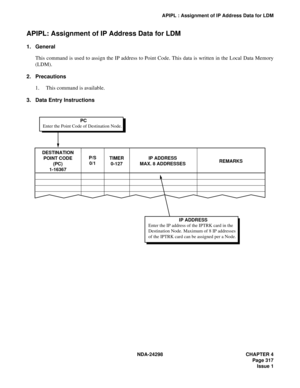

NDA-24298 CHAPTER 4 Page 317 Issue 1 APIPL : Assignment of IP Address Data for LDM APIPL: Assignment of IP Address Data for LDM 1. General This command is used to assign the IP address to Point Code. This data is written in the Local Data Memory (LDM). 2. Precautions 1. This command is available. 3. Data Entry Instructions Enter the IP address of the IPTRK card in the Destination Node. Maximum of 8 IP addresses of the IPTRK card can be assigned per a Node.IP ADDRESS Enter the Point Code of Destination...
Page 352
CHAPTER 4 NDA-24298 Page 318 Issue 1 APIPL : Assignment of IP Address Data for LDM 4. Data Sheet DESTINATION POINT CODE (PC) 1-16367P/S 0/1TIMER 0-127IP ADDRESS MAX. 8 ADDRESSESREMARKS
Page 353

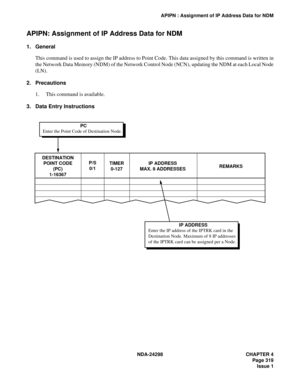

NDA-24298 CHAPTER 4 Page 319 Issue 1 APIPN : Assignment of IP Address Data for NDM APIPN: Assignment of IP Address Data for NDM 1. General This command is used to assign the IP address to Point Code. This data assigned by this command is written in the Network Data Memory (NDM) of the Network Control Node (NCN), updating the NDM at each Local Node (LN). 2. Precautions 1. This command is available. 3. Data Entry Instructions Enter the IP address of the IPTRK card in the Destination Node. Maximum of 8 IP...
Page 354
CHAPTER 4 NDA-24298 Page 320 Issue 1 APIPN : Assignment of IP Address Data for NDM 4. Data Sheet DESTINATION POINT CODE (PC) 1-16367P/S 0/1TIMER 0-127IP ADDRESS MAX. 8 ADDRESSESREMARKS
Page 355

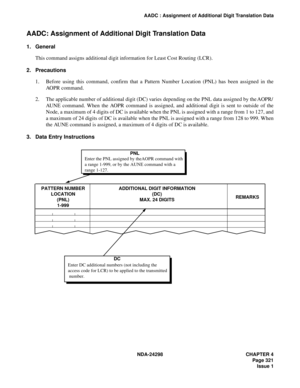

NDA-24298 CHAPTER 4 Page 321 Issue 1 AADC : Assignment of Additional Digit Translation Data AADC: Assignment of Additional Digit Translation Data 1. General This command assigns additional digit information for Least Cost Routing (LCR). 2. Precautions 1. Before using this command, confirm that a Pattern Number Location (PNL) has been assigned in the AOPR command. 2. The applicable number of additional digit (DC) varies depending on the PNL data assigned by the AOPR/ AUNE command. When the AOPR command...
Page 356
CHAPTER 4 NDA-24298 Page 322 Issue 1 AADC : Assignment of Additional Digit Translation Data 4. Data Sheet PATTERN NUMBER LOCATION (PNL) 1 – 999ADDITIONAL DIGIT INFORMATION (DC) MAX. 24 DIGITSREMARKS
Page 357

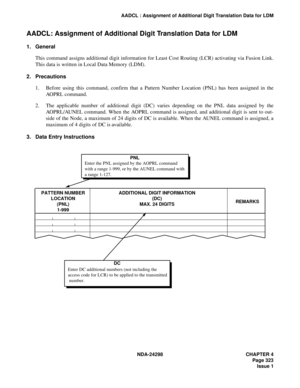

NDA-24298 CHAPTER 4 Page 323 Issue 1 AADCL : Assignment of Additional Digit Translation Data for LDM AADCL: Assignment of Additional Digit Translation Data for LDM 1. General This command assigns additional digit information for Least Cost Routing (LCR) activating via Fusion Link. This data is written in Local Data Memory (LDM). 2. Precautions 1. Before using this command, confirm that a Pattern Number Location (PNL) has been assigned in the AOPRL command. 2. The applicable number of additional digit...
Page 358
CHAPTER 4 NDA-24298 Page 324 Issue 1 AADCL : Assignment of Additional Digit Translation Data for LDM 4. Data Sheet PATTERN NUMBER LOCATION (PNL) 1 – 999ADDITIONAL DIGIT INFORMATION (DC) MAX. 24 DIGITSREMARKS
Page 359

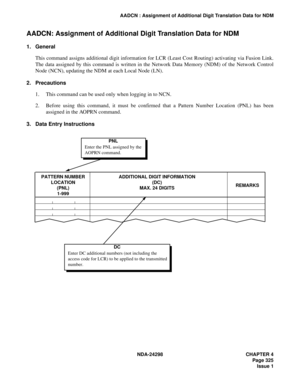

NDA-24298 CHAPTER 4 Page 325 Issue 1 AADCN : Assignment of Additional Digit Translation Data for NDM AADCN: Assignment of Additional Digit Translation Data for NDM 1. General This command assigns additional digit information for LCR (Least Cost Routing) activating via Fusion Link. The data assigned by this command is written in the Network Data Memory (NDM) of the Network Control Node (NCN), updating the NDM at each Local Node (LN). 2. Precautions 1. This command can be used only when logging in to NCN....
Page 360
CHAPTER 4 NDA-24298 Page 326 Issue 1 AADCN : Assignment of Additional Digit Translation Data for NDM 4. Data Sheet PATTERN NUMBER LOCATION (PNL) 1 – 999ADDITIONAL DIGIT INFORMATION (DC) MAX. 24 DIGITSREMARKS
