Page 371
NDA-24298 CHAPTER 4 Page 337 Issue 1 ASDCN : Assignment of Six Digit Least Cost Routing Data for NDM 4. Data Sheet KIND OF SELECTION (KIND) PFX/SCCTIME OF DAY CHANGE PATTERN NUMBER (TDPTN) 0 – 7OUTGOING ROUTE OFFICE CODE FLAG (OFLG) INPUT/ALL SELECTION PATTERN NUMBER (OPR) 0 – 4000ROUTE ADVANCING ORDER (RA) 0 – 7 OFFICE CODE (OFFICE) 200 – 999 0123456789 0123456789 20X 21X 22X 23X 24X 25X 26X 27X 28X 29X 30X 31X 32X 33X 34X 35X 36X 37X 38X 39X 40X 41X 42X 43X 44X 45X 46X 47X 48X 49X 50X 51X...
Page 372
CHAPTER 4 NDA-24298 Page 338 Issue 1 ASDCN : Assignment of Six Digit Least Cost Routing Data for NDM Note: Designating Data (EFFECT) is assigned in the square of the corresponding office code. When Designating Data is not assigned, the data is “0. 80X 81X 82X 83X 84X 85X 86X 87X 88X 89X 90X 91X 92X 93X 94X 95X 96X 97X 98X 99X KIND OF SELECTION (KIND) PFX/SCCTIME OF DAY CHANGE PATTERN NUMBER (TDPTN) 0 – 7OUTGOING ROUTE OFFICE CODE FLAG (OFLG) INPUT/ALL SELECTION PATTERN NUMBER (OPR) 0 – 4000ROUTE...
Page 373
NDA-24298 CHAPTER 4 Page 339 Issue 1 AUNE : Assignment of Uniform Numbering AUNE: Assignment of Uniform Numbering 1. General This command assigns the data for an inter-network call termination. 2. Precautions 1. This command is available for both ACIS and CCIS. The call termination from CCIS requiring the office code skip needs this data. Example:When the network numberings are as follows, example office data is listed in the table. Node A8 - 26 - xxxxx Node B8 - 10 - xxxxx 2. The applicable tenant...

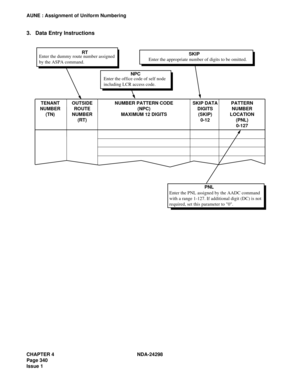

Page 374
CHAPTER 4 NDA-24298 Page 340 Issue 1 AUNE : Assignment of Uniform Numbering 3. Data Entry Instructions Enter the dummy route number assigned by the ASPA command.Enter the appropriate number of digits to be omitted. Enter the office code of self node including LCR access code. RT TENANT NUMBER (TN)SKIP DATA DIGITS (SKIP) 0-12PATTERN NUMBER LOCATION (PNL) 0-127 OUTSIDE ROUTE NUMBER (RT)NUMBER PATTERN CODE (NPC) MAXIMUM 12 DIGITSSKIP NPC Enter the PNL assigned by the AADC command with a range 1-127. If...
Page 375
NDA-24298 CHAPTER 4 Page 341 Issue 1 AUNE : Assignment of Uniform Numbering 4. Data Sheet TENANT NUMBER (TN)OUTSIDE ROUTE NUMBER (RT)NUMBER PATTERN CODE (NPC) MAXIMUM 12 DIGITSSKIP DATA DIGITS (SKIP) 0 – 12PAT T E R N NUMBER LOCATION (PNL) 0 - 127
Page 376
CHAPTER 4 NDA-24298 Page 342 Issue 1 AUNEL : Assignment of Uniform Numbering for LDM AUNEL: Assignment of Uniform Numbering for LDM 1. General This command assigns the data for an inter-network call termination. 2. Precautions This command is available for both ACIS and CCIS. The call termination from CCIS requiring the office code skip needs this data. Example:When the network numberings are as follows, example office data is listed in the table. Node A8 - 26 - xxxxx Node B8 - 10 - xxxxx 1. The...

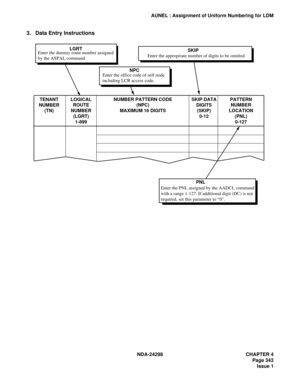

Page 377
NDA-24298 CHAPTER 4 Page 343 Issue 1 AUNEL : Assignment of Uniform Numbering for LDM 3. Data Entry Instructions Enter the dummy route number assigned by the ASPAL command.Enter the appropriate number of digits to be omitted. Enter the office code of self node including LCR access code. LGRT TENANT NUMBER (TN)SKIP DATA DIGITS (SKIP) 0-12PATTERN NUMBER LOCATION (PNL) 0-127 LOGICAL ROUTE NUMBER (LGRT) 1-899NUMBER PATTERN CODE (NPC) MAXIMUM 16 DIGITSSKIP NPC Enter the PNL assigned by the AADCL command with...
Page 378
CHAPTER 4 NDA-24298 Page 344 Issue 1 AUNEL : Assignment of Uniform Numbering for LDM 4. Data Sheet TENANT NUMBER (TN)LOGICAL ROUTE NUMBER (LGRT)NUMBER PATTERN CODE (NPC) MAXIMUM 16 DIGITSSKIP DATA DIGITS (SKIP) 0 – 12PAT T E R N NUMBER LOCATION (PNL) 0 - 127
Page 379
NDA-24298 CHAPTER 4 Page 345 Issue 1 ALDN : Assignment of Listed Directory Number ALDN: Assignment of Listed Directory Number 1. General This command assigns the Listed Directory Number (LDN) which allows a Direct Inward Dialing (DID) call to terminate to Attendant Consoles. 2. Precautions 1. When the LDN number assigned by this command is dialed from PSTN, the call terminates to Attendant Consoles during the Day mode, and redirects to a station or outside party in the Night mode. 2. The numbering of the...

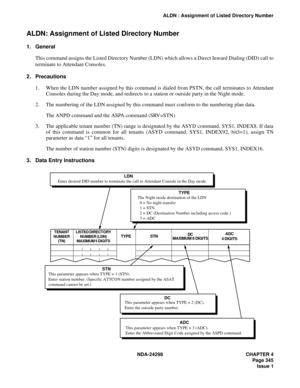

Page 380
CHAPTER 4 NDA-24298 Page 346 Issue 1 ALDN : Assignment of Listed Directory Number 4. Data Sheet TENANT NUMBER (TN)LISTED DIRECTORY NUMBER (LDN) MAXIMUM 5 DIGITSTYPE STNDC MAXIMUM 8 DIGITSADC 4 DIGITS
