Page 361
NDA-24298 CHAPTER 4 Page 327 Issue 1 ASDC : Assignment of Six Digit Least Cost Routing Data ASDC: Assignment of Six Digit Least Cost Routing Data 1. General This command is necessary when LCR six (6) digit translation is required for FX Prefix Codes, MCI, SPRINT and other applications. This command assigns, deletes, and displays this information. 2. Precautions 1. Before using this command, the following must be confirmed: - An Outgoing Route Selection Pattern Number (OPR) has been assigned in the AFRS...
Page 362

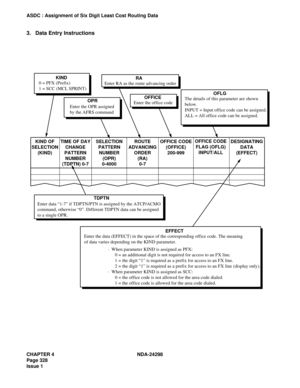

CHAPTER 4 NDA-24298 Page 328 Issue 1 ASDC : Assignment of Six Digit Least Cost Routing Data 3. Data Entry Instructions 0 = PFX (Prefix) 1 = SCC (MCI, SPRINT)KIND Enter RA as the route advancing order Enter the office codeRA OFFICE The details of this parameter are shown below. INPUT = Input office code can be assigned. ALL = All office code can be assigned.OFLG Enter the OPR assigned by the AFRS commandOPR KIND OF SELECTION (KIND)TIME OF DAY CHANGE PATTERN NUMBER (TDPTN) 0-7SELECTION PATTERN NUMBER...
Page 363
NDA-24298 CHAPTER 4 Page 329 Issue 1 ASDC : Assignment of Six Digit Least Cost Routing Data 4. Data Sheet KIND OF SELECTION (KIND) PFX/SCCTIME OF DAY CHANGE PATTERN NUMBER (TDPTN) 0 – 7OUTGOING ROUTE OFFICE CODE FLAG (OFLG) INPUT/ALL SELECTION PATTERN NUMBER (OPR) 0 – 4000ROUTE ADVANCING ORDER (RA) 0 – 7 OFFICE CODE (OFFICE) 200 – 999 0123456789 0123456789 20X 21X 22X 23X 24X 25X 26X 27X 28X 29X 30X 31X 32X 33X 34X 35X 36X 37X 38X 39X 40X 41X 42X 43X 44X 45X 46X 47X 48X 49X 50X 51X 52X 53X 54X...
Page 364
CHAPTER 4 NDA-24298 Page 330 Issue 1 ASDC : Assignment of Six Digit Least Cost Routing Data Note: Designating Data (EFFECT) is assigned in the square of the corresponding office code. When Designating Data is not assigned, the data is “0. 80X 81X 82X 83X 84X 85X 86X 87X 88X 89X 90X 91X 92X 93X 94X 95X 96X 97X 98X 99X KIND OF SELECTION (KIND) PFX/SCCTIME OF DAY CHANGE PATTERN NUMBER (TDPTN) 0 – 7OUTGOING ROUTE OFFICE CODE FLAG (OFLG) INPUT/ALL SELECTION PATTERN NUMBER (OPR) 0 – 4000ROUTE...
Page 365
NDA-24298 CHAPTER 4 Page 331 Issue 1 ASDCL : Assignment of Six Digit Least Cost Routing Data for LDM ASDCL: Assignment of Six Digit Least Cost Routing Data for LDM 1. General This command is necessary when LCR six (6) digit translation is required for FX Prefix Codes, MCI, SPRINT and other applications. This command assigns, deletes, and displays this information. This data is written in Local Data Memory (LDM). 2. Precautions 1. Before using this command, the following must be confirmed: - An Outgoing...
Page 366

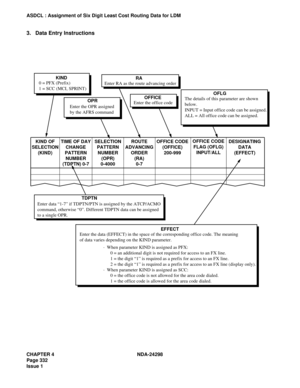

CHAPTER 4 NDA-24298 Page 332 Issue 1 ASDCL : Assignment of Six Digit Least Cost Routing Data for LDM 3. Data Entry Instructions 0 = PFX (Prefix) 1 = SCC (MCI, SPRINT)KIND Enter RA as the route advancing order Enter the office codeRA OFFICE The details of this parameter are shown below. INPUT = Input office code can be assigned. ALL = All office code can be assigned.OFLG Enter the OPR assigned by the AFRS commandOPR KIND OF SELECTION (KIND)TIME OF DAY CHANGE PATTERN NUMBER (TDPTN) 0-7SELECTION PATTERN...
Page 367
NDA-24298 CHAPTER 4 Page 333 Issue 1 ASDCL : Assignment of Six Digit Least Cost Routing Data for LDM 4. Data Sheet KIND OF SELECTION (KIND) PFX/SCCTIME OF DAY CHANGE PATTERN NUMBER (TDPTN) 0 – 7OUTGOING ROUTE OFFICE CODE FLAG (OFLG) INPUT/ALL SELECTION PATTERN NUMBER (OPR) 0 – 4000ROUTE ADVANCING ORDER (RA) 0 – 7 OFFICE CODE (OFFICE) 200 – 999 0123456789 0123456789 20X 21X 22X 23X 24X 25X 26X 27X 28X 29X 30X 31X 32X 33X 34X 35X 36X 37X 38X 39X 40X 41X 42X 43X 44X 45X 46X 47X 48X 49X 50X 51X...
Page 368
CHAPTER 4 NDA-24298 Page 334 Issue 1 ASDCL : Assignment of Six Digit Least Cost Routing Data for LDM Note: Designating Data (EFFECT) is assigned in the square of the corresponding office code. When Designating Data is not assigned, the data is “0. 80X 81X 82X 83X 84X 85X 86X 87X 88X 89X 90X 91X 92X 93X 94X 95X 96X 97X 98X 99X KIND OF SELECTION (KIND) PFX/SCCTIME OF DAY CHANGE PATTERN NUMBER (TDPTN) 0 – 7OUTGOING ROUTE OFFICE CODE FLAG (OFLG) INPUT/ALL SELECTION PATTERN NUMBER (OPR) 0 – 4000ROUTE...
Page 369
NDA-24298 CHAPTER 4 Page 335 Issue 1 ASDCN : Assignment of Six Digit Least Cost Routing Data for NDM ASDCN: Assignment of Six Digit Least Cost Routing Data for NDM 1. General This command is necessary when LCR six (6) digit translation is required for FX Prefix Codes, MCI, SPRINT and other applications. This command assigns, deletes, and displays this information. The data assigned by this command is written in the Network Data Memory (NDM) of the Network Control Node (NCN), updating the NDM at each...
Page 370

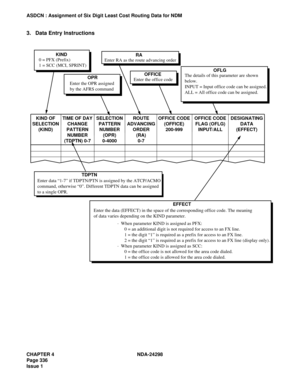

CHAPTER 4 NDA-24298 Page 336 Issue 1 ASDCN : Assignment of Six Digit Least Cost Routing Data for NDM 3. Data Entry Instructions 0 = PFX (Prefix) 1 = SCC (MCI, SPRINT)KIND Enter RA as the route advancing order Enter the office codeRA OFFICE The details of this parameter are shown below. INPUT = Input office code can be assigned. ALL = All office code can be assigned.OFLG Enter the OPR assigned by the AFRS commandOPR KIND OF SELECTION (KIND)TIME OF DAY CHANGE PATTERN NUMBER (TDPTN) 0-7SELECTION PATTERN...
