ALDNN : Assignment of Listed Directory Number for NDM
ALDNN: Assignment of Listed Directory Number for NDM
1. General
This command is used to assign the Listed Directory Number (LDN) which allows a Direct Inward Dialing
(DID) call to terminate to Attendant Consoles within the Fusion Network. The data assigned by this command
is written in Network Data Memory (NDM) of the Network Control Node (NCN), updating the NDM at each
Local Node (LN).
2. Precautions
1. When the...

CHAPTER 4 NDA-24298
Page 348
Issue 1
ALDNN : Assignment of Listed Directory Number for NDM
(b) TYPE = 1 (TELN) is selected;
(c) TYPE = 2 (To Outside) is selected;
  0 = No Night Transfer
  1 = TELN
  2 = To Outside

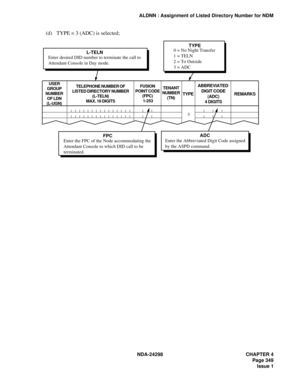

  3 = ADC Enter desired DID number to terminate the call to
Attendant Console in Day mode.
USER
GROUP
NUMBER
OF LDN
(L-UGN)FUSION
POINT CODE
(FPC)
 1-253TENANT
NUMBER
(TN) TELEPHONE NUMBER OF
LISTED DIRECTORY NUMBER
(L-TELN)
MAX. 16 DIGITS
L-TELN
Enter the FPC of the Node accommodating the...

NDA-24298 CHAPTER 4
Page 349
Issue 1
ALDNN : Assignment of Listed Directory Number for NDM
(d) TYPE = 3 (ADC) is selected;
  0 = No Night Transfer
  1 = TELN
  2 = To Outside
  3 = ADC Enter desired DID number to terminate the call to
Attendant Console in Day mode.
USER
GROUP
NUMBER
OF LDN
(L-UGN)FUSION
POINT CODE
(FPC)
 1-253TENANT
NUMBER
(TN) TELEPHONE NUMBER OF
LISTED DIRECTORY NUMBER
(L-TELN)
MAX. 16 DIGITS
L-TELN
Enter the FPC of the Node accommodating the
Attendant Console to which DID call to be...

CHAPTER 4 NDA-24298
Page 350
Issue 1
ALDNN : Assignment of Listed Directory Number for NDM
4. Data Sheet

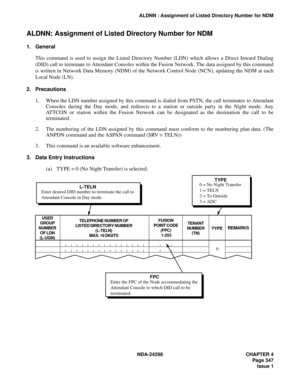

(a) TYPE = 0 (No Night Transfer) is selected;

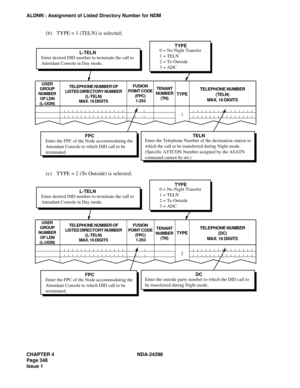

(b) TYPE = 1 (TELN) is selected;
USER
GROUP
NUMBER
OF LDN
 (L-UGN)TELEPHONE NUMBER OF
LISTED DIRECTORY NUMBER
(L-TELN)
MAX. 16 DIGITSFUSION
POINT CODE
 (FPC)
1-253TENANT
NUMBER
 (TN) TYPE REMARKS
USER
GROUP
NUMBER
OF LDN
 (L-UGN)TELEPHONE NUMBER OF
LISTED DIRECTORY NUMBER
(L-TELN)
MAX. 16 DIGITSFUSION
POINT CODE
(FPC)
1-253TENANT
NUMBER...

NDA-24298 CHAPTER 4
Page 351
Issue 1
ALDNN : Assignment of Listed Directory Number for NDM
(c) TYPE = 2 (To Outside) is selected;
(d) TYPE = 3 (ADC) is selected;
USER
GROUP
NUMBER
OF LDN
 (L-UGN)TELEPHONE NUMBER OF
LISTED DIRECTORY NUMBER
(L-TELN)
MAX. 16 DIGITSFUSION
POINT CODE
(FPC)
1-253TENANT
NUMBER
 (TN) TYPEDESTINATION NUMBER
(DC)
MAX. 16 DIGITS
USER
GROUP
NUMBER
OF LDN
 (L-UGN)TELEPHONE NUMBER OF
LISTED DIRECTORY NUMBER
(L-TELN)
MAX. 16 DIGITSFUSION
POINT CODE
(FPC)...

CHAPTER 4 NDA-24298
Page 352
Issue 1
AISP : Assignment of Incoming Selection Pattern
AISP: Assignment of Incoming Selection Pattern
1. General
This command assigns additional digits information with respect to the Incoming Selection Translation Pattern
Number (PNI).
2. Precautions
1. Since the PNI is an intermediate parameter to the ASTP command, assign the PNI for the incoming route
number by the ASTP command before assigning the AISP command.
2. The system processes the ASTP/AISP command prior to the...

NDA-24298 CHAPTER 4
Page 353
Issue 1
AISP : Assignment of Incoming Selection Pattern

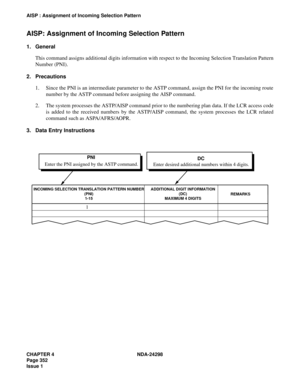

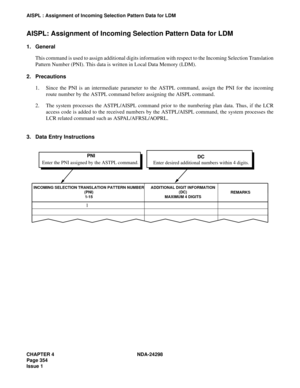

4. Data Sheet
INCOMING SELECTION
TRANSLATION PATTERN
NUMBER
(PNI)
1 – 15ADDITIONAL DIGIT
INFORMATION
(DC)
 MAXIMUM 4 DIGITSREMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

CHAPTER 4 NDA-24298
Page 354
Issue 1
AISPL : Assignment of Incoming Selection Pattern Data for LDM
AISPL: Assignment of Incoming Selection Pattern Data for LDM
1. General
This command is used to assign additional digits information with respect to the Incoming Selection Translation
Pattern Number (PNI). This data is written in Local Data Memory (LDM).
2. Precautions
1. Since the PNI is an intermediate parameter to the ASTPL command, assign the PNI for the incoming
route number by the ASTPL command before...

NDA-24298 CHAPTER 4
Page 355
Issue 1
AISPL : Assignment of Incoming Selection Pattern Data for LDM
4. Data Sheet
INCOMING SELECTION
TRANSLATION PATTERN
NUMBER (PNI) 1 – 15ADDITIONAL DIGIT
INFORMATION (DC)
 MAXIMUM 4 DIGITSREMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

CHAPTER 4 NDA-24298
Page 356
Issue 1
AISPN : Assignment of Incoming Selection Pattern Data for NDM
AISPN: Assignment of Incoming Selection Pattern Data for NDM
1. General
This command is used to assign additional digits information with respect to the Incoming Selection Translation
Pattern Number (PNI). The data assigned by this command is written in the Network Data Memory (NDM) of
the Network Control Node (NCN), updating the NDM at each Local Node (LN).
2. Precautions
1. Since the PNI is an...
