NDA-24298 CHAPTER 4 Page 587 Issue 1 ARTKN : Assignment of Route Trunk Data for NDM 4. Data Sheet LOGICAL ROUTE NUMBER (LGRT)FUSION POINT CODE (FPC) 1-253ROUTE NUMBER (RT)TRUNK NUMBER (TK)LINE EQUIPMENT NUMBER (LENS)TENANT NUMBER (TN) MG U G LV
Page 622

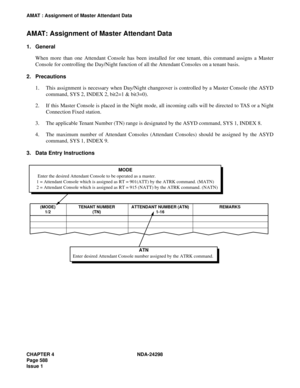

CHAPTER 4 NDA-24298 Page 588 Issue 1 AMAT : Assignment of Master Attendant Data AMAT: Assignment of Master Attendant Data 1. General When more than one Attendant Console has been installed for one tenant, this command assigns a Master Console for controlling the Day/Night function of all the Attendant Consoles on a tenant basis. 2. Precautions 1. This assignment is necessary when Day/Night changeover is controlled by a Master Console (the ASYD command, SYS 2, INDEX 2, bit2=1 & bit3=0). 2. If this Master...
Page 623
NDA-24298 CHAPTER 4 Page 589 Issue 1 AMAT : Assignment of Master Attendant Data 4. Data Sheet MODE 1/2TENANT NUMBER (TN) ATTENDANT NUMBER (ATN) 1-16REMARKS
Page 624

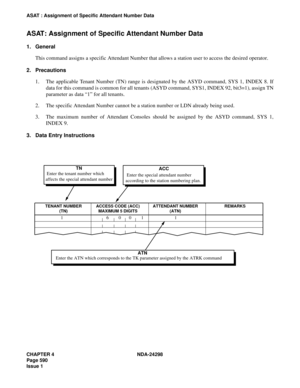

CHAPTER 4 NDA-24298 Page 590 Issue 1 ASAT : Assignment of Specific Attendant Number Data ASAT: Assignment of Specific Attendant Number Data 1. General This command assigns a specific Attendant Number that allows a station user to access the desired operator. 2. Precautions 1. The applicable Tenant Number (TN) range is designated by the ASYD command, SYS 1, INDEX 8. If data for this command is common for all tenants (ASYD command, SYS1, INDEX 92, bit3=1), assign TN parameter as data “1” for all tenants....
Page 625
NDA-24298 CHAPTER 4 Page 591 Issue 1 ASAT : Assignment of Specific Attendant Number Data 4. Data Sheet TENANT NUMBER (TN) ACCESS CODE (ACC) MAXIMUM 5 DIGITSATTENDANT NUMBER (ATN)REMARKS
Page 626
CHAPTER 4 NDA-24298 Page 592 Issue 1 ASATN : Assignment of Specific Attendant Number Data for NDM ASATN: Assignment of Specific Attendant Number Data for NDM 1. General This command assigns a specific Attendant Number that allows a station user to access the desired operator. The data assigned by this command is written in the Network Data Memory (NDM) of the Network Control Node (NCN), updating the NDM at each Local Node (LN). 2. Precautions 1. The specific attendant number cannot be a station number or...
Page 627
NDA-24298 CHAPTER 4 Page 593 Issue 1 ASATN : Assignment of Specific Attendant Number Data for NDM 4. Data Sheet USER GROUP NUMBER (UGN) ACCESS CODE (ACC) MAXIMUM 16 DIGITSFUSION POINT CODE (FPC) 1-253TENANT NUMBER (TN) ATTENDANT NUMBER (ATN) 1
Page 628

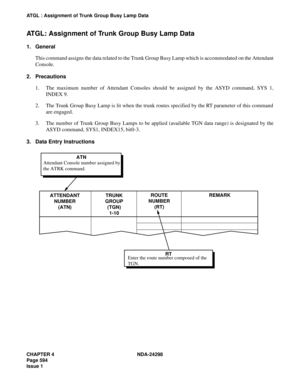

CHAPTER 4 NDA-24298 Page 594 Issue 1 ATGL : Assignment of Trunk Group Busy Lamp Data ATGL: Assignment of Trunk Group Busy Lamp Data 1. General This command assigns the data related to the Trunk Group Busy Lamp which is accommodated on the Attendant Console. 2. Precautions 1. The maximum number of Attendant Consoles should be assigned by the ASYD command, SYS 1, INDEX 9. 2. The Trunk Group Busy Lamp is lit when the trunk routes specified by the RT parameter of this command are engaged. 3. The number of...
Page 629
NDA-24298 CHAPTER 4 Page 595 Issue 1 ATGL : Assignment of Trunk Group Busy Lamp Data 4. Data Sheet ATTENDANT NUMBER (ATN)TRUNK GROUP NUMBER (TGN) 1-10ROUTE NUMBER (RT)REMARKS
Page 630

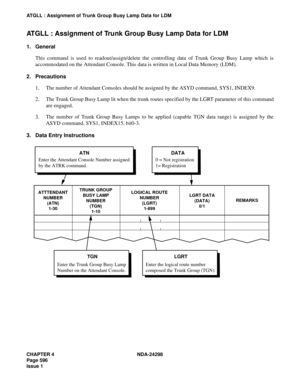

CHAPTER 4 NDA-24298 Page 596 Issue 1 ATGLL : Assignment of Trunk Group Busy Lamp Data for LDM ATGLL : Assignment of Trunk Group Busy Lamp Data for LDM 1. General This command is used to readout/assign/delete the controlling data of Trunk Group Busy Lamp which is accommodated on the Attendant Console. This data is written in Local Data Memory (LDM). 2. Precautions 1. The number of Attendant Consoles should be assigned by the ASYD command, SYS1, INDEX9. 2. The Trunk Group Busy Lamp lit when the trunk...
