NDA-24298 CHAPTER 4
Page 597
Issue 1
ATGLL : Assignment of Trunk Group Busy Lamp Data for LDM
4.  Data Sheet


ATTENDANT
NUMBER
(ATN)TRUNK GROUP
BUSY LAMP
NUMBER
(TGN)
1-10LOGICAL ROUTE
NUMBER
(LGRT)
1-899LGRT DATA
(DATA)
0/1REMARKS

CHAPTER 4 NDA-24298
Page 598
Issue 1
AAKP : Assignment of ATT Key Position
AAKP: Assignment of ATT Key Position
1. General
This command sets the functions of the top row of Incoming Call Identification (ICI) keys for answering
incoming calls at the Attendant Console.
2. Precautions
1. This command can be executed under one of following conditions:
(a) The ATI circuit card is not mounted.
(b) The ATT has been made busy using the MB switch on the ATI circuit card.
(c) The DAY/NIGHT key on the ATT is set to...

NDA-24298 CHAPTER 4
Page 599
Issue 1
AAKP : Assignment of ATT Key Position
Desk Console
Figure 4-28   ATT Key Position (Desk Console - Business)
Hotel Attendant Console
L6
L5
123CancelVol Position
Busy Night Night Position
Busy Position
Available Alarm
6 (TIE)
2 (EMG/SCB)
5 (Busy)4 (NANS)1 (TF)
3 (CAS/ICPT)

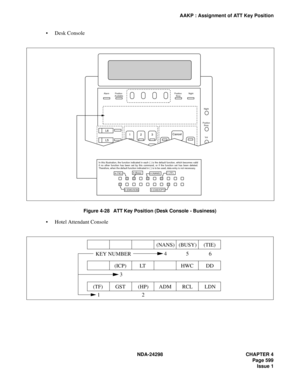

In this illustration, the function indicated in each ( ) is the default function, which becomes valid
if no other function has been set by this command, or if the function set has been deleted....

CHAPTER 4 NDA-24298
Page 600
Issue 1
AAKP : Assignment of ATT Key Position
Hotel Desk Console
3. Data Entry Instructions
Position
   BusyNight
PAGE REC
Start Mute TF Recall NANS ADM Busy TIE LDN AlarmPosition
Available
HWC
6
5
0 231 4HP DD GST LT ICPT
1 = CAS Line
3 = Priority Call 1
5 = Priority Call 3 2 = Off-Hook Alarm
4 = Priority Call 2
6-16 = Not used  FUNC

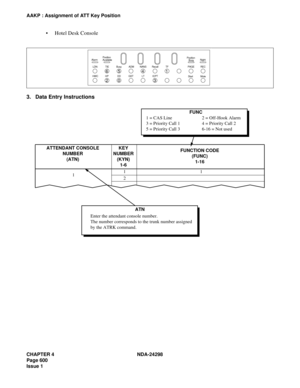

Enter the attendant console number.
The number corresponds to the trunk number assigned
by the ATRK command.  111
2
ATN ATTENDANT CONSOLE...

NDA-24298 CHAPTER 4
Page 601
Issue 1
AAKP : Assignment of ATT Key Position
4. Data Sheet
ATTENDANT
 NUMBER
(ATN)KEY
NUMBER
(KYN)
1-6FUNCTION CODE
(FUNC)
1-16ATTENDANT
 NUMBER
(ATN)KEY
 NUMBER
 (KYN)
1-6FUNCTION CODE
 (FUNC)
1-16
11
22
33
44
55
66
11
22
33
44
55
66
11
22
33
44
55
66
11
22
33
44
55
66

CHAPTER 4 NDA-24298
Page 602
Issue 1
ACOC : Assignment of Central Office Code
ACOC: Assignment of Central Office Code
1. General
This command assigns the C.O. line code and tie line code corresponding to particular trunks.
2. Precautions
1. The Central Office Code (COC) assigned by this command is displayed on ATTCON and also the D
term
instead of the trunk number.
2. The COC assigned by this command is used to specify a trunk by the Individual Trunk Access service
feature.
3. This command affects the...

NDA-24298 CHAPTER 4
Page 603
Issue 1
ACOC : Assignment of Central Office Code
4. Data Sheet

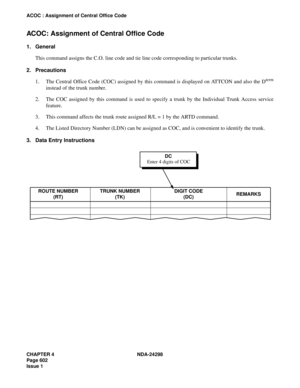

ROUTE NUMBER
(RT)TRUNK NUMBER
(TK)DIGIT CODE
(DC)
4 DIGITSREMARKS

CHAPTER 4 NDA-24298
Page 604
Issue 1
ACOC_LR : Assignment of Central Office Code – Logical Route Number
ACOC_LR: Assignment of Central Office Code – Logical Route Number
1. General
This command is used to assign C.O. line code and tie line code corresponding to particular trunks. Route
Number of the ACOC command can be assigned by using Logical Route.
2. Precautions
1. Prior to this command, logical route data must be allocated by using the ALRTN command.
2. Only when logging in to the NCN (Network...

NDA-24298 CHAPTER 4
Page 605
Issue 1
ACOC_LR : Assignment of Central Office Code – Logical Route Number
4. Data Sheet

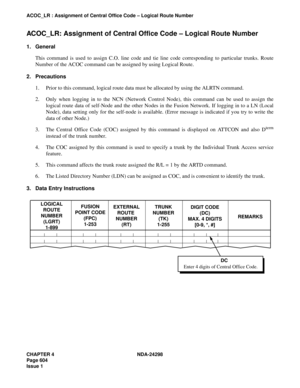

LOGICAL
ROUTE
NUMBER
(LGRT)
1-899FUSION
POINT CODE
(FPC)
1-253EXTERNAL
ROUTE
NUMBER
(RT)TRUNK
NUMBER
(TK)
1-255DIGIT CODE
(DC)
MAX. 4 DIGITS
[0-9, *, #]REMARKS

CHAPTER 4 NDA-24298
Page 606
Issue 1
ACID : Assignment of Caller ID Data
ACID:   Assignment of Caller ID Data
1. General
This command assigns calling number data for the following services:
Call Block
Distinctive Ringing - Caller ID
Representation Name
2. Precautions
1. A maximum of 28 calling numbers can be assigned to a single station.
3. Data Entry Instructions

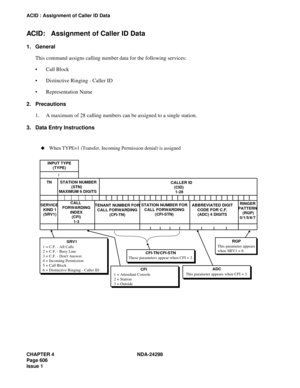

  STATION NUMBER
            (STN)
 MAXIMUM 6 DIGITS
RINGER
PATTERN
 (RGP)
0/1/5/6/7 SERVICE
 KIND 1
 (SRV1)CALL
FORWARDING
INDEX
(CFI)...
