NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 737
Issue 1
ASID_T : Assignment of Special Incoming – Telephone Number
4. Data Sheet
 TENANT
NUMBER
(TN)FUNCTION
NUMBER
(F)
0-7SPECIFIC
TERMINATING
GROUP
NUMBER
 (GN)
1-7USER
GROUP
NUMBER
(UGN)SPECIFIC TERMINATING EQUIPMENT
REMARKS
S/ASPECIAL TELEPHONE NUMBER
(STELN)
Max. 16 digits
1S
A
2S
A
3S
A
4S
A
5S
A
6S
A
7S
A
1S
A
2S
A
3S
A
4S
A
5S
A
6S
A
7S
A

CHAPTER 4 NDA-24298
Page 738
Issue 1
ATTD : Assignment of Trunk Test Data
ATTD: Assignment of Trunk Test Data
1. General
This command assigns, deletes, and displays trunk connection test data.
2. Precautions
It cannot be executed to overwrite the existing data in this command.
3. Data Entry Instructions
When TYPE=1
Note:Each trunk is automatically tested eight seconds after the previous digits have been sent out. If Test Tone
(TT) or Ring Back Tone (RBT) has been acknowledged, an error is indicated....

NDA-24298 CHAPTER 4
Page 739
Issue 1
ATTD : Assignment of Trunk Test Data
4. Data Sheet
(a) When TYPE=1

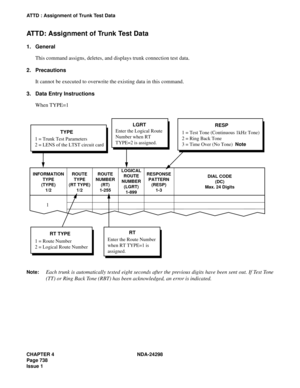

INFORMATION
TYPE
(TYPE)
1/2ROUTE
TYPE
(RT TYPE)
1/2ROUTE
NUMBER
(RT)
1-255LOGICAL
ROUTE
NUMBER
(LGRT)
1-899RESPONSE
PATTERN
(RESP)
1-3DIAL CODE
(DC)
Max. 24 Digits

CHAPTER 4 NDA-24298
Page 740
Issue 1
ATTD : Assignment of Trunk Test Data
(b) When TYPE=2
INFORMATION
TYPE
(TYPE)
1/2LINE EQUIPMENT
NUMBER
(LENS)INDIVIDUAL
TRUNK
ACCESS
CODE
(ACC)
Max. 3 DigitsTENANT
NUMBER
(TN)
1-63STATION NUMBER
(STN)
Max. 6 Digits
MG U G LV

NDA-24298 CHAPTER 4
Page 741
Issue 1
ACFS : Assignment of Call Forwarding Station Data
ACFS: Assignment of Call Forwarding Station Data
1. General
This command is used to set the Call Forwarding - All Calls/Busy Line/Don’t Answer, and further the Split Call
Forwarding Services.
2. Precautions
1. The applicable tenant number (TN) range is designated by the ASYD command, SYS 1, INDEX 8.
2. Parameters RCV can be assigned when ASYD, SYS1, INDEX 79, b2 = 1 (Split Call Forwarding is In
Service), and data “2...

CHAPTER 4 NDA-24298
Page 742
Issue 1
ACFS : Assignment of Call Forwarding Station Data
4. Data Sheet

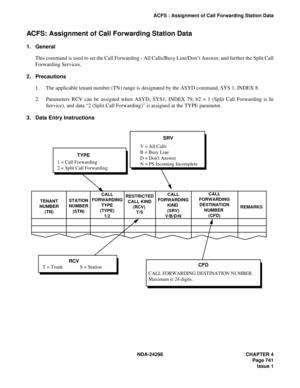

TENANT
NUMBER
(TN)STATION
NUMBER
(STN)CALL
FORWARDING
TYPE
(TYPE)
1/2RESTRICTED
CALL KIND
(RCV)
1/2CALL
FORWARDING
KIND
V/B/D/NCALL FORWARDING
DESTINATION
NUMBER
(CFD)
MAX. 24 DIGITS

NDA-24298 CHAPTER 4
Page 743
Issue 1
ACFS_T : Assignment of Call Forwarding Station Data – Telephone Number
ACFS_T : Assignment of Call Forwarding Station Data – Telephone Number
1. General
This command is used to set the Call Forwarding - All Calls/Busy Line/Don’t Answer, and further the Split Call
Forwarding Services for each station. The station data of ACFS command can be assigned by using Telephone
Number instead.
2. Precautions
1. Only the Telephone Numbers assigned by the ALGSN command can be...

CHAPTER 4 NDA-24298
Page 744
Issue 1
ACFS_T : Assignment of Call Forwarding Station Data – Telephone  Number
4. Data Sheet

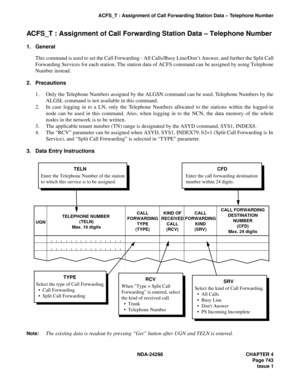

UGNTELEPHONE NUMBER
(TELN)
Max. 16 digitsCALL
FORWARDING
TYPE
(TYPE)KIND OF
RECEIVED
CALL
(RCV)CALL
FORWARDING
KIND
(SRV)CALL FORWARDING
DESTINATION NUMBER
(CFD)
Max. 24 digits

NDA-24298 CHAPTER 4
Page 745
Issue 1
ACFCL : Assignment of Call Forwarding by SFC for LDM
ACFCL : Assignment of Call Forwarding by SFC for LDM
1. General
This command is used to readout, assign, and delete the data related to Call Forwarding features. The data is
written in the Local Data Memory (LDM).
2. Precautions
1. Depending on the system data setting by ASYD SYS1, INDEX5 bit0 (Access Code for C.F. – Busy and
C.F. – Don’t Answer is the same or separated) and INDEX79 bit2 (Split Call Forwarding is in...

CHAPTER 4 NDA-24298
Page 746
Issue 1
ACFCL : Assignment of Call Forwarding by SFC for LDM
4. Data Sheet
(a) TYPE = 1 (ASYD SYS1, INDEX5 bit0 = 0 and INDEX79 bit2 = 0 is assigned);
(b) TYPE = 2 (ASYD SYS1, INDEX5 bit0 = 1 and INDEX79 bit2 = 0 is assigned);

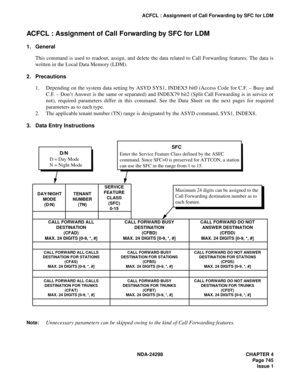

DAY/NIGHT
MODE
(D/N)TENANT
NUMBER
(TN)SERVICE
FEATURE
CLASS
(SFC)
0-15CALL FORWARD ALL DESTINATION
(CFAD)
MAX. 24 DIGITS [0-9, *, #]CALL FORWARD BUSY/
DO NOT ANSWER DESTINATION
(CFBD/CFDD)
MAX. 24 DIGITS [0-9, *, #]
DAY/ NIG HT
