NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 727
Issue 1
ASGD : Assignment of Special Group Data
ASGD: Assignment of Special Group Data
1. General

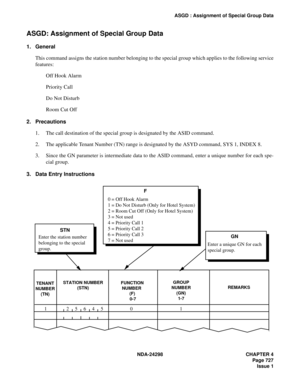

This command assigns the station number belonging to the special group which applies to the following service
features:
Off Hook Alarm
Priority Call
Do Not Disturb
Room Cut Off
2. Precautions
1. The call destination of the special group is designated by the ASID command.
2. The applicable Tenant Number (TN) range is designated by the ASYD command, SYS 1, INDEX 8.
3. Since the GN...

CHAPTER 4 NDA-24298
Page 728
Issue 1
ASGD : Assignment of Special Group Data
4. Data Sheet
TENANT
NUMBER
(TN) STATION NUMBER
(STN)FUNCTION
NUMBER
(F)
0 – 7GROUP
 NUMBER
(GN)
1 – 7REMARKS

NDA-24298 CHAPTER 4
Page 729
Issue 1
ASGD_T : Assignment of Special Group Data – Telephone Number
ASGD_T : Assignment of Special Group Data – Telephone Number
1. General
This command is used to assign the stations belong to the special group which applies to Off Hook Alarm,
Priority Call, Do Not Disturb, and Room Cut Off services. The station data of ASGD can be assigned by using
Telephone Number.
2. Precautions
1. Only the Telephone Numbers assigned by the ALGSN command can be used. Telephone Numbers by...

CHAPTER 4 NDA-24298
Page 730
Issue 1
ASGD_T : Assignment of Special Group Data – Telephone Number

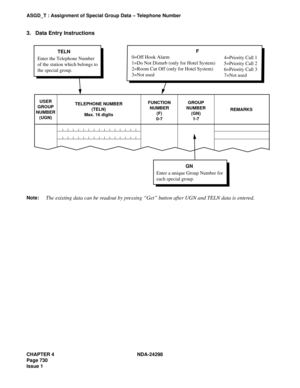

3. Data Entry Instructions
Note:The existing data can be readout by pressing “Get” button after UGN and TELN data is entered.
USER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER
(TELN)
Max. 16 digitsFUNCTION
NUMBER
(F)
0-7GROUP
NUMBER
(GN)
1-7REMARKS
TELN
Enter the Telephone Number
of the station which belongs to
the special group.
GN
Enter a unique Group Number for
each special group.
F
4=Priority Call 1
5=Priority...

NDA-24298 CHAPTER 4
Page 731
Issue 1
ASGD_T : Assignment of Special Group Data – Telephone Number
4. Data Sheet
 TENANT
NUMBER
(TN)FUNCTION
NUMBER
(F)
0-7SPECIFIC
TERMINATING
GROUP
NUMBER
 (GN)
1-7USER
GROUP
NUMBER
(UGN)SPECIFIC TERMINATING EQUIPMENT
REMARKS
S/ASPECIAL TELEPHONE NUMBER
(STELN)
Max. 16 digits
1S
A
2S
A
3S
A
4S
A
5S
A
6S
A
7S
A
1S
A
2S
A
3S
A
4S
A
5S
A
6S
A
7S
A

CHAPTER 4 NDA-24298
Page 732
Issue 1
ASID : Assignment of Special Incoming
ASID: Assignment of Special Incoming
1. General
This command assigns the call destination of the following service features:
Off Hook Alarm
Attendant Night Transfer
Priority Call
Do not Disturb
Room Cut Off
2. Precautions
1. The applicable stations to achieve the above service features are categorized as Special Group. The
stations belonging to the Special Group are assigned by the ASGD command.
2. The applicable Tenant Number...

NDA-24298 CHAPTER 4
Page 733
Issue 1
ASID : Assignment of Special Incoming

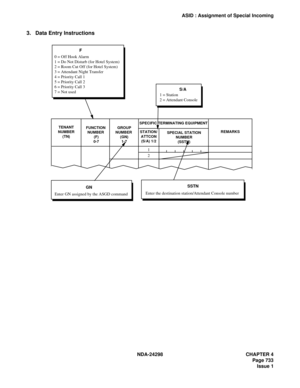

3. Data Entry Instructions
TENANT
NUMBER
(TN)SPECIAL STATION
NUMBER
(SSTN) SPECIFIC TERMINATING EQUIPMENT
FUNCTION
NUMBER
 (F)
 0-7GROUP
NUMBER
(GN)
1-7STATION/
ATTCON
(S/A) 1/2REMARKS
S/A
1 = Station
2 = Attendant Console
F
0 = Off Hook Alarm
1 = Do Not Disturb (for Hotel System)
2 = Room Cut Off (for Hotel System)
3 = Attendant Night Transfer
4 = Priority Call 1
5 = Priority Call 2
6 = Priority Call 3
7 = Not used
SSTN...

CHAPTER 4 NDA-24298
Page 734
Issue 1
ASID : Assignment of Special Incoming
4. Data Sheet
TENANT
 NUMBER
 (TN)FUNCTION
 NUMBER
(F)
 0 – 7GROUP
 NUMBER
 (GN)
 1 – 7SPECIFIC TERMINATING EQUIPMENT
REMARKS STATION/
AT T C O N
 S/ASPECIAL STATION
 NUMBER
(SSTN)
1S
A
2S
A
3S
A
4S
A
5S
A
6S
A
7S
A
1S
A
2S
A
3S
A
4S
A
5S
A
6S
A
7S
A

NDA-24298 CHAPTER 4
Page 735
Issue 1
ASID_T : Assignment of Special Incoming – Telephone Number
ASID_T : Assignment of Special Incoming – Telephone Number
1. General
This command is used to assign the destination of a call from the station which belongs to the special group,
such as Off Hook Alarm, Attendant Night Transfer, Priority Call, Do Not Disturb, and Room Cut Off services.
The station data of ASID can be assigned by using Telephone Number.
2. Precautions
1. Only the Telephone Numbers assigned by...

CHAPTER 4 NDA-24298
Page 736
Issue 1
ASID_T : Assignment of Special Incoming – Telephone Number

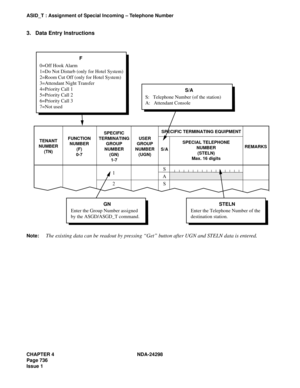

3. Data Entry Instructions
Note:The existing data can be readout by pressing “Get” button after UGN and STELN data is entered.
TENANT
NUMBER
(TN)FUNCTION
NUMBER
(F)
0-7SPECIFIC
TERMINATING
GROUP
NUMBER
(GN)
1-7SPECIAL TELEPHONE
NUMBER
(STELN)
Max. 16 digits USER
GROUP
NUMBER
(UGN)REMARKS
F
0=Off Hook Alarm
1=Do Not Disturb (only for Hotel System)
2=Room Cut Off (only for Hotel System)
3=Attendant Night...
