NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 717
Issue 1
AISA : Assignment of Individual Calling Entry Area
AISA: Assignment of Individual Calling Entry Area
1. General
This command designates the station type (MST or SLV) and the number of memory blocks to be used for the
Speed Calling Group/Station.
2. Precautions
1. One (1) Speed Calling - Station memory can be assigned a maximum of 18 digits for the long speed dial
number.
2. One (1) BLOCK consists of ten (10) Speed Calling - Station memories.
3. There are one hundred...

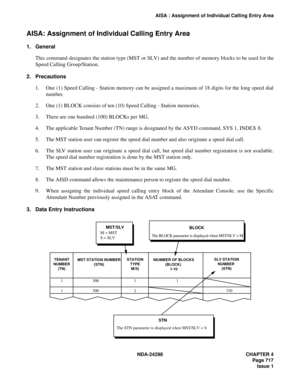

CHAPTER 4 NDA-24298
Page 718
Issue 1
AISA : Assignment of Individual Calling Entry Area
4. Data Sheet
TENANT
NUMBER
(TN)MASTER STATION
NUMBER
 (STN)STATION
TYPE
 M/SNUMBER OF
BLOCKS
(BLOCK)
 1 – 10STATION
TYPE
M/SSLAVE STATION NUMBER
(STN)
(Slave Station Number of the Same Speed
Calling Group)
12

NDA-24298 CHAPTER 4
Page 719
Issue 1
AISA_T :Assignment of Individual Speed Calling Entry Area – Telephone Number
AISA_T :Assignment of Individual Speed Calling Entry Area – Telephone
Number
1. General
This command is used to designate the station type (MST or SLV) and the number of memory block to be used
for the Speed Calling Group/Station. The station data of AISA command can be assigned by using Telephone
Number instead.
2. Precautions
1. Only the Telephone Numbers assigned by the ALGSN command can...

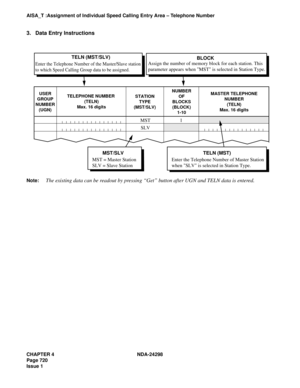

CHAPTER 4 NDA-24298
Page 720
Issue 1
AISA_T :Assignment of Individual Speed Calling Entry Area – Telephone Number
3. Data Entry Instructions
Note:The existing data can be readout by pressing “Get” button after UGN and TELN data is entered.
USER
GROUP
NUMBER
(UGN)MASTER TELEPHONE
NUMBER
(TELN)
Max. 16 digits STATION
TYPE
(MST/SLV)NUMBER
OF
BLOCKS
(BLOCK)
1-10TELEPHONE NUMBER
(TELN)
Max. 16 digits
TELN (MST/SLV)
Enter the Telephone Number of the Master/Slave station
to which Speed Calling Group data to...

NDA-24298 CHAPTER 4
Page 721
Issue 1
AISA_T :Assignment of Individual Speed Calling Entry Area – Telephone Number
4. Data Sheet

USER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER
(TELN)
Max. 16 digitsSTATION
TYPE
(MST/SLV)NUMBER
OF
BLOCKS
(BLOCK)
1-10MASTER TELEPHONE NUMBER
(TELN)
Max. 16 digits

CHAPTER 4 NDA-24298
Page 722
Issue 1
AISD : Assignment of Individual Speed Calling Data
AISD: Assignment of Individual Speed Calling Data
1. General
This command assigns the speed dial number (of the Speed Calling - Station service feature) for a station,
instead of a station user’s registration. This command also allows a maintenance person to monitor present user
settings.
2. Precautions
1. The applicable tenant number (TN) range is designated by the ASYD command, SYS 1, INDEX 8.
2. The station...

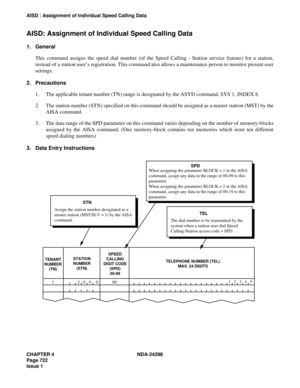

NDA-24298 CHAPTER 4
Page 723
Issue 1
AISD : Assignment of Individual Speed Calling Data
4. Data Sheet
TENANT
NUMBER
(TN)STATION
NUMBER
(STN)SPEED
CALLING DIGIT CODE
(SPD)
00 – 99TELEPHONE NUMBER
(TEL)
MAX. 18 DIGITS

CHAPTER 4 NDA-24298
Page 724
Issue 1
AISD_T : Assignment of Individual Speed Calling Data – Telephone Number
AISD_T : Assignment of Individual Speed Calling Data – Telephone Number
1. General
This command is used to assign the speed dial number (of the Speed Calling - Station service feature) for a
station, instead of a station user’s registration. The station data of AISD command can be assigned by using
Telephone Number.
2. Precautions
1. Only the Telephone Numbers assigned by the ALGSN command can be...

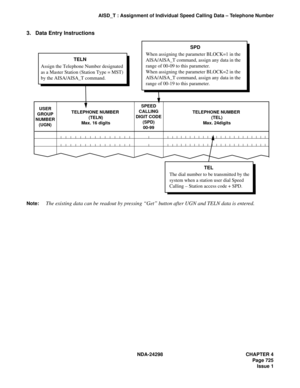

NDA-24298 CHAPTER 4
Page 725
Issue 1
AISD_T : Assignment of Individual Speed Calling Data – Telephone Number
3. Data Entry Instructions
Note:The existing data can be readout by pressing “Get” button after UGN and TELN data is entered.
USER
GROUP
NUMBER
(UGN)SPEED
CALLING
DIGIT CODE
(SPD)
00-99TELEPHONE NUMBER
(TELN)
Max. 16 digitsTELEPHONE NUMBER
(TEL)
Max. 24digits
TELN
Assign the Telephone Number designated
as a Master Station (Station Type = MST)
by the AISA/AISA_T command.
TEL
The dial number to...

CHAPTER 4 NDA-24298
Page 726
Issue 1
AISD_T : Assignment of Individual Speed Calling Data – Telephone Number
4. Data Sheet

USER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER
(TELN)
Max. 16 digitsSPEED
CALLING
DIGIT CODE
(SPD)
00-99TELEPHONE NUMBER
(TEL)
Max. 24 digits
