Page 791
NDA-24298 CHAPTER 4 Page 757 Issue 1 ACSA : Assignment of Connection Service Index A 4. Data Sheet ROUTE NUMBER (RT)TRUNK NUMBER (TK)CONNECTION SERVICE INDEX A (CSIA) 1 – 7TERMINATING STATION ABBREVIATED DIGIT CODE (ADC) 4 DIGITS TENANT NUMBER (TN)STATION NUMBER (STN) MAX. 6 DIGITS

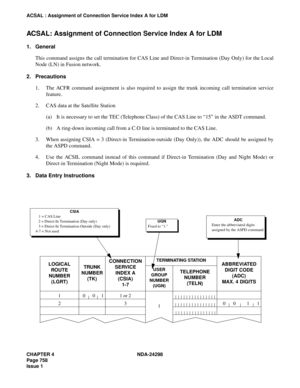

Page 792
CHAPTER 4 NDA-24298 Page 758 Issue 1 ACSAL : Assignment of Connection Service Index A for LDM ACSAL: Assignment of Connection Service Index A for LDM 1. General This command assigns the call termination for CAS Line and Direct-in Termination (Day Only) for the Local Node (LN) in Fusion network. 2. Precautions 1. The ACFR command assignment is also required to assign the trunk incoming call termination service feature. 2. CAS data at the Satellite Station (a) It is necessary to set the TEC (Telephone...
Page 793
NDA-24298 CHAPTER 4 Page 759 Issue 1 ACSAL : Assignment of Connection Service Index A for LDM 4. Data Sheet LOGICAL ROUTE NUMBER (LGRT)TRUNK NUMBER (TK)CONNECTION SERVICE INDEX A (CSIA) 1 – 7TERMINATING STATION ABBREVIATED DIGIT CODE (ADC) 4 DIGITS USER GROUP NUMBER (UGN)TELEPHONE NUMBER (TELN) MAX. 16 DIGITS 1
Page 794
CHAPTER 4 NDA-24298 Page 760 Issue 1 ACSI : Assignment of Connection Service Index Data ACSI: Assignment of Connection Service Index Data 1. General This command assigns the call termination for Direct-in Termination (Day and Night), Night Connection and Remote Access to System. 2. Precautions 1. The ACFR command assignment is also required to assign the trunk incoming call termination service feature. 2. When setting the CSI to “6” (Night Connection-Outside) or “7” (Direct-in Termination-Outside)...

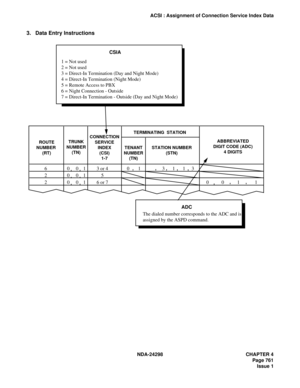

Page 795
NDA-24298 CHAPTER 4 Page 761 Issue 1 ACSI : Assignment of Connection Service Index Data 3. Data Entry Instructions ROUTE NUMBER (RT)CONNECTION SERVICE INDEX (CSI) 1-7 TRUNK NUMBER (TN)TENANT NUMBER (TN)STATION NUMBER (STN)ABBREVIATED DIGIT CODE (ADC) 4 DIGITS TERMINATING STATION CSIA 1 = Not used 2 = Not used 3 = Direct-In Termination (Day and Night Mode) 4 = Direct-In Termination (Night Mode) 5 = Remote Access to PBX 6 = Night Connection - Outside 7 = Direct-In Termination - Outside (Day and...
Page 796
CHAPTER 4 NDA-24298 Page 762 Issue 1 ACSI : Assignment of Connection Service Index Data 4. Data Sheet ROUTE NUMBER (RT)TRUNK NUMBER (TK)CONNECTION SERVICE INDEX (CSI) 1 – 7TERMINATING STATION ABBREVIATED DIGIT CODE (ADC) 4 DIGITS TENANT NUMBER (TN)STATION NUMBER (STN)
Page 797
NDA-24298 CHAPTER 4 Page 763 Issue 1 ACSIL : Assignment of Connection Service Index Data for LDM ACSIL: Assignment of Connection Service Index Data for LDM 1. General This command assigns the call termination for Direct-in Termination (Day and Night), Night Connection and Remote Access to System for the Local Node (LN) in Fusion network. 2. Precautions 1. The ACFR command assignment is also required to assign the trunk incoming call termination service feature. 2. When setting the CSI to “6” (Night...

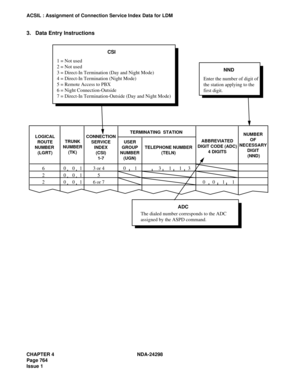

Page 798
CHAPTER 4 NDA-24298 Page 764 Issue 1 ACSIL : Assignment of Connection Service Index Data for LDM 3. Data Entry Instructions LOGICAL ROUTE NUMBER (LGRT)CONNECTION SERVICE INDEX (CSI) 1-7 TRUNK NUMBER (TK)USER GROUP NUMBER (UGN)TELEPHONE NUMBER (TELN)ABBREVIATED DIGIT CODE (ADC) 4 DIGITS TERMINATING STATION CSI 1 = Not used 2 = Not used 3 = Direct-In Termination (Day and Night Mode) 4 = Direct-In Termination (Night Mode) 5 = Remote Access to PBX 6 = Night Connection-Outside 7 = Direct-In...
Page 799
NDA-24298 CHAPTER 4 Page 765 Issue 1 ACSIL : Assignment of Connection Service Index Data for LDM 4. Data Sheet LOGICAL ROUTE NUMBER (LGRT)TRUNK NUMBER (TK)CONNECTION SERVICE INDEX (CSI) 1 – 7TERMINATING STATION ABBREVIATED DIGIT CODE (ADC) 4 DIGITSNUMBER OF NECESSARY DIGIT (NND) TENANT NUMBER (TN)TELEPHONE NUMBER (TELN)

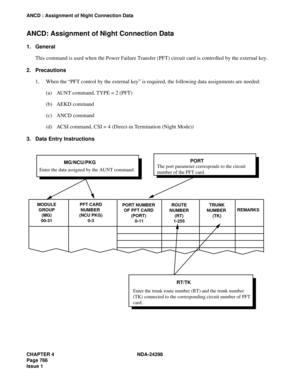

Page 800
CHAPTER 4 NDA-24298 Page 766 Issue 1 ANCD : Assignment of Night Connection Data ANCD: Assignment of Night Connection Data 1. General This command is used when the Power Failure Transfer (PFT) circuit card is controlled by the external key. 2. Precautions 1. When the “PFT control by the external key” is required, the following data assignments are needed: (a) AUNT command, TYPE = 2 (PFT) (b) AEKD command (c) ANCD command (d) ACSI command, CSI = 4 (Direct-in Termination (Night Mode)) 3. Data Entry...
