ANCD : Assignment of Night Connection Data
4. Data Sheet
MODULE
GROUP
NUMBER
(MG)
00 - 31PFT
CARD
NUMBER
(NCU
PKG)
0 - 3PORT
NUMBER OF
PFT CARD
(PORT)
0 - 11ROUTE
NUMBER
(RT)
1-255TRUNK
NUMBER
(TK)REMARKS
0
1
2
3
4
5
6
7
8
9
10
11
0
1
2
3
4
5
6
7
8
9
10
11

CHAPTER 4 NDA-24298
Page 768
Issue 1

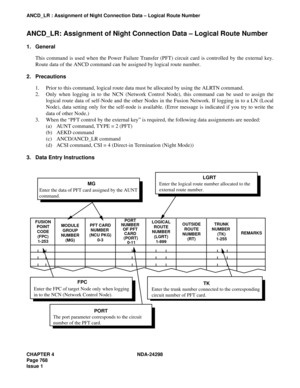

ANCD_LR : Assignment of Night Connection Data – Logical Route Number
ANCD_LR: Assignment of Night Connection Data – Logical Route Number
1. General
This command is used when the Power Failure Transfer (PFT) circuit card is controlled by the external key.
Route data of the ANCD command can be assigned by logical route number.
2. Precautions
1. Prior to this command, logical route data must be allocated by using the ALRTN command.
2. Only when logging in to the NCN...

NDA-24298 CHAPTER 4
Page 769
Issue 1
ANCD_LR : Assignment of Night Connection Data – Logical Route Number
4. Data Sheet
FUSION
POINT
CODE
(FPC)
1-253MODULE
GROUP
NUMBER
(MG)PFT CARD
NUMBER
(NCU PKG)
0 - 3PORT
NUMBER
OF PFT
CARD
(PORT)
0 - 11LOGICAL
ROUTE
NUMBER
(LGRT)
1-899OUTSIDE
ROUTE
NUMBER
(RT)TRUNK
NUMBER
(TK)
1-255REMARKS

CHAPTER 4 NDA-24298
Page 770
Issue 1

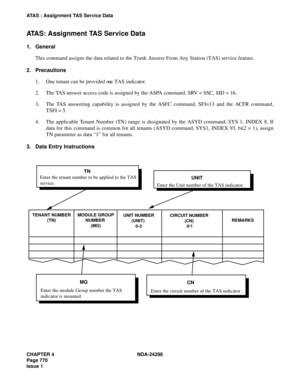

ATAS : Assignment TAS Service Data
ATAS: Assignment TAS Service Data
1. General
This command assigns the data related to the Trunk Answer From Any Station (TAS) service feature.
2. Precautions
1. One tenant can be provided one TAS indicator.
2. The TAS answer access code is assigned by the ASPA command, SRV = SSC, SID = 16.
3. The TAS answering capability is assigned by the ASFC command, SFI=13 and the ACFR command,
TSFI = 5.
4. The applicable Tenant Number (TN)...

NDA-24298 CHAPTER 4
Page 771
Issue 1
ATAS : Assignment TAS Service Data
4. Data Sheet
TENANT
NUMBER
(TN)MODULE
GROUP NUMBER
(MG)MOUNTED UNIT
NUMBER
(UNIT)
0 - 3CIRCUIT
NUMBER
(CN)
0/1REMARKS

CHAPTER 4 NDA-24298
Page 772
Issue 1

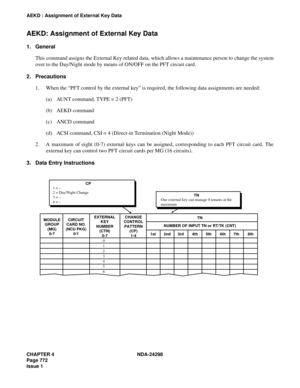

AEKD : Assignment of External Key Data
AEKD: Assignment of External Key Data
1. General
This command assigns the External Key related data, which allows a maintenance person to change the system
over to the Day/Night mode by means of ON/OFF on the PFT circuit card.
2. Precautions
1. When the “PFT control by the external key” is required, the following data assignments are needed:
(a) AUNT command, TYPE = 2 (PFT)
(b) AEKD command
(c) ANCD command
(d) ACSI command, CSI...

NDA-24298 CHAPTER 4
Page 773
Issue 1
AEKD : Assignment of External Key Data
4. Data Sheet
MODULE
GROUP
NUMBER
(MG)
0-7NCU
CARD
NUMBER
(NCU PKG)
0/1EXTERNAL
KEY
NUMBER
(CTN)
0-7CHANGE
CONTROL
PAT T E R N
(CP)
1-4TENANT NUMBER
(TN)
1ST 2ND 3RD 4TH 5TH 6TH 7TH 8TH
0
1
2
3
4
5
6
7

CHAPTER 4 NDA-24298
Page 774
Issue 1

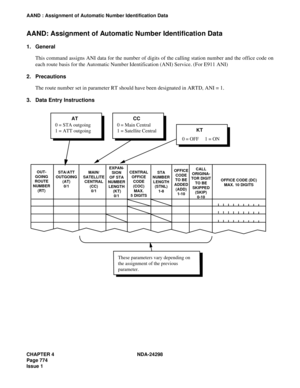

AAND : Assignment of Automatic Number Identification Data
AAND: Assignment of Automatic Number Identification Data
1. General
This command assigns ANI data for the number of digits of the calling station number and the office code on
each route basis for the Automatic Number Identification (ANI) Service. (For E911 ANI)
2. Precautions
The route number set in parameter RT should have been designated in ARTD, ANI = 1.
3. Data Entry Instructions
STA/ATT
OUTGOING
(AT)...

NDA-24298 CHAPTER 4
Page 775
Issue 1
AAND : Assignment of Automatic Number Identification Data
4. Data Sheet
(a) When STA/ATT, the Individual Attendant Number, is assigned. Outgoing and Main Central (AT = 0,
CC = 0)

Note:This parameter can be assigned when KT = 1.
ROUTE
NUMBER
(RT)STA
OUTGOING/
AT T
OUTGOING
(AT)MAIN
CENTRAL/
SATELLITE
CENTRAL
 (CC)EXPANSION
 OF STA
NUMBER
LENGTHS
(KT)
0/1STA
NUMBER
LENGTH
(STNL)
1 – 8
NoteOFFICE
CODE TO
BE
ADDED
(ADD)
1 – 10CALL
ORIGINATOR
 DIGIT TO BE...

CHAPTER 4 NDA-24298
Page 776
Issue 1
AAND : Assignment of Automatic Number Identification Data
(b) When STA/ATT, the Individual Attendant Number, is assigned. Outgoing and Satellite Central (AT =
0, CC = 1)

ROUTE
NUMBER
(RT)STA
OUTGOING/
AT T
OUTGOING
(AT)MAIN
CENTRAL/
SATELLITE
CENTRAL
 (CC)CENTRAL OFFICE CODE
(COC)
MAXIMUM 5 DIGITSOFFICE
CODE TO
BE
ADDED
(ADD)
1 – 10CALL
ORIGINATOR
DIGIT TO BE
SKIPPED
(SKIP)
0 – 10OFFICE CODE
(DC)
MAXIMUM 10 DIGITS
01
01
01
01
01
01
01
01
01
01
01
01
01...
