NDA-24298 CHAPTER 4 Page 897 Issue 1 ANSDL : Assignment of Number Sharing Data for LDM ANSDL: Assignment of Number Sharing Data for LDM 1. General This command assigns and deletes Main Station and Sub Station data for Number Sharing service and Dual Station Call. 2. Precautions 1. This command is used for the Local Node. 3. Data Entry Instructions OUTPUT EXTERNAL EQUIPMENT (OD) 0/1MESSAGE WAITING CONTROL (MW) 0/1TELEPHONE EQUIPMENT NUMBER (INDEX) 1-65535 SUB TELEPHONE NUMBER (S-TELN) MAX. 16 digits OD 0...
Page 932
CHAPTER 4 NDA-24298 Page 898 Issue 1 ANSDL : Assignment of Number Sharing Data for LDM 4. Data Sheet (a) Number Sharing Data Assignment Sheet MAIN USER GROUP NUMBER (M-UGN)MAIN TELEPHONE NUMBER (M-TELN) MAX. 16 DIGITSSERVICE SPECIFICATION (LM) 0/1SUB USER GROUP NUMBER (S-UGN)
Page 933
NDA-24298 CHAPTER 4 Page 899 Issue 1 ANSDL : Assignment of Number Sharing Data for LDM (a) Number Sharing Data Assignment Sheet (Continued) SUB TELEPHONE NUMBER MAX. 16 DIGITSOUTPUT EXTERNAL EQUIPMENT (OD) 0/1MESSAGE WAITING CONTROL (MW) 0/1TELEPHONE EQUIPMENT NUMBER (INDEX) 1-65535
Page 934
CHAPTER 4 NDA-24298 Page 900 Issue 1 ANSDN : Assignment of Number Sharing Data for NDM ANSDN: Assignment of Number Sharing Data for NDM 1. General This command assigns and deletes Main Station and Sub Station data for Number Sharing service and Dual Station Call service. 2. Precautions 1. This command is used for the Network Control Node. 3. Data Entry Instructions OUTPUT EXTERNAL EQUIPMENT (OD) 0/1MESSAGE WAITING CONTROL (MW) 0/1TELEPHONE EQUIPMENT NUMBER (INDEX) 1-65535 SUB TELEPHONE NUMBER (S-TELN)...
Page 935

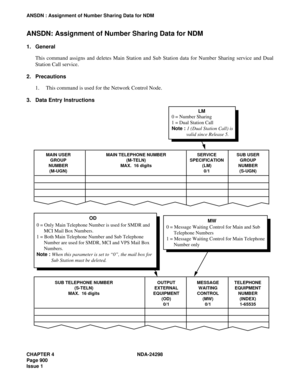

NDA-24298 CHAPTER 4 Page 901 Issue 1 ANSDN : Assignment of Number Sharing Data for NDM 4. Data Sheet (a) Number Sharing Data Assignment Sheet MAIN USER GROUP NUMBER (M-UGN)MAIN TELEPHONE NUMBER (M-TELN) MAX. 16 DIGITSSERVICE SPECIFICATION (LM) 0/1SUB USER GROUP NUMBER (S-UGN)
Page 936
CHAPTER 4 NDA-24298 Page 902 Issue 1 ANSDN : Assignment of Number Sharing Data for NDM (a) Number Sharing Data Assignment Sheet (Continued) SUB TELEPHONE NUMBER MAX. 16 DIGITSOUTPUT EXTERNAL EQUIPMENT (OD) 0/1MESSAGE WAITING CONTROL (MW) 0/1TELEPHONE EQUIPMENT NUMBER (INDEX) 1-65535
Page 937

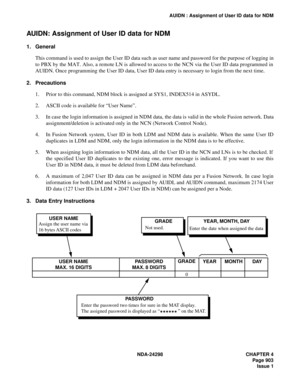

NDA-24298 CHAPTER 4 Page 903 Issue 1 AUIDN : Assignment of User ID data for NDM AUIDN: Assignment of User ID data for NDM 1. General This command is used to assign the User ID data such as user name and password for the purpose of logging in to PBX by the MAT. Also, a remote LN is allowed to access to the NCN via the User ID data programmed in AUIDN. Once programming the User ID data, User ID data entry is necessary to login from the next time. 2. Precautions 1. Prior to this command, NDM block is...
Page 938
CHAPTER 4 NDA-24298 Page 904 Issue 1 ASYDN : Assignment of System Data in Network Data Memory ASYDN: Assignment of System Data in Network Data Memory 1. General This command specifies the system data for the Fusion network. 2. Precautions 1. The data assigned by this command determines the service condition that affects the other nodes in the Fusion network. 2. Data for ASYDN assigned at Network Control Node (NCN) has priority over data for ASYDL assigned at the Local Node (LN) in the Fusion network. 3....
Page 939

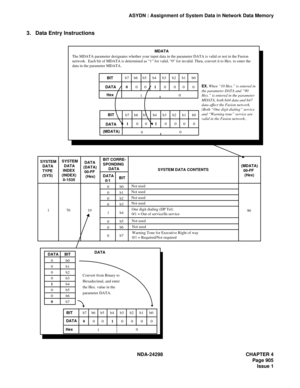

NDA-24298 CHAPTER 4 Page 905 Issue 1 ASYDN : Assignment of System Data in Network Data Memory 3. Data Entry Instructions DATA BIT 0 0 0 0 1 0 0 0b0 b1 b2 b3 b4 b5 b6 b7 BIT DATA Hexb7 b6 b5 b4 b3 b2 b1 b0 10 0 0 0 1 0 0 0 0 DATA Convert from Binary to Hexadecimal, and enter the Hex. value in the parameter DATA. SYSTEM DATA TYPE (SYS)SYSTEM DATA INDEX (INDEX) 0-1535 DATA (DATA) 00-FF (Hex)BIT CORRE- SPONDING...
