NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 887
Issue 1
AGIP : Assignment of Default Gateway IP Address Data for LDM

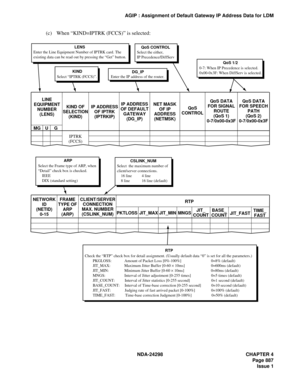

(c) When “KIND=IPTRK (FCCS)” is selected:
KIND OF
SELECTION
(KIND) LINE
EQUIPMENT
NUMBER
(LENS)
MG U G
IPTRK
(FCCS)IP ADDRESS
OF IPTRK
(IPTRKIP)IP ADDRESS
OF DEFAULT
GATEWAY
(DG_IP)NET MASK
OF IP
ADDRESS
(NETMSK)QoS
CONTROLQoS DATA
FOR SIGNAL
ROUTE
(QoS 1)
0-7/0x00-0x3FQoS DATA
FOR SPEECH
PATH
(QoS 2)
0-7/0x00-0x3F
KIND
Select “IPTRK (FCCS)”.
LENS
Enter the Line Equipment Number of IPTRK card. The
existing...

CHAPTER 4 NDA-24298
Page 888
Issue 1
AGIP : Assignment of Default Gateway IP Address Data for LDM

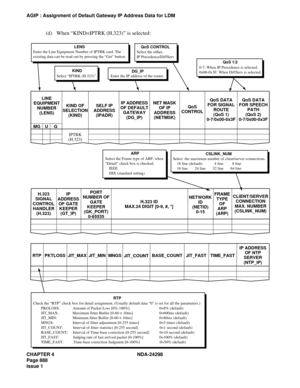

(d) When “KIND=IPTRK (H.323)” is selected:
KIND OF
SELECTION
(KIND) LINE
EQUIPMENT
NUMBER
(LENS)
MG U G
IPTRK
(H.323)SELF IP
ADDRESS
(IPADR)IP ADDRESS
OF DEFAULT
GATEWAY
(DG_IP)NET MASK
OF IP
ADDRESS
(NETMSK)QoS
CONTROLQoS DATA
FOR SIGNAL
ROUTE
(QoS 1)
0-7/0x00-0x3FQoS DATA
FOR SPEECH
PATH
(QoS 2)
0-7/0x00-0x3F
KIND
Select “IPTRK (H.323)”.
LENS
Enter the Line Equipment Number of IPTRK card. The
existing data...

NDA-24298 CHAPTER 4
Page 889
Issue 1
AGIP : Assignment of Default Gateway IP Address Data for LDM
4. Data Sheet
(a) When “KIND=FGH” is selected:
LINE
EQUIPMENT
NUMBER
(LENS)KIND OF
SELECTION
(KIND)FGH IP
ADDRESS
(FGH_IP)IP
ADDRESS
FOR
DEFAULT
GATEWAY
(DG_IP)NET MASK
OF IP
ADDRESS
(NETMSK)VO I C E
CHANNEL
CONTROL
TYPE
(CONTTYP)QSIG-PRIME
LINK
NUMBER
(LINK_NUM)
0-32FRAME
TYPE
OF ARP
(ARP)CLIENT/SERVER
CONNECTION
MAX. NUMBER
(CSLINK_NUM)
MG U G
FGH

CHAPTER 4 NDA-24298
Page 890
Issue 1
AGIP : Assignment of Default Gateway IP Address Data for LDM
(b) When “KIND=IPTRK (CCIS)” is selected:
LINE
EQUIPMENT
NUMBER
(LENS)KIND OF
SELECTION
(KIND)IP ADDRESS
OF IPTRK
(IPTRKIP)IP ADDRESS
OF DEFAULT
GATEWAY
(DG_IP)NET MASK
OF IP
ADDRESS
(NETMSK)QoS
CONTROLQoS DATA
FOR SIGNAL
ROUTE
(QoS 1)
0-7/0x00-0x3FQoS DATA
FOR SPEECH
PAT H
(QoS 2)
0-7/0x00-0x3F
MG U G
IPTRK
(CCIS)
KIND OF
MULT
CONNECTION
(MULT)
PVC/SVCIP ADDRESS
OF
DESTINATION
IPTRK
(DSTIP)INCOMING ROUTE...

NDA-24298 CHAPTER 4
Page 891
Issue 1
AGIP : Assignment of Default Gateway IP Address Data for LDM
(b) When “KIND=IPTRK (CCIS)” is selected (Continued):
RTP PKTLOSS JIT_MAX JIT_MIN MNGS JIT_COUNT BASE_COUNT JIT_FAST TIME_FAST

CHAPTER 4 NDA-24298
Page 892
Issue 1
AGIP : Assignment of Default Gateway IP Address Data for LDM
(c) When “KIND=IPTRK (FCCS)” is selected:
LINE
EQUIPMENT
NUMBER
(LENS)KIND OF
SELECTION
(KIND)IP ADDRESS
OF IPTRK
(IPTRKIP)IP ADDRESS
OF DEFAULT
GATEWAY
(DG_IP)NET MASK
OF IP
ADDRESS
(NETMSK)QoS
CONTROLQoS DATA
FOR SIGNAL
ROUTE
(QoS 1)
0-7/0x00-0x3FQoS DATA
FOR SPEECH
PAT H
(QoS 2)
0-7/0x00-0x3F
MG U G
IPTRK
(FCCS)
NETWORK
ID
(NETID)
0-15FRAME
TYPE
OF ARP
(ARP)CLIENT/SERVER
CONNECTION
MAX. NUMBER...

NDA-24298 CHAPTER 4
Page 893
Issue 1
AGIP : Assignment of Default Gateway IP Address Data for LDM
(d) When “KIND=IPTRK (H.323)” is selected:
LINE
EQUIPMENT
NUMBER
(LENS)KIND OF
SELECTION
(KIND)SELF
IP ADDRESS
(IPADR)IP ADDRESS
OF DEFAULT
GATEWAY
(DG_IP)NET MASK
OF IP
ADDRESS
(NETMSK)QoS
CONTROLQoS DATA
FOR SIGNAL
ROUTE
(QoS 1)
0-7/0x00-0x3FQoS DATA
FOR SPEECH
PAT H
(QoS 2)
0-7/0x00-0x3F
MG U G
IPTRK
(H.323)
H.323
SIGNAL
CONTROL
HANDLER
(H.323)IP
ADDRESS
OF GATE
KEEPER
(GK_IP)PORT
NUMBER OF
GATE
KEEPER...

CHAPTER 4 NDA-24298
Page 894
Issue 1
AGIP : Assignment of Default Gateway IP Address Data for LDM
(d) When “KIND=IPTRK (H.323)” is selected (Continued):
RTP PKTLOSS JIT_MAX JIT_MIN MNGS JIT_COUNT BASE_COUNT JIT_FAST TIME_FASTIP ADDRESS
OF NTP
SERVER
(NTP_IP)

NDA-24298 CHAPTER 4
Page 895
Issue 1
AFIP : Assignment of Fusion over IP Data for LDM
AFIP: Assignment of Fusion over IP Data for LDM
1. General
This command assigns the Router Access Number for controlling voice channel between PBX and Router.
2. Precautions
1. At the LENS parameter, the information of DTI card used for voice channel is to be assigned.
2. LENS of voice channel must be set on condition that data “2 (=Fusion over IP)” is assigned at CDN16
parameter of ACRD command.
3. Data Entry...

CHAPTER 4 NDA-24298
Page 896
Issue 1
AFIP : Assignment of Fusion over IP Data for LDM

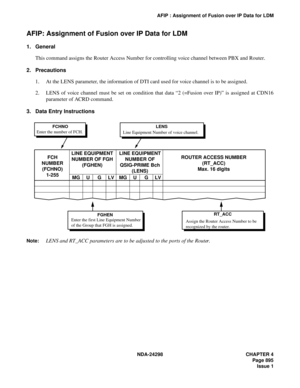

4. Data Sheet
FCH
NUMBER
(FCHN)LINE EQUIPMENT
NUMBER OF FGH
(FGHEN)LINE EQUIPMENT
NUMBER OF
QSIG-PRIME Bch
(LENS)ROUTER ACCESS NUMBER
(RT_ACC)
Max. 16 digits
MG U G LV MG U G LV
