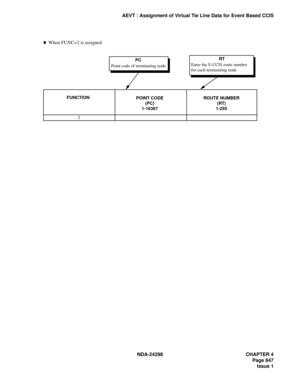

AEVT : Assignment of Virtual Tie Line Data for Event Based CCIS
♦ When FUNC=2 is assigned
FUNCTION
POINT CODE
(PC)
1-16367ROUTE NUMBER
(RT)
1-255
2
PC
Point code of terminating nodeRT
Enter the E-CCIS route number
for each terminating node

CHAPTER 4 NDA-24298
Page 848
Issue 1
AEVT : Assignment of Virtual Tie Line Data for Event Based CCIS
4. Data Sheet
(a) FUNCTION = 1 and TYPE = 1/2 (OPR and RA parameters are available for TYPE = 2)
ROUTE
NUMBER
(RT)
1-255TRUNK
NUMBER
(TK)
1-255DESTINATION
NUMBER
(DESTINATION)
1-6CALLING NUMBER
(CALLING)
1-24
CALLED NUMBER
(CALLED)
1-24CCIS_RT
1-255CCIS_TK
1-255VRY
0/1OPR
1-4000RA
0-7

NDA-24298 CHAPTER 4
Page 849
Issue 1
AEVT : Assignment of Virtual Tie Line Data for Event Based CCIS
(b) FUNCTION = 1 and TYPE = 3/4 (“OPR” and “RA” parameters are available for TYPE = 4)
ROUTE
NUMBER
(RT)
1-255TRUNK
NUMBER
(TK)DESTINATION
NUMBER
(DESTINATION)
1-6CALLING NUMBER
(CALLING)
1-24
0
CALLED NUMBER
(CALLED)
1-24ISDN_RT
1-255VRY
0/1OPR
1-4000RA
0-7

CHAPTER 4 NDA-24298
Page 850
Issue 1
AEVT : Assignment of Virtual Tie Line Data for Event Based CCIS
(c) FUNCTION = 2 (E-CCIS RT is set for each terminating node)
POINT CODE
(PC)
1-16367ROUTE NUMBER
(RT)
1-255

NDA-24298 CHAPTER 4
Page 851
Issue 1

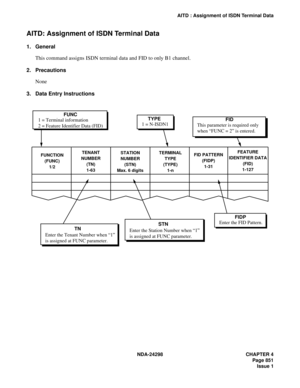

AITD : Assignment of ISDN Terminal Data
AITD: Assignment of ISDN Terminal Data
1. General
This command assigns ISDN terminal data and FID to only B1 channel.
2. Precautions
None
3. Data Entry Instructions
FUNCTION
(FUNC)
1/2TENANT
NUMBER
(TN)
1-63STATION
NUMBER
(STN)
Max. 6 digitsTERMINAL
TYPE
(TYPE)
1-nFID PATTERN
(FIDP)
1-31FEATURE
IDENTIFIER DATA
(FID)
1-127
FUNC
1 = Terminal information
2 = Feature Identifier Data (FID)
FID
This parameter is required only
when...

CHAPTER 4 NDA-24298
Page 852
Issue 1
AITD : Assignment of ISDN Terminal Data
4. Data Sheet
FUNCTION
(FUNC)
1/2TENANT
NUMBER
(TN)
1-63STATION
NUMBER
(STN)
Max. 6 digitsTERMINAL TYPE
(TYPE)
1-nFID
PATTERN
(FIDP)
1-31FEATURE
IDENTIFIER DATA
(FID)
1-127

NDA-24298 CHAPTER 4
Page 853
Issue 1

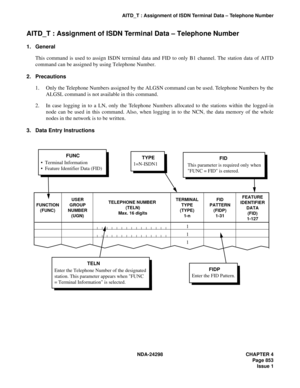

AITD_T : Assignment of ISDN Terminal Data – Telephone Number
AITD_T : Assignment of ISDN Terminal Data – Telephone Number
1. General
This command is used to assign ISDN terminal data and FID to only B1 channel. The station data of AITD
command can be assigned by using Telephone Number.
2. Precautions
1. Only the Telephone Numbers assigned by the ALGSN command can be used. Telephone Numbers by the
ALGSL command is not available in this command.
2. In case logging in to...

CHAPTER 4 NDA-24298
Page 854
Issue 1
AITD_T : Assignment of ISDN Terminal Data – Telephone Number
4. Data Sheet
FUNCTION
(FUNC)USER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER
(TELN)
Max. 16 digitsTERMINAL
TYPE
(TYPE)
1-nFID
PATTERN
(FIDP)
1-31FEATURE
IDENTIFIER
DATA
(FID)
1-127


NDA-24298 CHAPTER 4
Page 855
Issue 1
ACRD : Assignment of Connection Route Class Data for Local Data Memory
ACRD: Assignment of Connection Route Class Data for Local Data Memory
1. General
This command assigns the related data for the connection route used for B-channel and D-channel in the Fusion
Network link.
2. Precautions
1. The available connection route numbers are 1-1023.
2. For detailed information, see the NEAX2400 IPX Fusion Network System Manual.
3. Data Entry Instructions
Refer to data sheet...

CHAPTER 4 NDA-24298
Page 856
Issue 1
ACRD : Assignment of Connection Route Class Data for Local Data Memory
4. Data Sheet
CDNCONNECTION RT No.
(C_RT) 1-1023
FUNCTION (FUNC)
1TF - Type of Trunk
0 - 2 = -
3 = Bothway Trunk (BWT)33333 3
2TCL - Trunk Class (Fixed “4”)
1-3 = -
4 = Fusion Trunk
5-31 = -44444 4
3RLP - Trunk Release Pattern
(Fixed “2”)
0-1 = -
2 = First party Release
3=-22222 2
4SMDR -
Detailed Billing Information
(Fixed “0”)
0 = SMDR is out of service
1 = SMDR is in service00000 0
5LSG - Line...
