NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 877
Issue 1
AFPC : Assignment of FCCH Routing Data for Local Data Memory
4. Data Sheet
Note:“USE_GATE” data is automatically set and this parameter won’t appear on the MAT display.
FUSION POINT
CODE (FPC) 1-253 FCCH USE OR
NOT USE (FCCH) 0/1GATEWAY FUNCTION USE
OR NOT USE (USE_GATE) 0/1PRIORITY ROUTE
(P_ROUTE) 0/1
12345678
CONNECTION ROUTE
(C_RT) 1-1023
FCCH NUMBER/FUSION
POINT CODE NUMBER
(FCHN/FPCN) 1-255/1-253
FUSION POINT
CODE
(FPC) 1-253 FCCH USE OR
NOT USE
(FCCH)...

CHAPTER 4 NDA-24298
Page 878
Issue 1
AETH : Assignment of External Router Connection Routing Data for LDM
AETH: Assignment of External Router Connection Routing Data for LDM
1. General
This command is used to assign/delete routing data in case the data is transferred via external router.
2. Precautions
None.
3. Data Entry Instructions
Note:“USE_GATE” data is automatically set and this parameter won’t appear on the MAT screen
DESTINATION
FPC
(FPC)
1-253GATEWAY
USING FLAG
(USE_GATE)
0/1FCCH
NUMBER
(FCHN)...

NDA-24298 CHAPTER 4
Page 879
Issue 1

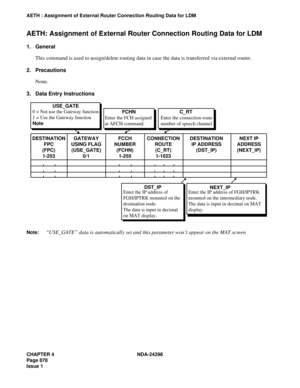

AETH : Assignment of External Router Connection Routing Data for LDM
4. Data Sheet
DESTINATION
FPC
(FPC)
1-253GATEWAY
USING FLAG
(USE_GATE)
0/1FCCH
NUMBER
(FCHN)
1-255CONNECTION
ROUTE
(C_RT)
1-1023DESTINATION
IP ADDRESS
(DST_IP)NEXT IP
ADDRESS
(NEXT_IP)

CHAPTER 4 NDA-24298
Page 880
Issue 1
ACAN : Assignment of CIC Number Between Adjacent Nodes for Local Data Memory
ACAN:   Assignment of CIC Number Between Adjacent Nodes for
Local Data Memory
1. General
This command assigns LENS and Fusion Circuit Identification Code (Fusion CIC) numbers on the basis of each
Fusion Point Code (FPC).
2. Precautions
1. Before executing this command, confirm that the following assignments have already been completed:
(a) LSG: 12 (the ACRD command) is assigned...

NDA-24298 CHAPTER 4
Page 881
Issue 1

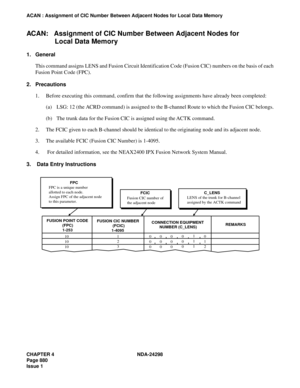

ACAN : Assignment of CIC Number Between Adjacent Nodes for Local Data Memory
4. Data Sheet
FUSION POINT CODE
(FPC)
1-253FUSION CIC
NUMBER
(FCIC)
1-4095CONNECTION EQUIPMENT
NUMBER
(C_LENS)REMARKS

CHAPTER 4 NDA-24298
Page 882
Issue 1
AFRT : Assignment of FCCH Controlled Connection Route Data for Local Data Memory
AFRT:   Assignment of FCCH Controlled Connection Route Data for
Local Data Memory
1. General
This command assigns the connection route controlling connection trunks for each FCCH number.
2. Precautions
1. Before executing this command, confirm that the following assignments have already been completed:
(a) The FCCH number has been assigned by the AFCH command.
(b) The Connection Route...

NDA-24298 CHAPTER 4
Page 883
Issue 1

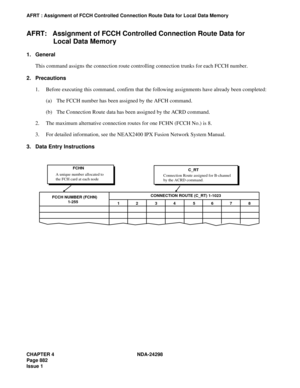

AFRT : Assignment of FCCH Controlled Connection Route Data for Local Data Memory
4. Data Sheet
FCCH NUMBER (FCHN)
1-255CONNECTION ROUTE
(C_RT)
1-1023
12345678

CHAPTER 4 NDA-24298
Page 884
Issue 1

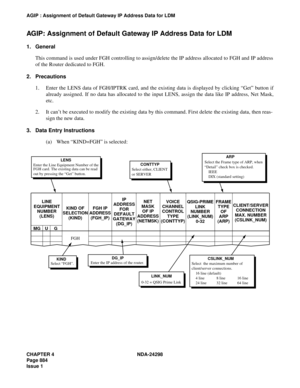

AGIP : Assignment of Default Gateway IP Address Data for LDM
AGIP: Assignment of Default Gateway IP Address Data for LDM
1. General
This command is used under FGH controlling to assign/delete the IP address allocated to FGH and IP address
of the Router dedicated to FGH.
2. Precautions
1. Enter the LENS data of FGH/IPTRK card, and the existing data is displayed by clicking “Get” button if
already assigned. If no data has allocated to the input LENS, assign the data...

NDA-24298 CHAPTER 4
Page 885
Issue 1

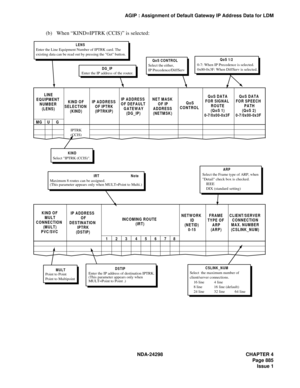

AGIP : Assignment of Default Gateway IP Address Data for LDM
(b) When “KIND=IPTRK (CCIS)” is selected:
KIND OF
SELECTION (KIND) LINE
EQUIPMENT
NUMBER
(LE N S)
MG U G
IPTRK (CCIS)
IP ADDRESS
OF IPTRK
(IPTRKIP)IP ADDRESS
OF DEFAULT
GATEWAY
(D G _IP)NET MASK
OF IP
ADDRESS
(NETM SK)QoS
CONTROLQoS DATA
FOR SIGNAL
ROUTE
(Q oS 1)
0-7/0x00-0x3FQoS DATA
FOR SPEECH
PATH
(Q oS 2)
0-7/0x00-0x3F
KIND
Select IPTRK (CCIS).
LENSEnter the Line Equipment Number of...

CHAPTER 4 NDA-24298
Page 886
Issue 1

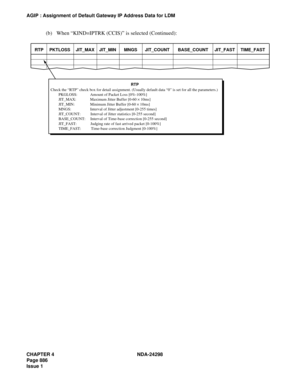

AGIP : Assignment of Default Gateway IP Address Data for LDM
(b) When “KIND=IPTRK (CCIS)” is selected (Continued):
RTP PKTLOSS JIT_MAX JIT_MIN MNGS JIT_COUNT JIT_FAST TIME_FASTBASE_COUNT
RTP
Check the “RTP” check box for detail assignment. (Usually default data “0” is set for all the parameters.)
        PKGLOSS:             Amount of Packet Loss [0%-100%]
        JIT_MAX:              Maximum Jitter Buffer [0-60 × 10ms]...
