Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions

Operating Instructions
(For Panasonic Printing System Ver. 6)
Digital Copier
Before operating this equipment, please read
these instructions completely and keep these
operating instructions for future reference.
English
DP-2000/2500/3000
Options
DA-AR250/AS200/DS200/DS205/DS210/DS215/ES200/FG230/FG231/FK200/FK210/FS200/MD200
DA-NE200/PC200/PC210/SM08B/SM16B/SM28B/UC200/XN200/XT200;UE-410047/410048/403171
Before Use Printer Section
Troubleshooting

2
Energy Star
The DP-2000/2500/3000 copier complies with Tier 2 of the Environmental Protection Agencys
Energy Star Program. This voluntary program specifies specific energy consumption and usage
standards for copiers. These copiers will automatically “power down” after a specified period of
non-use. The use of these Energy Star compliant copiers will reduce energy consumption and
ultimately benefit the environment.
The default functions can be adjusted depending on your office requirements. Please...

3
Before Use
Table of Contents
Table of Contents ........................................................................................................... 3

Before Use  ................................................................................ 3
Precautions .....................................................................................................................4
External View and Control Panel .................................................................................. 5...

4
Precautions
For U.S.A.

 Read the software license agreement before installing the Printer Driver.

 Read the following precautions which are found in the Copier Operating Instructions.
 Installation
 Ventilation
 Handling
 Toner and Paper

    For Your Safety
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules.  These limits are designed to provide reasonable protection against harmful
interference when the...

5
Before Use

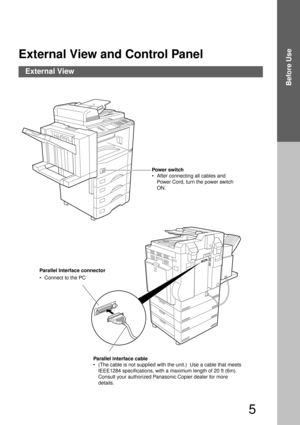

External View and Control Panel
External View
Power switch
After connecting all cables and
Power Cord, turn the power switch
ON.
Parallel Interface connector
Connect to the PC
Parallel interface cable
(The cable is not supplied with the unit.)  Use a cable that meets
IEEE1284 specifications, with a maximum length of 20 ft (6m).
Consult your authorized Panasonic Copier dealer for more
details.

External View and Control Panel
6
Control Panel (For DP-2500/3000)
CONTRASTLCD
REDIAL/PAUSE
LINESELECTFLASH/
SUB-ADDR
SET
MON.VOL. ORIGINALCOPY
SIZESIZE
LEDGER
LEGAL
INVOICELETTER
LETTER
MONITOR
RESET
START
123
456
789
0
PQRSGHI
TUVJKL ABC
WXYZMNODEF
STOPON LINE
ON LINE
DATAFAX
INTERNET
PRINTER
MULTI-SIZEFEEDSORT
ALARMACTIVE
CLEAR
ENERGY SAVER
DP-2500
INTERRUPTFUNCTION
TONE
COPYADD TONER
ON LINE
OFF LINE
SECURITY PRINT
CANCELSwitch the printer from off-line status to on-line status.
Switch the printer to...

7
Before Use
Control Panel (For DP-2000)
REDIAL/PAUSE
ABBR FLASH/
SUB-ADDR
SET ORIGINALCOPY
SIZESIZE
LEDGER
LEGAL
INVOICELETTER
LETTER
MONITOR
RESET
START
123
456
789
0
PQRSGHI
TUVJKL ABC
WXYZMNODEF
STOPON LINE
ON LINE
DATA 2SIDED
COPY1SIDEDCOPY
FAX
PRINTER
MULTI-SIZE FEED
RESOLUTIONLINE SELECT
ALARMACTIVE
CLEAR
ENERGY SAVER
DP-2000
INTERRUPTFUNCTION
TONE
COPY
SORT
STAPLE
SHIFT
OUTPUTTRAYDIRECTORYSERCH
PAPERTRAYLIGHTERDARKER
ZOOM/VOL
PHOTOTEXT/PHOTOTEXTINTERNET
P1zP2 P3SPACE
S-FINEFINEP4SYMBOLS
P5CAPS...

8
NOTE

9
Printer Section
Digital Copier
Printer Section
DP-2000/2500/3000
Troubleshooting
Before Use Printer Section
Troubleshooting

10
Next
OK
OK
1
Click on the Start button, and click on Run....
2
The Run dialog box appears.
Insert CD-ROM containing the LPR folder.
In the Open: field, type:
D:\English\Lpr\Setup.exe
(When drive D is CD-ROM drive.)
Click on the                  button.
3
The Welcome dialog box appears.
Click on the                      button.
4
The setup program copies the necessary files onto
your Hard Disk.
When the setup process is completed, a message
is displayed prompting you to restart your
computer.
It is...
