Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions

Installation and Configuration (Windows NT 4.0)
51
Printer Section


Handling Tab
Sorter
Select whether to Stack, Sort, Rotate-Sort or Shift-Sort when printing multiple copies.
Note: When the Staple is set to On, the Rotate-Sort and Shift-Sort is not activated even if it is selected.
Printing on both sides (Duplex)
Select duplex printing for printing on both sides.
Note 1) Duplex Printing is allowed only when the Dual-Path Exit Guide Unit, Paper Transport Unit and
Automatic Duplex Unit...

Installation and Configuration (Windows NT 4.0)
52
Staple
Specifying staple printing is allowed when the output tray is set to Finisher.
Note 1) Staple printing is allowed only with Electronic Sorting Board (DA-ES200 : For DP-2000 only) and
1-Bin Finisher (DA-FS200) installed.
Note 2) Select Sort in the sort menu.
Note 3) Paper is stapled at the top left or at top right.  (See table below.)
Letter
A4
Letter
A4
Letter
A4
Ledger
Legal
A3
FLS
B4
Ledger
Legal
A3
FLS
B4
Letter/A4
Ledger/Legal/
A3/FLS/B4...

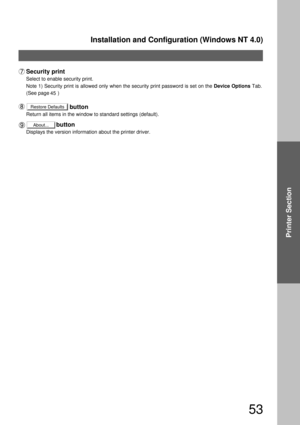

Installation and Configuration (Windows NT 4.0)
53
Printer Section
Security print
Select to enable security print.
Note 1) Security print is allowed only when the security print password is set on the Device Options Tab.
(See page      )
                          button
Return all items in the window to standard settings (default).
                  button
Displays the version information about the printer driver.
About...
Restore Defaults
45

Installation and Configuration (Windows NT 4.0)
54
NOTE
Restore Defaults
About...

Quality Tab
  dpi (dot per inch) means the number of dots contained in one inch.  The higher the
value is, the higher the resolution becomes.
Resolution
Select the printer resolution (300/600dpi).
Text Color
Select the print control of colored text.
Print all text as black
All colored text is printed as solid black.
Print colored text with halftone
Colored text is printed using shades of gray....

Installation and Configuration (Windows NT 4.0)
55
Printer Section
Restore Defaults
About...

Fonts Tab
Use printer fonts instead of TrueType fonts
Prints using printer fonts, substituting for the TrueType fonts used in the original document.
The substituting printer font can be set from the Font Substitution Table.
Always use TrueType fonts
Always uses TrueType fonts without substituting them with printer fonts.
                          button
Return all items in the window to standard....

Installation and Configuration (Windows NT 4.0)
56
Setting the default Output Tray on the Device
REDIAL/PAUSE
ABBR FLASH/SUB-ADDR
SET ORIGINALCOPY
SIZESIZE
LEDGER
LEGAL
INVOICELETTER
LETTER
MONITOR
RESET
START
123
456
789
0
PQRSGHI
TUVJKL ABC
WXYZMNODEF
STOPON LINE
ON LINE
DATA 2SIDED
COPY1SIDEDCOPY
FAX
PRINTER
MULTI-SIZE FEED
RESOLUTIONLINE SELECT
ALARMACTIVE
CLEAR
ENERGY SAVERDP-2000INTERRUPTFUNCTION
TONE
COPY
SORT
STAPLE
SHIFT
OUTPUTTRAYDIRECTORYSERCH
PAPERTRAYLIGHTERDARKER
ZOOM/VOL...

57
Printer Section
Installation and Configuration (Windows 2000)
Installing the Printer Driver
Next
Double-click the Add Printer icon.
Click the                      button.
Open the Printers dialog box
Click the Start button.
Place the cursor on Settings and click Printers. Log in using an account with the authority to change system settings (e.g. Administrator).
About Windows 2000
Panasonic has performed operational tests on the Document Scanner, Status Monitor and Printing
System - software using...

Installation and Configuration (Windows 2000)
58
Next
Next
Next6
•  For local printer, select a Printer Port and click the
                        button. Then proceed to step 13.
 For network printer, select  Create a new port to
Standard TCP/IP Port and click the
 button.
5
Click the                       button.
4
Select  Local printer  and click the
button.
Specify Network Printer for installing a printer on
server upon network. Refer to the manual about
Windows 2000.
Even...

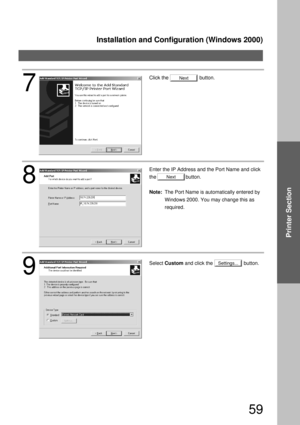

Installation and Configuration (Windows 2000)
59
Printer Section
Settings...
Next
Click the                      button.
9
Select Custom and click the                      button.
8
Enter the IP Address and the Port Name and click
the                     button.
Note:The Port Name is automatically entered by
Windows 2000. You may change this as
required.
Next
7

Installation and Configuration (Windows 2000)
60
Next
Finish
Select LPR on Protocol menu.
Enter the Queue Name and select LPR Byte
Counting Enabled on LPR Settings menu.
Click the                      button.
12
Click the                      button.
11
Click the                      button.
OK
10
