Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions
Here you can view all the pages of manual Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions. The Panasonic manuals for Copier are available online for free. You can easily download all the documents as PDF.
Page 21
Installation and Configuration (Windows 95/98/Me) 21 Printer Section Restore Defaults Device Options Tab Security Print Password Set the password for Security Print, to enable the feature. Duplex Unit (Standard on DP-3000) Check this checkbox if the Automatic Duplex Unit (DA-MD200) is installed. Inner Tray Check this checkbox if the Exit Tray (Inner) and the Dual-Path Exit Guide Unit (DA-XN200/FX200) are installed. Specifying inner bins, Inner 1 and Inner 2, is allowed for printing on the printer....
Page 22
Installation and Configuration (Windows 95/98/Me) 22 About... NOTE button Displays the version information about the printer driver. Device Options Tab is specified in the printer properties.
Page 23

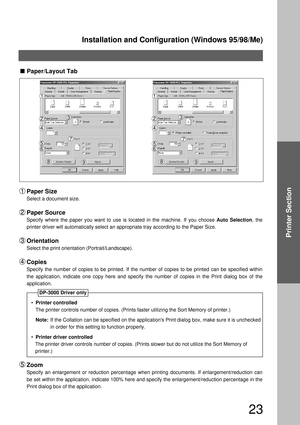

Installation and Configuration (Windows 95/98/Me) 23 Printer Section Paper/Layout Tab Paper Size Select a document size. Paper Source Specify where the paper you want to use is located in the machine. If you choose Auto Selection, the printer driver will automatically select an appropriate tray according to the Paper Size. Orientation Select the print orientation (Portrait/Landscape). Copies Specify the number of copies to be printed. If the number of copies to be printed can be specified within...
Page 24
Installation and Configuration (Windows 95/98/Me) 24 2 in 1 - Pattern 12 in 1 - Pattern 2 4 in 1 - Pattern 1 12 12 21 34 4 in 1 - Pattern 3 21 43 4 in 1 - Pattern 4 31 42 4 in 1 - Pattern 2 13 24 Magnify Select a fixed enlargement/reduction ratio according to the paper size. Specifying the magnification ratio changes the Zoom to display the actual enlargement/reduction percentage. N in 1 Specify the layout pattern for printing multiple documents on a single sheet of paper. Selecting 2 in 1 or 4 in 1...
Page 25
Installation and Configuration (Windows 95/98/Me) 25 Printer Section Handling Tab Sorter Select whether to Stack, Sort, Rotate-Sort or Shift-Sort when printing multiple copies. Note: When the Staple is set to On, the Rotate-Sort and Shift-Sort is not activated even if it is selected. Printing on both sides (Duplex) Select duplex printing for printing on both sides. Note 1) Duplex Printing is allowed only when the Dual-Path Exit Guide Unit, Paper Transport Unit and Automatic Duplex Unit...
Page 26
Installation and Configuration (Windows 95/98/Me) 26 Staple Specifying staple printing is allowed when the output tray is set to Finisher. Note 1) Staple printing is allowed only with Electronic Sorting Board (DA-ES200 : For DP-2000 only) and 1-Bin Finisher (DA-FS200) installed. Note 2) Select Sort in the sort menu. Note 3) Paper is stapled at the top left or at top right. (See table below.) Letter A4 Letter A4 Letter A4 Ledger Legal A3 FLS B4 Ledger Legal A3 FLS B4 Letter/A4 Ledger/Legal/ A3/FLS/B4...
Page 27
Installation and Configuration (Windows 95/98/Me) 27 Printer Section Edit Image Name Table... About... Restore Defaults Edit Image Name Table... Image Overlay Select if you want to use the Overlay feature for printing. Checking the Save As Overlay check box will save the page to be printed as an overlay image to the selected Image Name. To Save an Overlay Image 1. Create or open an existing file from your application. 2. When you are ready to save the page as an Overlay Image, from the Menu bar,...
Page 28

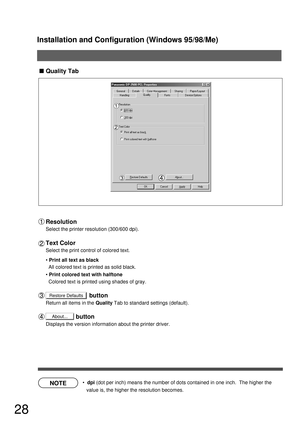

Installation and Configuration (Windows 95/98/Me) 28 NOTE Restore Defaults About... Quality Tab dpi (dot per inch) means the number of dots contained in one inch. The higher the value is, the higher the resolution becomes. Resolution Select the printer resolution (300/600 dpi). Text Color Select the print control of colored text. Print all text as black All colored text is printed as solid black. Print colored text with halftone Colored text is printed using shades of gray....
Page 29
Installation and Configuration (Windows 95/98/Me) 29 Printer Section Restore Defaults About... Edit Substiution Table Fonts Tab Use printer fonts instead of TrueType fonts Prints using printer fonts, substituting for the TrueType fonts used in the original document. The substituting printer font can be set with the Font Substitution Table. button Displays the Font Substitution Table. In the original setting, the Font Substitution Table is set to substitute TrueType...
Page 30
Installation and Configuration (Windows 95/98/Me) 30 Setting the default Output Tray on the Device REDIAL/PAUSE ABBR FLASH/SUB-ADDR SET ORIGINALCOPY SIZESIZE LEDGER LEGAL INVOICELETTER LETTER MONITOR RESET START 123 456 789 0 PQRSGHI TUVJKL ABC WXYZMNODEF STOPON LINE ON LINE DATA 2SIDED COPY1SIDEDCOPY FAX PRINTER MULTI-SIZE FEED RESOLUTIONLINE SELECT ALARMACTIVE CLEAR ENERGY SAVERDP-2000INTERRUPTFUNCTION TONE COPY SORT STAPLE SHIFT OUTPUTTRAYDIRECTORYSERCH PAPERTRAYLIGHTERDARKER ZOOM/VOL...
