Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions

Installation and Configuration (Windows 95/98/Me)
11
Printer Section
Installing the Printer Driver
Next
Next
1
Open the Printers dialog box.
     Click the Start button.
     Place the cursor on Settings and click Printers.
2
Double-click the Add Printer icon.
3
Click the                      button.
4
Select Local printer and click the
button.
Network printer is specified when a printer on the
network is installed.
Refer to the Windows 95/98/Me users manual
for details.
If you are using the LPR...

Installation and Configuration (Windows 95/98/Me)
12
Next
Next
OK
Have Disk...5
Insert the CD-ROM containing the printer driver.
Click the                             button.
6
Specify the drive name and type
D:\ENGLISH\DRIVER\WIN9X.
(When drive D is the CD-ROM drive.)
Click the                      button.
7
Select the device (Panasonic DP-2000 PCL ,
Panasonic DP-2500 PCL or Panasonic DP-3000
PCL).
Click the                      button.
8
Select LPT1.
Click the                      button.

Installation and Configuration (Windows 95/98/Me)
13
Printer Section
9
In response to Do you want your Windows-
based programs to use this printer as the
default printer?, select Yes or No.
Click the                      button
10Finish
Finish
Select Yes (recommended) and click the
                     button.
  Test printing starts.
  Default (initial setting) for paper size is Letter
        .
Select No when skipping test printing, and click
the                      button.
Next

Installation and Configuration (Windows 95/98/Me)
14
11
The following step is to Register the LPR Port. for
network printing.
Before proceeding, ensure that the Printer is
installed, connected to the Network, is turned ON
and operating properly.
Right-click on the Panasonic DP-2500 PCL icon
in the Printers folder and select Properties from
the pop-up menu.
The Panasonic DP-2500 PCL Properties dialog
box appears.
12
The required files are copied.
The Printers icon is now displayed in the Printers...

Installation and Configuration (Windows 95/98/Me)
15
Printer Section
16
The screen reverts to DP-2500 PCL Properties.
Check that the Print to the following port:was
changed as entered, and click on the Apply button
first and then on the                       button.
15
The LPR Port Name dialog box appears.
Type the IP Address of the DP-2500 and lpas the
queue name separated by a :
Example: 192.168.3.23:lp
Click on the                        button. If an error occurs
because the queue name was...

Installation and Configuration (Windows 95/98/Me)
16
Configuring the Printer Driver Settings
NOTE
To change the printer settings,  open the dialog box of the printer properties by the following steps.
  Upon printing, changing the properties Paper/Layout, Handling, Quality and Device
Options is allowed by clicking Properties in the print dialog box of an application.
  Color Management Tab in the property dialog box is not used for the DP-2000/2500/
3000.
  Sharing Tab in the property dialog box is...

Installation and Configuration (Windows 95/98/Me)
17
Printer Section

Browse...
Print Test Page

General Tab
Comment
Enter comments to the properties, if any.
If another user sets up this printer on his or her computer when sharing the printer, the comment specified
here will also appear on that computer. However, the comment displayed for an already set-up user will
remain unchanged even if the comment is modified later.
Separator page
Inserts a separator page for every document to be printed. This...

Installation and Configuration (Windows 95/98/Me)
18
Capture Printer Port...End Capture...
Delete Port...
New Driver...

Details Tab
Print to the following port
Displays either the port to which the printer is connected or the path to the network printer.
To change the printing destination, either select the printing destination port from the list or enter the
network path here.
Print using the following driver
Displays the type of the printer driver. Specify the printer being used or a printer model...

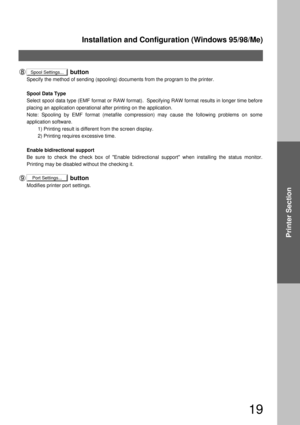

Installation and Configuration (Windows 95/98/Me)
19
Printer Section
                          button
Specify the method of sending (spooling) documents from the program to the printer.
Spool Data Type
Select spool data type (EMF format or RAW format).  Specifying RAW format results in longer time before
placing an application operational after printing on the application.
Note: Spooling by EMF format (metafile compression) may cause the following problems on some
application software.
        1)...

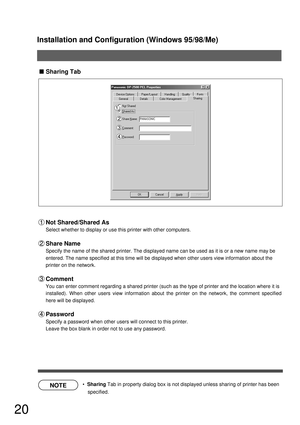

Installation and Configuration (Windows 95/98/Me)
20
NOTE

Sharing Tab
  Sharing Tab in property dialog box is not displayed unless sharing of printer has been
specified.
Not Shared/Shared As
Select whether to display or use this printer with other computers.
Share Name
Specify the name of the shared printer. The displayed name can be used as it is or a new name may be
entered. The name specified at this time will be displayed when other users view information about the
printer on the network.
Comment...
