Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions
Here you can view all the pages of manual Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions. The Panasonic manuals for Copier are available online for free. You can easily download all the documents as PDF.
Page 41
Installation and Configuration (Windows NT 4.0) 41 Printer Section NOTE Delete Port...Add Port... Configure Port... Ports Tab Print to the following port(s) Displays a list of available ports for printing (Port), their status (Description) and printers that are connected to these ports (Printer). / button Adds/deletes a new port or a new network port. button Configures the selected port. In case of a parallel port,...

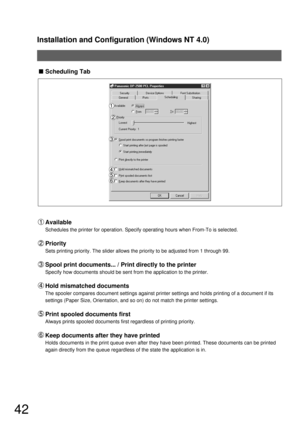

Page 42
Installation and Configuration (Windows NT 4.0) 42 Scheduling Tab Available Schedules the printer for operation. Specify operating hours when From-To is selected. Priority Sets printing priority. The slider allows the priority to be adjusted from 1 through 99. Spool print documents... / Print directly to the printer Specify how documents should be sent from the application to the printer. Hold mismatched documents The spooler compares document settings against printer settings and holds printing of a...
Page 43
Installation and Configuration (Windows NT 4.0) 43 Printer Section NOTE Sharing Tab Not Shared/Shared Select whether to display or use this printer on or with other computers. Share Name Specify the name of the shared printer. The displayed name can be used as it is or a new name may be entered. The name specified here will be displayed when other users on the network view information about the printer. Alternate Drivers Specify the operating systems of other computers that might share this printer. ...
Page 44
Installation and Configuration (Windows NT 4.0) 44 Permissions Auditing Ownership Security Tab button Set printer access privileges. button Displays the persons who used this printer and how they used. button Set the ownership of the printer. NOTE In order to utilize these features, you need to have selected Audit... from User Managers Policies and have enabled File and Object Access in the Audit Policy dialog box.
Page 45
Installation and Configuration (Windows NT 4.0) 45 Printer Section Restore Defaults Device Options Tab Security Print Password Set the password for Security Print, to enable the feature. Duplex Unit (Standard on DP-3000) Check this checkbox if the Automatic Duplex Unit (DA-MD200) is installed. Inner Tray Check this checkbox if the Exit Tray (Inner) and the Dual-Path Exit Guide Unit (DA-XN200/FX200) are installed. Specifying inner bins, Inner 1 and Inner 2, is allowed for printing on the printer. Outer...
Page 46
Installation and Configuration (Windows NT 4.0) 46 About... NOTE button Displays the version information about the printer driver. Device Options Tab is specified in the printer properties.
Page 47
Installation and Configuration (Windows NT 4.0) 47 Printer Section Font Substitution Tab Edit the Font Substitution Table. In the original setting, the Font Substitution Table is set to substitute TrueType fonts with the most similar printer fonts. However, if you wish to modify the substitution, select a font from the list of TrueType fonts displayed at the top and then select a corresponding Printer font from the Substituted printer fonts list box.
Page 48
Installation and Configuration (Windows NT 4.0) 48 Configuring the Printer Driver Settings (User) NOTE Properties... To change the printer settings, open the dialog box of the printer properties by the following steps. In Windows NT4.0, setting properties depends on the log-in accounts. This section describes properties to be specified by a user, upon executing a print operation on an application. See Configuring the Printer Driver Settings (Administrator) for details of administrator...
Page 49
Installation and Configuration (Windows NT 4.0) 49 Printer Section Paper/Layout Tab Paper Size Select a document size. Paper Source Specify where the paper you want to use is located in the machine. If you choose Auto Selection, the printer driver will automatically select an appropriate tray according to the Paper Size. Orientation Select the print orientation (Portrait/Landscape). Copies Specify the number of copies to be printed. If the number of copies to be printed can be specified within the...
Page 50
Installation and Configuration (Windows NT 4.0) 50 2 in 1 - Pattern 12 in 1 - Pattern 2 4 in 1 - Pattern 1 12 12 21 34 4 in 1 - Pattern 3 21 43 4 in 1 - Pattern 4 31 42 4 in 1 - Pattern 2 13 24 Magnify Select a fixed enlargement/reduction ratio according to the paper size. Specifying the magnification ratio changes the Zoom to display the actual enlargement/reduction percentage. N in 1 Specify the layout pattern for printing multiple documents on a single sheet of paper. Selecting 2 in 1 or 4 in 1...
