Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions

31
Printer Section
Installation and Configuration (Windows NT 4.0)
Installing the LPR (Line Printer Remote) Monitor
Click on the Start button, point to Settings, and
click Control Panel.
The Control Panel window appears.
Double-click on the Network applet.
The Network dialog box appears.
Click on the Services tab.
Verify whether the LPR Service is already installed.
(Indicated by Microsoft TCP/IP Printing shown in
the Network Services: list.)
If it is installed, skip to Installing the Printer Driver...

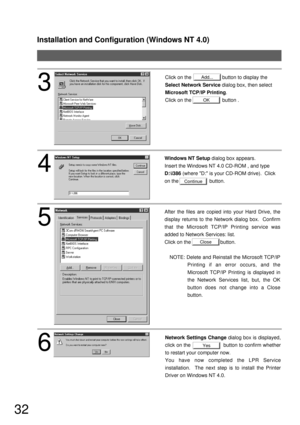

Installation and Configuration (Windows NT 4.0)
32
Close
Yes
Continue
4
Windows NT Setup dialog box appears.
Insert the Windows NT 4.0 CD-ROM , and type
D:\i386 (where D: is your CD-ROM drive).  Click
on the                      button.
5
After the files are copied into your Hard Drive, the
display returns to the Network dialog box.  Confirm
that the Microsoft TCP/IP Printing service was
added to Network Services: list.
Click on the                     button.
NOTE: Delete and Reinstall the...

Installation and Configuration (Windows NT 4.0)
33
Printer Section
Installing the Printer Driver
Next
Log in using an account with the authority to change system settings (e.g. Administrator).
1
Open the Printers dialog folder.
Click the Start button.
Place the cursor on Settings and click Printers.
2
Double-click the Add Printer icon.
3
Select My Computer and then click the
button.
  Network printer server is specified when a printer
on the network server is installed.  (See page      )
Refer to...

Installation and Configuration (Windows NT 4.0)
34
Add Port...
New Port
OK
Next
5
Printer Ports dialog box appears.
Select LPR Port and click on the
button.
6
Add LPR compatible printer dialog box appears.
Enter the IP Address of the Printer in the upper field,
and lp for the print queue name in the lower field.
Click on the                        button.
(Please wait while the wizard verifies the IP Address
and connectivity to the Network)
The Printer Ports dialog box...

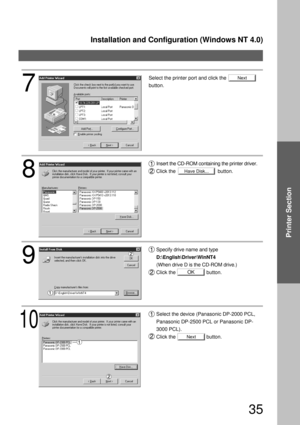

Installation and Configuration (Windows NT 4.0)
35
Printer Section
Next
Have Disk...
OK
Next
8
Insert the CD-ROM containing the printer driver.
Click the                              button.
9
Specify drive name and type
D:\English\Driver\WinNT4
(When drive D is the CD-ROM drive.)
Click the                      button.
10
Select the device (Panasonic DP-2000 PCL,
Panasonic DP-2500 PCL or Panasonic DP-
3000 PCL).
Click the                      button.
7
Select the printer port and click the
button.

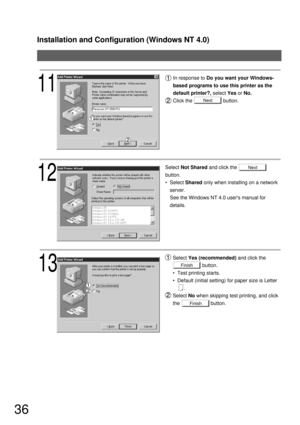

Installation and Configuration (Windows NT 4.0)
36
Next
Next
12
Select Not Shared and click the
button.
  Select Shared only when installing on a network
server.
See the Windows NT 4.0 users manual for
details.
13
11
In response to Do you want your Windows-
based programs to use this printer as the
default printer?, select Yes or No.
Click the                      button.
Finish
Finish
Select Yes (recommended) and click the
                     button.
  Test printing starts.
  Default (initial...

Installation and Configuration (Windows NT 4.0)
37
Printer Section
Notes: NOTE
14
The required files are copied.
The Printers icon is now displayed in the Printers
folder.
  Be sure to the delete the drivers of earlier versions before updating a driver.
  Restart Windows after updating drivers.

Installation and Configuration (Windows NT 4.0)
38
Configuring the Printer Driver Settings (Administrator)
NOTE
To change the printer settings,  open the dialog box of the printer properties by the following steps.
  In Windows NT4.0, setting the properties depends on the log-in account.  This section
describes properties to be specified by an administrator (system manager).
See Configuring the Printer Driver Settings (User) for details of user properties.
(See page      )
2
Click the Start button,...

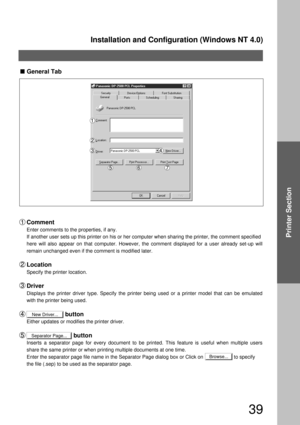

Installation and Configuration (Windows NT 4.0)
39
Printer Section
Separator Page...
New Driver...

General Tab
Comment
Enter comments to the properties, if any.
If another user sets up this printer on his or her computer when sharing the printer, the comment specified
here will also appear on that computer. However, the comment displayed for a user already set-up will
remain unchanged even if the comment is modified later.
Location
Specify the printer location.
Driver
Displays the printer driver type....

Installation and Configuration (Windows NT 4.0)
40
Print Processor...
Print Test Page
                            button
Specify the processor to be used for printing (Print Processor) and the data type (Default Data type).
The processor and data type affect the manner in which the printer functions in Windows NT. Normally
they do not need to be modified. However, modification might be necessary when the printer is used with
a special application.
                            button
Prints a test page....
