Panasonic Digital Imaging Systems DP-3510/4510/6010 Facsimile And Internet Fax Operating Instructions

Pre Installation Information
111
Internet Fax
Features

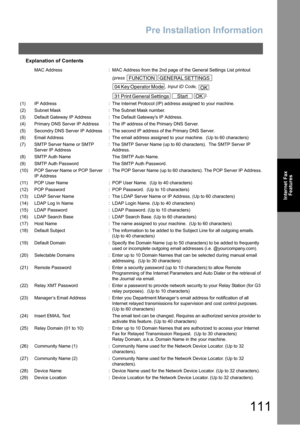

Explanation of Contents
MAC Address : MAC Address from the 2nd page of the General Settings List printout
(press
, Input ID Code,
).
(1) IP Address : The Internet Protocol (IP) address assigned to your machine.
(2) Subnet Mask : The Subnet Mask number.
(3) Default Gateway IP Address : The Default Gateways IP Address.
(4) Primary DNS Server IP Address : The IP address of the Primary DNS Server.
(5) Secondry DNS Server IP Address : The second IP...

112

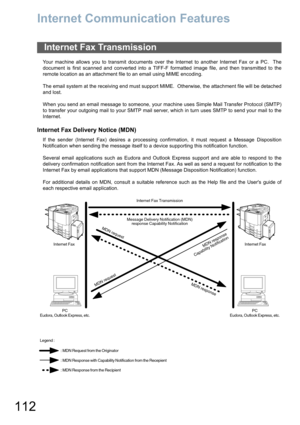

Internet Communication Features
Your machine allows you to transmit documents over the Internet to another Internet Fax or a PC.  The
document is first scanned and converted into a TIFF-F formatted image file, and then transmitted to the
remote location as an attachment file to an email using MIME encoding.
The email system at the receiving end must support MIME.  Otherwise, the attachment file will be detached
and lost.
When you send an email message to someone, your machine uses Simple Mail...

Internet Communication Features
113
Internet Fax
Features

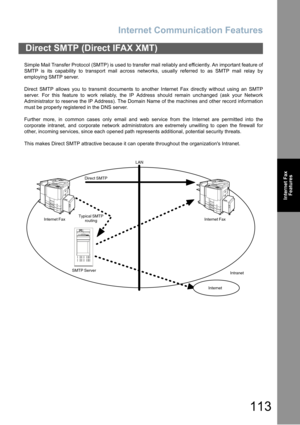

Simple Mail Transfer Protocol (SMTP) is used to transfer mail reliably and efficiently. An important feature of
SMTP is its capability to transport mail across networks, usually referred to as SMTP mail relay by
employing SMTP server.
Direct SMTP allows you to transmit documents to another Internet Fax directly without using an SMTP
server. For this feature to work reliably, the IP Address should remain unchanged (ask your Network
Administrator to...

Internet Communication Features
114

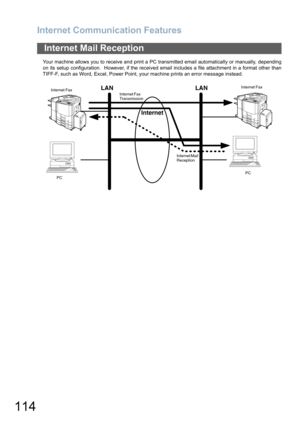

Your machine allows you to receive and print a PC transmitted email automatically or manually, depending
on its setup configuration.  However, if the received email includes a file attachment in a format other than
TIFF-F, such as Word, Excel, Power Point, your machine prints an error message instead.
Internet Mail Reception
Internet
Internet Fax
Transmission
Internet Mail
Reception
LAN LANInternet Fax Internet Fax
PCPC

Internet Communication Features
115
Internet Fax
Features

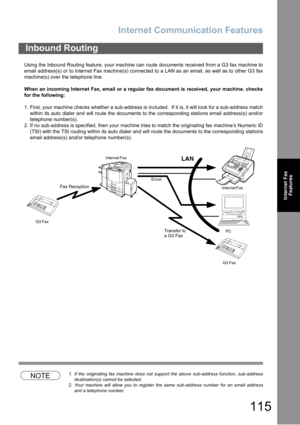

Using the Inbound Routing feature, your machine can route documents received from a G3 fax machine to
email address(s) or to Internet Fax machine(s) connected to a LAN as an email, as well as to other G3 fax
machine(s) over the telephone line.
When an incoming Internet Fax, email or a regular fax document is received, your machine. checks
for the following:
1. First, your machine checks whether a sub-address is included.  If it is, it will look...

Internet Communication Features
116
Your machine is capable of transferring all received Internet email or regular G3 fax documents to a pre-
programmed G3 fax or a PC destination.

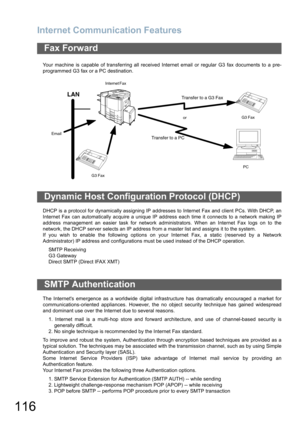

DHCP is a protocol for dynamically assigning IP addresses to Internet Fax and client PCs. With DHCP, an
Internet Fax can automatically acquire a unique IP address each time it connects to a network making IP
address management an easier task for network administrators. When an Internet Fax logs on to the
network, the DHCP...

Internet Communication Features
117
Internet Fax
Features

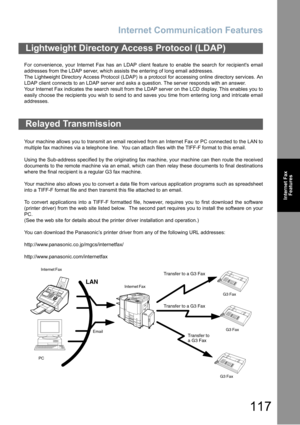

For convenience, your Internet Fax has an LDAP client feature to enable the search for recipients email
addresses from the LDAP server, which assists the entering of long email addresses.
The Lightweight Directory Access Protocol (LDAP) is a protocol for accessing online directory services. An
LDAP client connects to an LDAP server and asks a question. The server responds with an answer.
Your Internet Fax indicates the search result from the LDAP...

118
Important Information

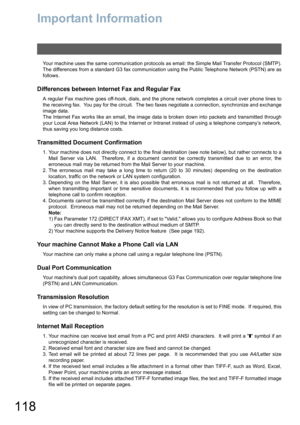

Your machine uses the same communication protocols as email: the Simple Mail Transfer Protocol (SMTP).
The differences from a standard G3 fax communication using the Public Telephone Network (PSTN) are as
follows.
Differences between Internet Fax and Regular Fax
A regular Fax machine goes off-hook, dials, and the phone network completes a circuit over phone lines to
the receiving fax.  You pay for the circuit.  The two faxes negotiate a connection, synchronize and exchange
image...

Important Information
119
Internet Fax
Features

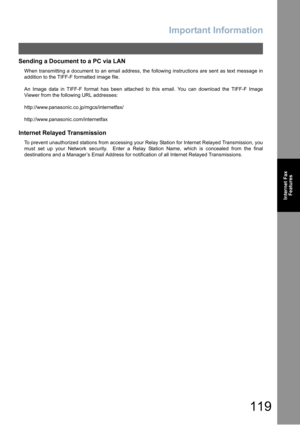

Sending a Document to a PC via LAN
When transmitting a document to an email address, the following instructions are sent as text message in
addition to the TIFF-F formatted image file.
An Image data in TIFF-F format has been attached to this email. You can download the TIFF-F Image
Viewer from the following URL addresses:
http://www.panasonic.co.jp/mgcs/internetfax/
http://www.panasonic.com/internetfax
Internet Relayed Transmission
To prevent unauthorized...

120
User Parameters

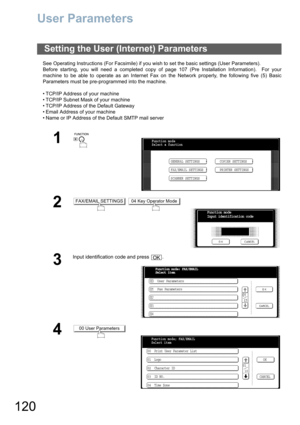

See Operating Instructions (For Facsimile) if you wish to set the basic settings (User Parameters).
Before starting, you will need a completed copy of page 107 (Pre Installation Information).  For your
machine to be able to operate as an Internet Fax on the Network properly, the following five (5) Basic
Parameters must be pre-programmed into the machine.
 TCP/IP Address of your machine
 TCP/IP Subnet Mask of your machine
 TCP/IP Address of the Default Gateway
 Email Address of...
