Panasonic Digital Imaging Systems DP-3510/4510/6010 Facsimile And Internet Fax Operating Instructions

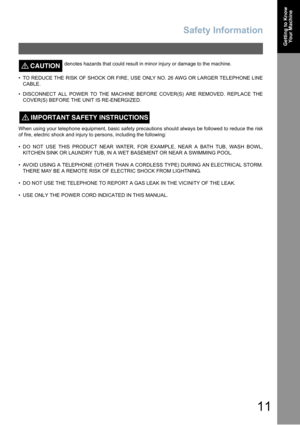

Safety Information
11
Getting to Know
Your Machine
CAUTION!denotes hazards that could result in minor injury or damage to the machine.
 TO REDUCE THE RISK OF SHOCK OR FIRE, USE ONLY NO. 26 AWG OR LARGER TELEPHONE LINE
CABLE.
 DISCONNECT ALL POWER TO THE MACHINE BEFORE COVER(S) ARE REMOVED. REPLACE THE
COVER(S) BEFORE THE UNIT IS RE-ENERGIZED.
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk
of fire, electric shock and injury to persons,...

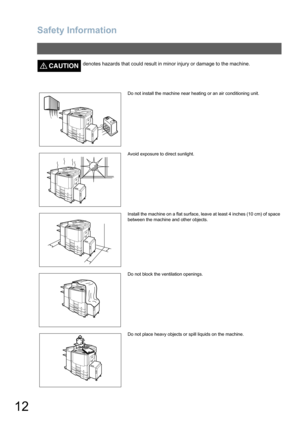

Safety Information
12
CAUTION!denotes hazards that could result in minor injury or damage to the machine.
Do not install the machine near heating or an air conditioning unit.
Avoid exposure to direct sunlight.
Install the machine on a flat surface, leave at least 4 inches (10 cm) of space
between the machine and other objects.
Do not block the ventilation openings.
Do not place heavy objects or spill liquids on the machine.

Safety Information
13
Getting to Know
Your Machine

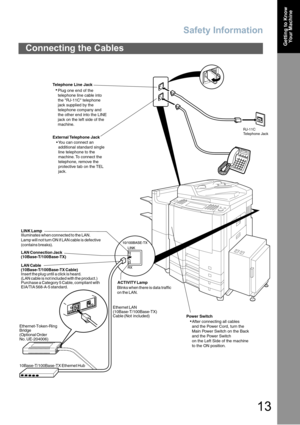

Connecting the Cables
ACTIVITY Lamp
Blinks when there is data traffic
on the LAN. LINK Lamp
Illuminates when connected to the LAN.
Lamp will not turn ON if LAN cable is defective
(contains breaks).
LAN Connection Jack
(10Base-T/100Base-TX)
LAN Cable
(10Base-T/100Base-TX Cable)
Insert the plug until a click is heard.
(LAN cable is not included with the product.)
Purchase a Category 5 Cable, compliant with
EIA/TIA 568-A-5 standard.
10Base-T/100Base-TX...

14

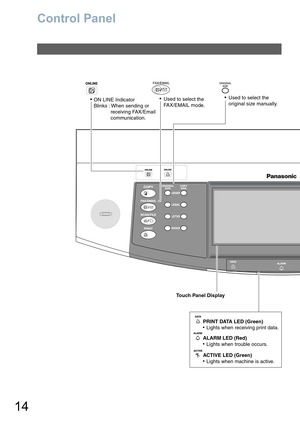

Control Panel
Used to select the
original size manually.
Lights when receiving print data.
Touch Panel Display
PRINT DATA LED (Green)
Lights when trouble occurs. ALARM LED (Red)
Lights when machine is active. ACTIVE LED (Green)
Used to select the
FAX/EMAIL mode.ON LINE Indicator
Blinks : When sending or
            receiving FAX/Email
            communication.

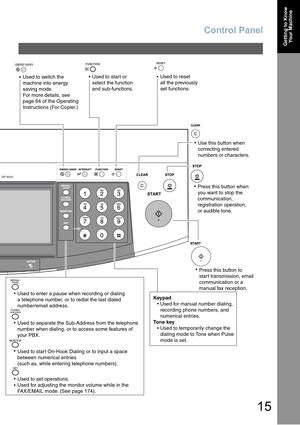

Control Panel
15
Getting to Know
Your Machine
Used to switch the
machine into energy
saving mode.
For more details, see
page 64 of the Operating
Instructions (For Copier.)Used to start or
select the function
and sub-functions.Used to reset
all the previously
set functions.
Use this button when
correcting entered
numbers or characters.
Press this button when
you want to stop the
communication,
registration operation,
or audible tone.
Press this button to
start transmission, email
communication or a...

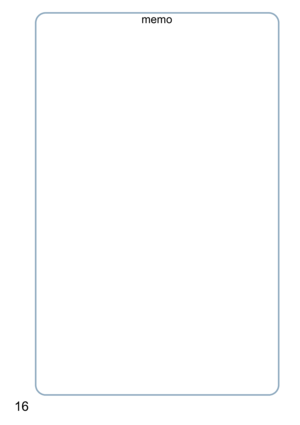

memo
16

17
Before Starting
Before Starting

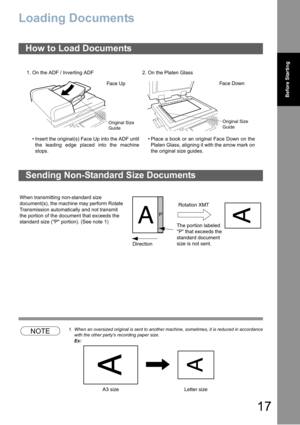

Loading Documents
NOTE1. When an oversized original is sent to another machine, sometimes, it is reduced in accordance
with the other partys recording paper size.
Ex:
How to Load Documents
1. On the ADF / Inverting ADF 2. On the Platen Glass
 Insert the original(s) Face Up into the ADF until
the leading edge placed into the machine
stops. Place a book or an original Face Down on the
Platen Glass, aligning it with the arrow mark on
the original size guides.
Sending...

18

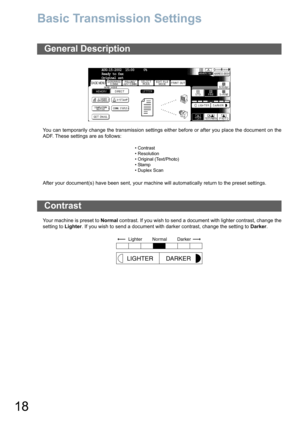

Basic Transmission Settings
You can temporarily change the transmission settings either before or after you place the document on the
ADF. These settings are as follows:
After your document(s) have been sent, your machine will automatically return to the preset settings.
Your machine is preset to Normal contrast. If you wish to send a document with lighter contrast, change the
setting to Lighter. If you wish to send a document with darker contrast, change the setting to Darker.
General Description
...

Basic Transmission Settings
19
Before Starting

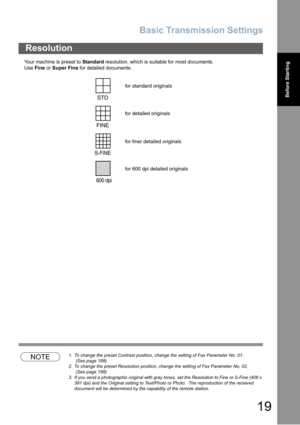

Your machine is preset to Standard resolution, which is suitable for most documents.
Use Fine or Super Fine for detailed documents.
NOTE1. To change the preset Contrast position, change the setting of Fax Parameter No. 01.
 (See page 188)
2. To change the preset Resolution position, change the setting of Fax Parameter No. 02.
 (See page 188)
3. If you send a photographic original with gray tones, set the Resolution to Fine or S-Fine (406 x
391 dpi) and...

Basic Transmission Settings
20

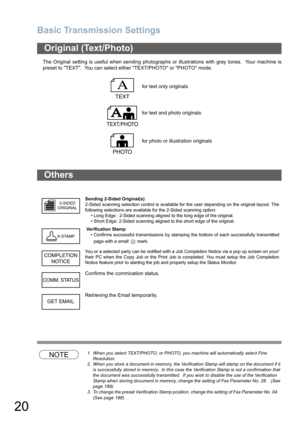

The Original setting is useful when sending photographs or illustrations with gray tones.  Your machine is
preset to TEXT.  You can select either TEXT/PHOTO or PHOTO mode.
NOTE1. When you select TEXT/PHOTO, or PHOTO, you machine will automatically select Fine
Resolution.
2. When you store a document in memory, the Verification Stamp will stamp on the document if it
is successfully stored in memory.  In this case the Verification Stamp is not a confirmation that
the...
