Panasonic Digital Imaging Systems DP-3510/4510/6010 Facsimile And Internet Fax Operating Instructions

Program Keys
51

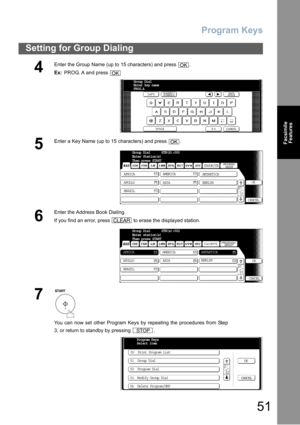

Setting for Group Dialing
Facsimile
Features
4
Enter the Group Name (up to 15 characters) and press  .
Ex: PROG. A and press
5
Enter a Key Name (up to 15 characters) and press  .
6
Enter the Address Book Dialing.
If you find an error, press   to erase the displayed station.
7
You can now set other Program Keys by repeating the procedures from Step
3, or return to standby by pressing  .
OK
OK
Group Dial
Enter key name
PROG.A
_
OK
Group Dial      STN(S):000
Enter Station(s)
Then press...

Program Keys
52
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.

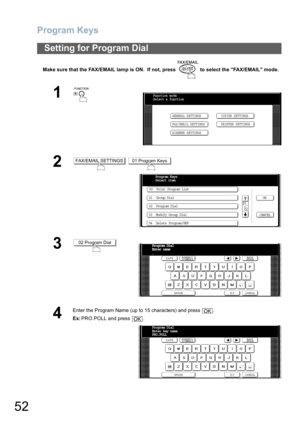

Setting for Program Dial
1

2
3
4
Enter the Program Name (up to 15 characters) and press  .
Ex:PRO.POLL and press  .
Function mode
Select a function
GENERAL SETTINGS
FAX/EMAIL SETTINGSCOPIER SETTINGS
PRINTER SETTINGS
SCANNER SETTINGS
FAX/EMAIL SETTINGS01 Program Keys
Program Keys
Select item
00  Print Program List
01  Group Dial
02  Program Dial
03  Modify Group Dial
04  Delete Program/GRPOK
CANCEL...

Program Keys
53

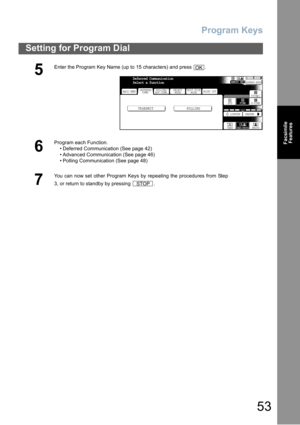

Setting for Program Dial
Facsimile
Features
5
Enter the Program Key Name (up to 15 characters) and press  .
6
Program each Function.
 Deferred Communication (See page 42)
 Advanced Communication (See page 46)
 Polling Communication (See page 48)
7
You can now set other Program Keys by repeating the procedures from Step
3, or return to standby by pressing  .
OK
BASIC MENU
TRANSMIT POLLING
PRINT OUT
STDFINE
TEXT/PHOTO
MEMORY XMTADDRESS BOOK
S-FINE 600dpi
LIGHTER DARKER
TEXT PHOTO...

Program Keys
54
If you have to change or erase any of the Group Dialing, follow the steps below.
To change the setting of Group Dialing
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.

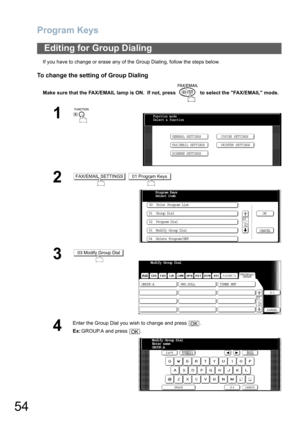

Editing for Group Dialing
1

2
3
4
Enter the Group Dial you wish to change and press  .
Ex:GROUP.A and press  .
Function mode
Select a function
GENERAL SETTINGS
FAX/EMAIL SETTINGSCOPIER SETTINGS
PRINTER SETTINGS
SCANNER SETTINGS
FAX/EMAIL SETTINGS01 Program Keys
Program Keys
Select...

Program Keys
55

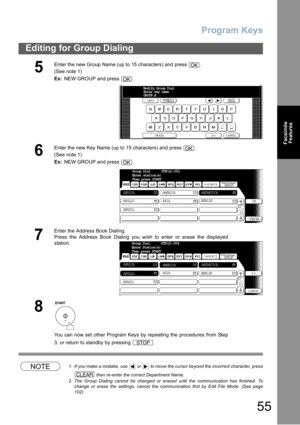

Editing for Group Dialing
Facsimile
Features
NOTE1. If you make a mistake, use   or   to move the cursor beyond the incorrect character, press
 then re-enter the correct Department Name.
2. The Group Dialing cannot be changed or erased until the communication has finished. To
change or erase the settings, cancel the communication first by Edit File Mode. (See page
102)
5
Enter the new Group Name (up to 15 characters) and press  .
(See note 1)
Ex: NEW GROUP and press  .
6
Enter the new...

Program Keys
56

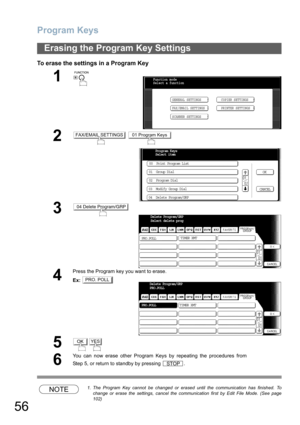

To erase the settings in a Program Key
NOTE1. The Program Key cannot be changed or erased until the communication has finished. To
change or erase the settings, cancel the communication first by Edit File Mode. (See page
102)
Erasing the Program Key Settings
1

2
3
4
Press the Program key you want to erase.
Ex:
5
6
You can now erase other Program Keys by repeating the procedures from
Step 5, or return to standby by pressing  .
Function mode
Select a function
GENERAL SETTINGS
FAX/EMAIL...

57
Facsimile
Features

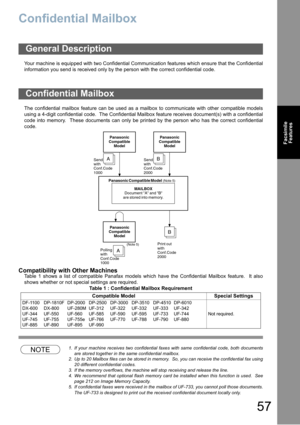

Confidential Mailbox
Your machine is equipped with two Confidential Communication features which ensure that the Confidential
information you send is received only by the person with the correct confidential code.
The confidential mailbox feature can be used as a mailbox to communicate with other compatible models
using a 4-digit confidential code.  The Confidential Mailbox feature receives document(s) with a confidential
code into memory.  These documents can only be printed by the...

Confidential Mailbox
58
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.

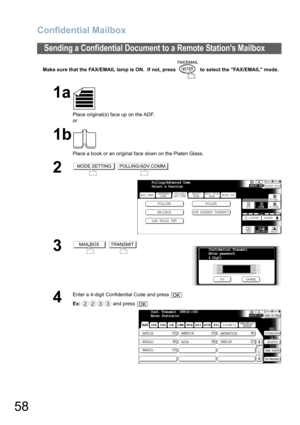

Sending a Confidential Document to a Remote Stations Mailbox
1a
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the Platen Glass.
2
3
4
Enter a 4-digit Confidential Code and press  .
Ex: and press
MODE SETTINGPOLLING/ADV.COMM.
BASIC MENU
POLLING POLLED
MAILBOX
SUB ADDRESS TRANSMIT
PRINT OUT
STDFINE
TEXT/PHOTO
MEMORY XMTADDRESS BOOK
S-FINE 600dpi
LIGHTER...

Confidential Mailbox
59

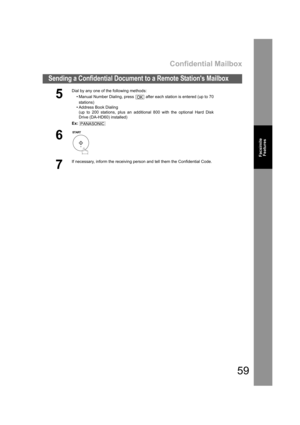

Sending a Confidential Document to a Remote Stations Mailbox
Facsimile
Features
5
Dial by any one of the following methods:
• Manual Number Dialing, press   after each station is entered (up to 70
stations)
• Address Book Dialing
(up to 200 stations, plus an additional 800 with the optional Hard Disk
Drive (DA-HD60) installed)
Ex:
6
7
If necessary, inform the receiving person and tell them the Confidential Code.
OK
PANASONIC
ti3.fm  59 ページ  ２００２年８月２０日　火曜日　午前９時５１分

Confidential Mailbox
60
After you have been informed that someone has transmitted a confidential document to a remote stations
mailbox, you can poll the confidential document from the remote station by following the procedure below.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
NOTE1. The confidential file will be erased automatically at the center station after being polled.
Polling a Confidential Document from a Remote Stations Mailbox
1
2
3
Enter a 4-digit...
