Panasonic Digital Imaging Systems DP-3510/4510/6010 Facsimile And Internet Fax Operating Instructions

Sending Documents

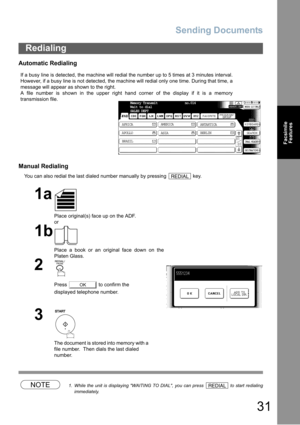

31
Facsimile
Features
Automatic Redialing
Manual Redialing
You can also redial the last dialed number manually by pressing   key.
NOTE1. While the unit is displaying WAITING TO DIAL, you can press   to start redialing
immediately.
Redialing
If a busy line is detected, the machine will redial the number up to 5 times at 3 minutes interval.
However, if a busy line is not detected, the machine will redial only one time. During that time, a
message will appear as shown to the right.
A file...

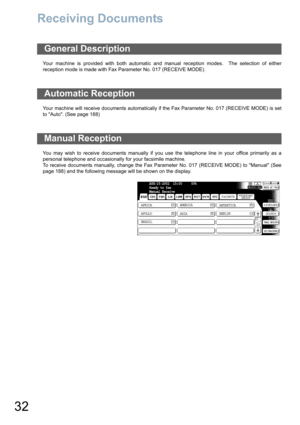

32
Receiving Documents
Your machine is provided with both automatic and manual reception modes.  The selection of either
reception mode is made with Fax Parameter No. 017 (RECEIVE MODE).
Your machine will receive documents automatically if the Fax Parameter No. 017 (RECEIVE MODE) is set
to Auto. (See page 188)
You may wish to receive documents manually if you use the telephone line in your office primarily as a
personal telephone and occasionally for your facsimile machine.
To receive documents...

Receiving Documents

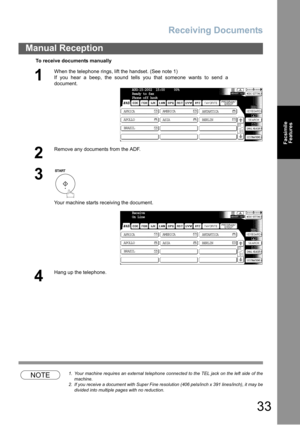

33
Manual Reception
Facsimile
Features
NOTE1. Your machine requires an external telephone connected to the TEL jack on the left side of the
machine.
2. If you receive a document with Super Fine resolution (406 pels/inch x 391 lines/inch), it may be
divided into multiple pages with no reduction.
To receive documents manually
1
When the telephone rings, lift the handset. (See note 1)
If you hear a beep, the sound tells you that someone wants to send a
document.
2
Remove any documents...

Receiving Documents

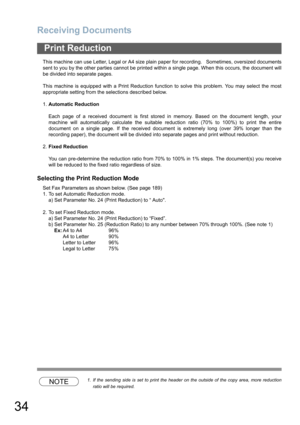

34
This machine can use Letter, Legal or A4 size plain paper for recording.   Sometimes, oversized documents
sent to you by the other parties cannot be printed within a single page. When this occurs, the document will
be divided into separate pages.
This machine is equipped with a Print Reduction function to solve this problem. You may select the most
appropriate setting from the selections described below.
1.Automatic Reduction
Each page of a received document is first stored in...

Receiving Documents

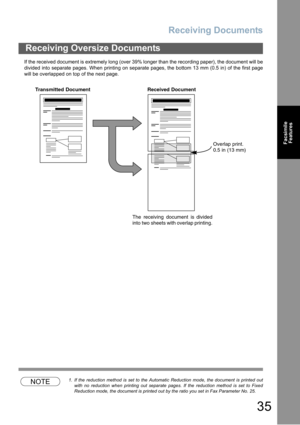

35
Facsimile
Features
If the received document is extremely long (over 39% longer than the recording paper), the document will be
divided into separate pages. When printing on separate pages, the bottom 13 mm (0.5 in) of the first page
will be overlapped on top of the next page.
NOTE1. If the reduction method is set to the Automatic Reduction mode, the document is printed out
with no reduction when printing out separate pages. If the reduction method is set to Fixed
Reduction mode,...

Receiving Documents

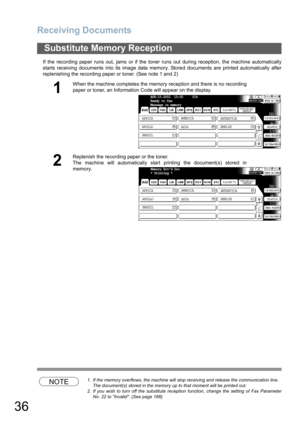

36
If the recording paper runs out, jams or if the toner runs out during reception, the machine automatically
starts receiving documents into its image data memory. Stored documents are printed automatically after
replenishing the recording paper or toner. (See note 1 and 2)
NOTE1. If the memory overflows, the machine will stop receiving and release the communication line.
The document(s) stored in the memory up to that moment will be printed out.
2. If you wish to turn off the...

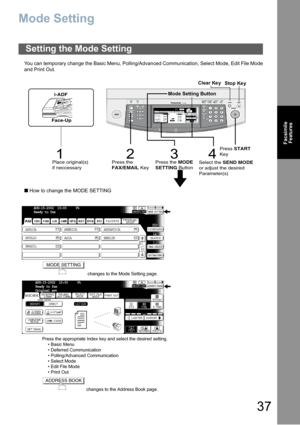

37
Facsimile
Features
Mode Setting
You can temporary change the Basic Menu, Polling/Advanced Communication, Select Mode, Edit File Mode
and Print Out.

 How to change the MODE SETTING
Setting the Mode Setting
  changes to the Mode Setting page.
Press the appropriate Index key and select the desired setting.
 Basic Menu
 Deferred Communication
 Polling/Advanced Communication
 Select Mode
 Edit File Mode
Print Out
 changes to the Address Book page.
32 1
Stop Ke y Clear Ke y
Place original(s)
if...

Mode Setting

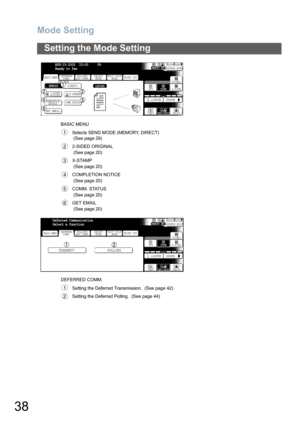

38
Setting the Mode Setting
BASIC MENU
Selects SEND MODE (MEMORY, DIRECT)
 (See page 29)
2-SIDED ORIGINAL
 (See page 20)
X-STAMP
 (See page 20)
COMPLETION NOTICE
 (See page 20)
COMM. STATUS
 (See page 20)
GET EMAIL
 (See page 20)
DEFERRED COMM.
Setting the Deferred Transmission.  (See page 42)
Setting the Deferred Polling.  (See page 44)
BASIC MENUPRINT OUT
STDFINE
TEXT/PHOTO
MEMORY XMTADDRESS BOOK
S-FINE 600dpi
LIGHTER DARKER
TEXT PHOTODIRECT
GET EMAILX-STAMP
COMM.STATUS
MEMORY
LEDGER...

Mode Setting

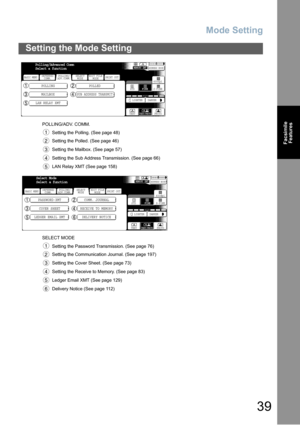

39
Setting the Mode Setting
Facsimile
Features
POLLING/ADV. COMM.
 Setting the Polling. (See page 48)
 Setting the Polled. (See page 46)
 Setting the Mailbox. (See page 57)
 Setting the Sub Address Transmission. (See page 66)
 LAN Relay XMT (See page 158)
SELECT MODE
 Setting the Password Transmission. (See page 76)
 Setting the Communication Journal. (See page 197)
 Setting the Cover Sheet. (See page 73)
 Setting the Receive to Memory. (See page 83)
 Ledger Email XMT (See page 129)...

Mode Setting

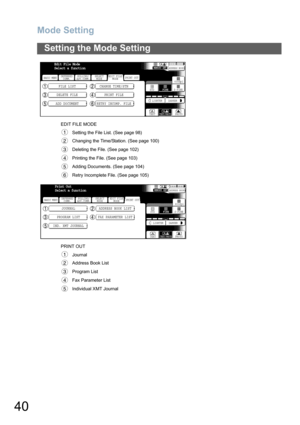

40
Setting the Mode Setting
EDIT FILE MODE
Setting the File List. (See page 98)
Changing the Time/Station. (See page 100)
Deleting the File. (See page 102)
Printing the File. (See page 103)
Adding Documents. (See page 104)
Retry Incomplete File. (See page 105)
PRINT OUT
Journal
Address Book List
Program List
Fax Parameter List
Individual XMT Journal
BASIC MENU
DELETE FILE PRINT FILEFILE LIST CHANGE TIME/STN
ADD DOCUMENT RETRY INCOMP. FILE
PRINT OUT
STDFINE
TEXT/PHOTO
MEMORY XMTADDRESS BOOK...
