Panasonic Digital Imaging Systems DP-3510/4510/6010 Facsimile And Internet Fax Operating Instructions

41
Facsimile
Features
Batch Transmission
To reduce transmission time and cost, this feature allows your machine to accumulate different documents
for the same destination(s) to be transmitted in a single phone call.
Real-Time Batch Transmission
During memory transmission, your machine searches its memory for reserved files (up to 5 files) to transmit
to the same destination, automatically batching and transmitting them in a single phone call.
The following is an example of Real-time Batch Transmission....

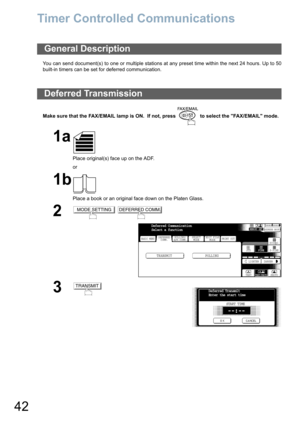

42
Timer Controlled Communications
You can send document(s) to one or multiple stations at any preset time within the next 24 hours. Up to 50
built-in timers can be set for deferred communication.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
General Description
Deferred Transmission
1a
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the Platen Glass.
2
3
MODE SETTINGDEFERRED COMM.
BASIC MENU
TRANSMIT POLLING
PRINT OUT...

Timer Controlled Communications

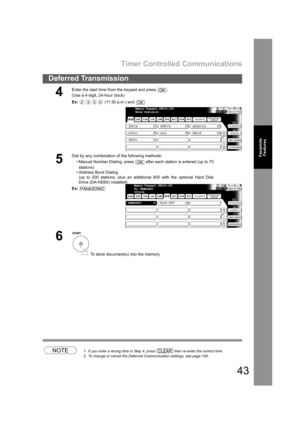

43
Deferred Transmission
Facsimile
Features
NOTE1. If you enter a wrong time in Step 4, press   then re-enter the correct time.
2. To change or cancel the Deferred Communication settings, see page 100.
4
Enter the start time from the keypad and press  .
(Use a 4-digit, 24-hour clock)
Ex: (11:30 p.m.) and
5
Dial by any combination of the following methods:
• Manual Number Dialing, press   after each station is entered (up to 70
stations)
• Address Book Dialing
(up to 200...

Timer Controlled Communications

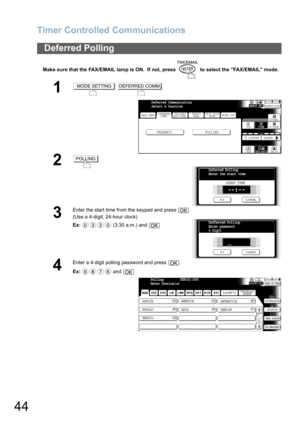

44
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
Deferred Polling
1
2
3
Enter the start time from the keypad and press  .
(Use a 4-digit, 24-hour clock)
Ex: (3:30 a.m.) and
4
Enter a 4-digit polling password and press  .
Ex: and
MODE SETTINGDEFERRED COMM.
BASIC MENU
TRANSMIT POLLING
PRINT OUT
STDFINE
TEXT/PHOTO
MEMORY XMTADDRESS BOOK
S-FINE 600dpi
LIGHTER DARKER
TEXT PHOTO DEFERRED
COMM.POLLING/
ADV.COMM.SELECT
MODEEDIT FILE...

Timer Controlled Communications

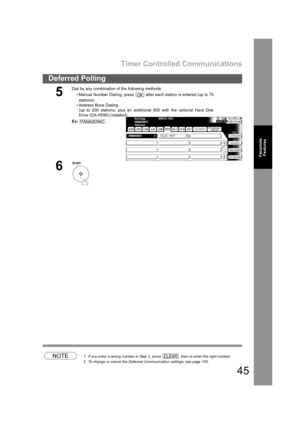

45
Deferred Polling
Facsimile
Features
NOTE1. If you enter a wrong number in Step 3, press  , then re-enter the right number.
2. To change or cancel the Deferred Communication settings, see page 100.
5
Dial by any combination of the following methods:
• Manual Number Dialing, press   after each station is entered (up to 70
stations)
• Address Book Dialing
(up to 200 stations, plus an additional 800 with the optional Hard Disk
Drive (DA-HD60) installed)
Ex:
6
OK...

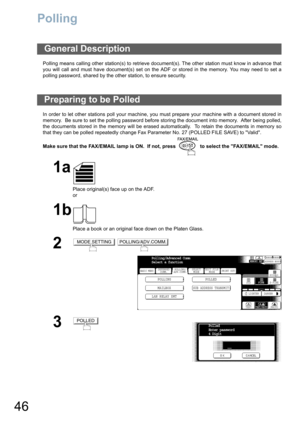

46
Polling
Polling means calling other station(s) to retrieve document(s). The other station must know in advance that
you will call and must have document(s) set on the ADF or stored in the memory. You may need to set a
polling password, shared by the other station, to ensure security.
In order to let other stations poll your machine, you must prepare your machine with a document stored in
memory.  Be sure to set the polling password before storing the document into memory.  After being polled,
the...

Polling

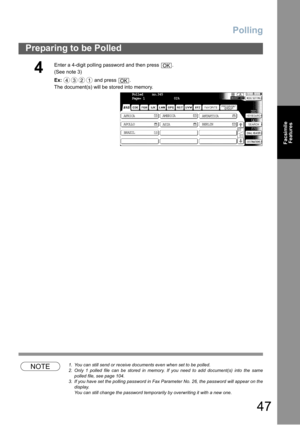

47
Preparing to be Polled
Facsimile
Features
NOTE1. You can still send or receive documents even when set to be polled.
2. Only 1 polled file can be stored in memory. If you need to add document(s) into the same
polled file, see page 104.
3. If you have set the polling password in Fax Parameter No. 26, the password will appear on the
display.
You can still change the password temporarily by overwriting it with a new one.
4
Enter a 4-digit polling password and then press  .
(See note 3)
Ex: and...

Polling

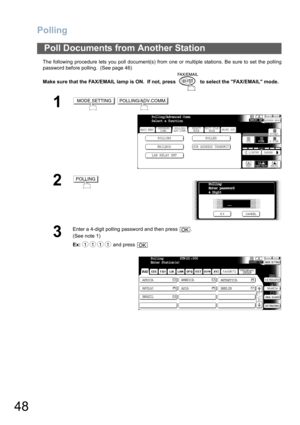

48
The following procedure lets you poll document(s) from one or multiple stations. Be sure to set the polling
password before polling.  (See page 46)
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
Poll Documents from Another Station
1
2
3
Enter a 4-digit polling password and then press  .
(See note 1)
Ex: and press
MODE SETTINGPOLLING/ADV.COMM.
BASIC MENU
POLLING POLLED
MAILBOX
SUB ADDRESS TRANSMIT
PRINT OUT
STDFINE
TEXT/PHOTO
MEMORY XMTADDRESS BOOK...

Polling

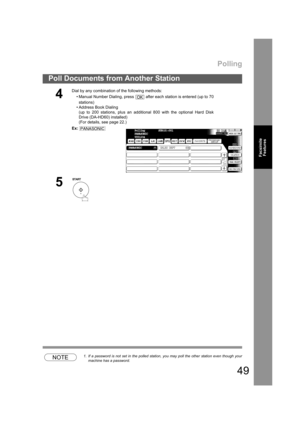

49
Poll Documents from Another Station
Facsimile
Features
NOTE1. If a password is not set in the polled station, you may poll the other station even though your
machine has a password.
4
Dial by any combination of the following methods:
• Manual Number Dialing, press   after each station is entered (up to 70
stations)
• Address Book Dialing
(up to 200 stations, plus an additional 800 with the optional Hard Disk
Drive (DA-HD60) installed)
(For details, see page 22.)
Ex:
5
OK
PANASONICPolling...

50
Program Keys
Your fax machine has special Program Keys. These keys are useful if you frequently need to send or poll
the same group of stations. You can use these keys to assign registered Address Book stations as a group
key, a sequence of stations to be polled, a deferred transmission sequence or an additional address book
entry.
To set a Program Key for Group Dialing
General Description
Setting for Group Dialing
1

2
3
Function mode
Select a function
GENERAL SETTINGS
FAX/EMAIL SETTINGSCOPIER...
