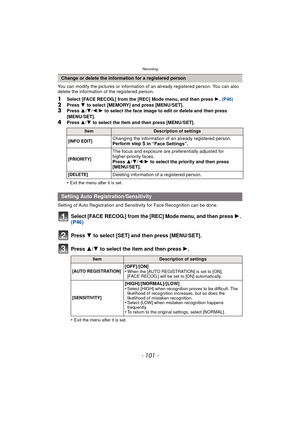

Page 101
![Page 101
- 101 -
Recording
You can modify the pictures or information of an already registered person. You can also
delete the information of the registered person.
1Select [FACE RECOG.] from the [REC] Mode menu, and then press 1. (P46)2Press 4 to select [MEMORY] and press [MENU/SET].3Press 3/4 /2 /1 to select the face image to edit or delete and then press
[MENU/SET].
4Press 3/4 to select the item and then press [MENU/SET].
•
Exit the menu after it is set.
Setting of Auto Registration and Sensitivity for...](http://img.usermanuals.tech/thumb/58/65501/w300_dmc-fz47_adv_en_om_d-100.png "Page 101
- 101 -
Recording
You can modify the pictures or information of an already registered person. You can also
delete the information of the registered person.
1Select [FACE RECOG.] from the [REC] Mode menu, and then press 1. (P46)2Press 4 to select [MEMORY] and press [MENU/SET].3Press 3/4 /2 /1 to select the face image to edit or delete and then press
[MENU/SET].
4Press 3/4 to select the item and then press [MENU/SET].
•
Exit the menu after it is set.
Setting of Auto Registration and Sensitivity for...")
- 101 - Recording You can modify the pictures or information of an already registered person. You can also delete the information of the registered person. 1Select [FACE RECOG.] from the [REC] Mode menu, and then press 1. (P46)2Press 4 to select [MEMORY] and press [MENU/SET].3Press 3/4 /2 /1 to select the face image to edit or delete and then press [MENU/SET]. 4Press 3/4 to select the item and then press [MENU/SET]. • Exit the menu after it is set. Setting of Auto Registration and Sensitivity for...

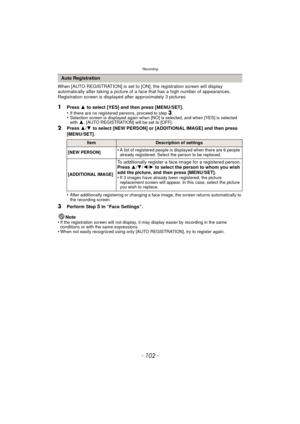

Page 102
![Page 102
Recording
- 102 -
When [AUTO REGISTRATION] is set to [ON], the registration screen will display
automatically after taking a picture of a face that has a high number of appearances.
Registration screen is displayed after approximately 3 pictures.
1Press 3 to select [YES] and then press [MENU/SET].
•If there are no registered persons, proceed to step 3.•Selection screen is displayed again when [NO] is selected, and when [YES] is selected
with 3, [AUTO REGISTRATION] will be set to [OFF].
2Press 3/4 to...](http://img.usermanuals.tech/thumb/58/65501/w300_dmc-fz47_adv_en_om_d-101.png "Page 102
Recording
- 102 -
When [AUTO REGISTRATION] is set to [ON], the registration screen will display
automatically after taking a picture of a face that has a high number of appearances.
Registration screen is displayed after approximately 3 pictures.
1Press 3 to select [YES] and then press [MENU/SET].
•If there are no registered persons, proceed to step 3.•Selection screen is displayed again when [NO] is selected, and when [YES] is selected
with 3, [AUTO REGISTRATION] will be set to [OFF].
2Press 3/4 to...")
Recording - 102 - When [AUTO REGISTRATION] is set to [ON], the registration screen will display automatically after taking a picture of a face that has a high number of appearances. Registration screen is displayed after approximately 3 pictures. 1Press 3 to select [YES] and then press [MENU/SET]. •If there are no registered persons, proceed to step 3.•Selection screen is displayed again when [NO] is selected, and when [YES] is selected with 3, [AUTO REGISTRATION] will be set to [OFF]. 2Press 3/4 to...

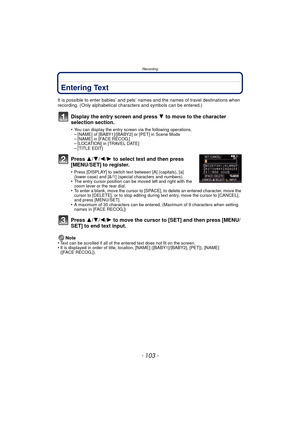

Page 103
![Page 103
- 103 -
Recording
Entering Text
It is possible to enter babies’ and pets’ names and the names of travel destinations when
recording. (Only alphabetical characters and symbols can be entered.)
Display the entry screen and press 4 to move to the character
selection section.
•You can display the entry screen via the following operations.–[NAME] of [BABY1]/[BABY2] or [PET] in Scene Mode–[NAME] in [FACE RECOG.]–[LOCATION] in [TRAVEL DATE]–[TITLE EDIT]
Press 3/4/2/ 1 to select text and then press...](http://img.usermanuals.tech/thumb/58/65501/w300_dmc-fz47_adv_en_om_d-102.png "Page 103
- 103 -
Recording
Entering Text
It is possible to enter babies’ and pets’ names and the names of travel destinations when
recording. (Only alphabetical characters and symbols can be entered.)
Display the entry screen and press 4 to move to the character
selection section.
•You can display the entry screen via the following operations.–[NAME] of [BABY1]/[BABY2] or [PET] in Scene Mode–[NAME] in [FACE RECOG.]–[LOCATION] in [TRAVEL DATE]–[TITLE EDIT]
Press 3/4/2/ 1 to select text and then press...")
- 103 - Recording Entering Text It is possible to enter babies’ and pets’ names and the names of travel destinations when recording. (Only alphabetical characters and symbols can be entered.) Display the entry screen and press 4 to move to the character selection section. •You can display the entry screen via the following operations.–[NAME] of [BABY1]/[BABY2] or [PET] in Scene Mode–[NAME] in [FACE RECOG.]–[LOCATION] in [TRAVEL DATE]–[TITLE EDIT] Press 3/4/2/ 1 to select text and then press...

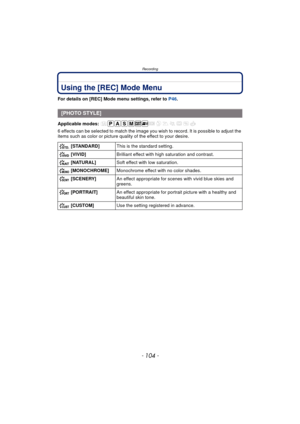

Page 104
![Page 104
Recording
- 104 -
Using the [REC] Mode Menu
For details on [REC] Mode menu settings, refer to P46.
Applicable modes:
6 effects can be selected to match the image you wish to record. It is possible to adjust the
items such as color or picture quality of the effect to your desire.
[PHOTO STYLE]
[STANDARD] This is the standard setting.
[VIVID] Brilliant effect with high saturation and contrast.
[NATURAL] Soft effect with low saturation.
[MONOCHROME] Monochrome effect with no color shades.
[SCENERY]...](http://img.usermanuals.tech/thumb/58/65501/w300_dmc-fz47_adv_en_om_d-103.png "Page 104
Recording
- 104 -
Using the [REC] Mode Menu
For details on [REC] Mode menu settings, refer to P46.
Applicable modes:
6 effects can be selected to match the image you wish to record. It is possible to adjust the
items such as color or picture quality of the effect to your desire.
[PHOTO STYLE]
[STANDARD] This is the standard setting.
[VIVID] Brilliant effect with high saturation and contrast.
[NATURAL] Soft effect with low saturation.
[MONOCHROME] Monochrome effect with no color shades.
[SCENERY]...")
Recording - 104 - Using the [REC] Mode Menu For details on [REC] Mode menu settings, refer to P46. Applicable modes: 6 effects can be selected to match the image you wish to record. It is possible to adjust the items such as color or picture quality of the effect to your desire. [PHOTO STYLE] [STANDARD] This is the standard setting. [VIVID] Brilliant effect with high saturation and contrast. [NATURAL] Soft effect with low saturation. [MONOCHROME] Monochrome effect with no color shades. [SCENERY]...

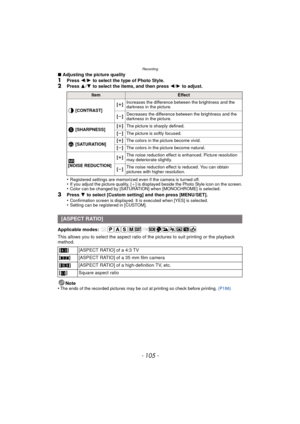

Page 105
![Page 105
- 105 -
Recording
∫Adjusting the picture quality1Press 2/1 to select the type of Photo Style.2Press 3/4 to select the items, and then press 2 /1 to adjust.
•
Registered settings are memorized even if the camera is turned off.•If you adjust the picture quality, [_ ] is displayed beside the Photo Style icon on the screen.•Color can be changed by [SATURATION] when [MONOCHROME] is selected.
3Press 4 to select [Custom setting] and then press [MENU/SET].
•Confirmation screen is displayed. It is executed...](http://img.usermanuals.tech/thumb/58/65501/w300_dmc-fz47_adv_en_om_d-104.png "Page 105
- 105 -
Recording
∫Adjusting the picture quality1Press 2/1 to select the type of Photo Style.2Press 3/4 to select the items, and then press 2 /1 to adjust.
•
Registered settings are memorized even if the camera is turned off.•If you adjust the picture quality, [_ ] is displayed beside the Photo Style icon on the screen.•Color can be changed by [SATURATION] when [MONOCHROME] is selected.
3Press 4 to select [Custom setting] and then press [MENU/SET].
•Confirmation screen is displayed. It is executed...")
- 105 - Recording ∫Adjusting the picture quality1Press 2/1 to select the type of Photo Style.2Press 3/4 to select the items, and then press 2 /1 to adjust. • Registered settings are memorized even if the camera is turned off.•If you adjust the picture quality, [_ ] is displayed beside the Photo Style icon on the screen.•Color can be changed by [SATURATION] when [MONOCHROME] is selected. 3Press 4 to select [Custom setting] and then press [MENU/SET]. •Confirmation screen is displayed. It is executed...

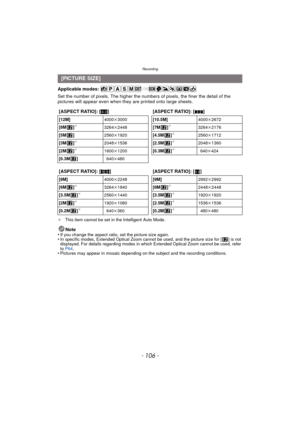

Page 106
![Page 106
Recording
- 106 -
Applicable modes:
Set the number of pixels. The higher the numbers of pixels, the finer the detail of the
pictures will appear even when they are printed onto large sheets.
¢This item cannot be set in the Intelligent Auto Mode.
Note
•If you change the aspect ratio, set the picture size again.•In specific modes, Extended Optical Zoom cannot be used, and the picture size for [ ] is not
displayed. For details regarding modes in which Extended Optical Zoom cannot be used, refer
to P64...](http://img.usermanuals.tech/thumb/58/65501/w300_dmc-fz47_adv_en_om_d-105.png "Page 106
Recording
- 106 -
Applicable modes:
Set the number of pixels. The higher the numbers of pixels, the finer the detail of the
pictures will appear even when they are printed onto large sheets.
¢This item cannot be set in the Intelligent Auto Mode.
Note
•If you change the aspect ratio, set the picture size again.•In specific modes, Extended Optical Zoom cannot be used, and the picture size for [ ] is not
displayed. For details regarding modes in which Extended Optical Zoom cannot be used, refer
to P64...")
Recording - 106 - Applicable modes: Set the number of pixels. The higher the numbers of pixels, the finer the detail of the pictures will appear even when they are printed onto large sheets. ¢This item cannot be set in the Intelligent Auto Mode. Note •If you change the aspect ratio, set the picture size again.•In specific modes, Extended Optical Zoom cannot be used, and the picture size for [ ] is not displayed. For details regarding modes in which Extended Optical Zoom cannot be used, refer to P64...

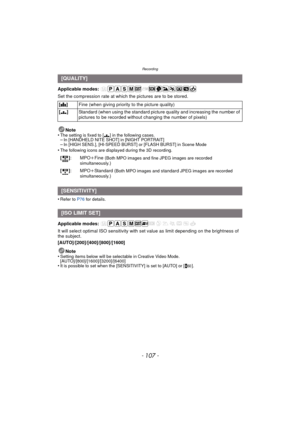

Page 107
![Page 107
- 107 -
Recording
Applicable modes:
Set the compression rate at which the pictures are to be stored.Note
•
The setting is fixed to [ ›] in the following cases.–In [HANDHELD NITE SHOT] in [NIGHT PORTRAIT]–In [HIGH SENS.], [HI-SPEED BURST] or [FLASH BURST] in Scene Mode•The following icons are displayed during the 3D recording.
•Refer to P76 for details.
Applicable modes:
It will select optimal ISO sensitivity with set value as limit depending on the brightness of
the subject....](http://img.usermanuals.tech/thumb/58/65501/w300_dmc-fz47_adv_en_om_d-106.png "Page 107
- 107 -
Recording
Applicable modes:
Set the compression rate at which the pictures are to be stored.Note
•
The setting is fixed to [ ›] in the following cases.–In [HANDHELD NITE SHOT] in [NIGHT PORTRAIT]–In [HIGH SENS.], [HI-SPEED BURST] or [FLASH BURST] in Scene Mode•The following icons are displayed during the 3D recording.
•Refer to P76 for details.
Applicable modes:
It will select optimal ISO sensitivity with set value as limit depending on the brightness of
the subject....")
- 107 - Recording Applicable modes: Set the compression rate at which the pictures are to be stored.Note • The setting is fixed to [ ›] in the following cases.–In [HANDHELD NITE SHOT] in [NIGHT PORTRAIT]–In [HIGH SENS.], [HI-SPEED BURST] or [FLASH BURST] in Scene Mode•The following icons are displayed during the 3D recording. •Refer to P76 for details. Applicable modes: It will select optimal ISO sensitivity with set value as limit depending on the brightness of the subject....

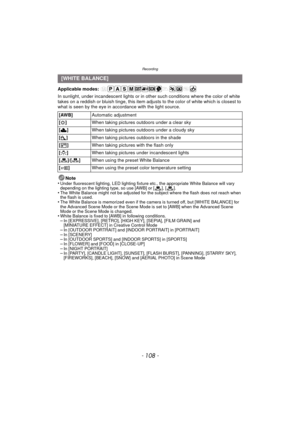

Page 108
![Page 108
Recording
- 108 -
Applicable modes:
In sunlight, under incandescent lights or in other such conditions where the color of white
takes on a reddish or bluish tinge, this item adjusts to the color of white which is closest to
what is seen by the eye in ac cordance with the light source.
Note
•
Under fluorescent lighting, LED lighting fixture etc., the appropriate White Balance will vary
depending on the lighting type, so use [AWB] or [ ], [ ].
•The White Balance might not be adjusted for the subject...](http://img.usermanuals.tech/thumb/58/65501/w300_dmc-fz47_adv_en_om_d-107.png "Page 108
Recording
- 108 -
Applicable modes:
In sunlight, under incandescent lights or in other such conditions where the color of white
takes on a reddish or bluish tinge, this item adjusts to the color of white which is closest to
what is seen by the eye in ac cordance with the light source.
Note
•
Under fluorescent lighting, LED lighting fixture etc., the appropriate White Balance will vary
depending on the lighting type, so use [AWB] or [ ], [ ].
•The White Balance might not be adjusted for the subject...")
Recording - 108 - Applicable modes: In sunlight, under incandescent lights or in other such conditions where the color of white takes on a reddish or bluish tinge, this item adjusts to the color of white which is closest to what is seen by the eye in ac cordance with the light source. Note • Under fluorescent lighting, LED lighting fixture etc., the appropriate White Balance will vary depending on the lighting type, so use [AWB] or [ ], [ ]. •The White Balance might not be adjusted for the subject...

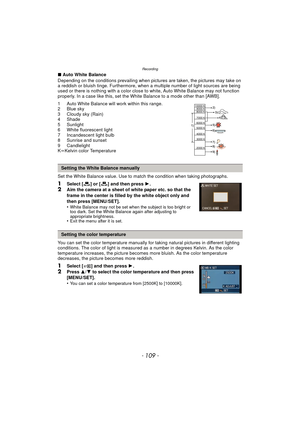

Page 109
![Page 109
- 109 -
Recording
∫Auto White Balance
Depending on the conditions prevailing when pictures are taken, the pictures may take on
a reddish or bluish tinge. Furthermore, when a multiple number of light sources are being
used or there is nothing with a color close to white, Auto White Balance may not function
properly. In a case like this, set the White Balance to a mode other than [AWB].
1 Auto White Balance will work within this range.
2 Blue sky
3 Cloudy sky (Rain)
4 Shade
5 Sunlight
6 White...](http://img.usermanuals.tech/thumb/58/65501/w300_dmc-fz47_adv_en_om_d-108.png "Page 109
- 109 -
Recording
∫Auto White Balance
Depending on the conditions prevailing when pictures are taken, the pictures may take on
a reddish or bluish tinge. Furthermore, when a multiple number of light sources are being
used or there is nothing with a color close to white, Auto White Balance may not function
properly. In a case like this, set the White Balance to a mode other than [AWB].
1 Auto White Balance will work within this range.
2 Blue sky
3 Cloudy sky (Rain)
4 Shade
5 Sunlight
6 White...")
- 109 - Recording ∫Auto White Balance Depending on the conditions prevailing when pictures are taken, the pictures may take on a reddish or bluish tinge. Furthermore, when a multiple number of light sources are being used or there is nothing with a color close to white, Auto White Balance may not function properly. In a case like this, set the White Balance to a mode other than [AWB]. 1 Auto White Balance will work within this range. 2 Blue sky 3 Cloudy sky (Rain) 4 Shade 5 Sunlight 6 White...

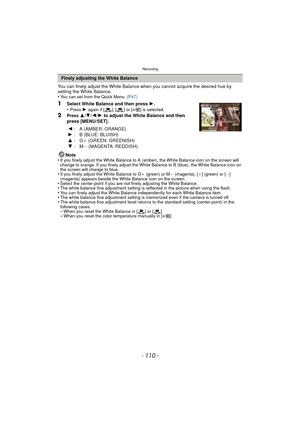

Page 110
![Page 110
Recording
- 110 -
You can finely adjust the White Balance when you cannot acquire the desired hue by
setting the White Balance.
•
You can set from the Quick Menu. (P47)
1Select White Balance and then press 1.
•Press 1 again if [ ], [ ] or [ ] is selected.
2Press 3/ 4/2/1 to adjust the White Balance and then
press [MENU/SET].
Note
•
If you finely adjust the White Balance to A (amber), the White Balance icon on the screen will
change to orange. If you finely adjust the White Balance to B (blue), the...](http://img.usermanuals.tech/thumb/58/65501/w300_dmc-fz47_adv_en_om_d-109.png "Page 110
Recording
- 110 -
You can finely adjust the White Balance when you cannot acquire the desired hue by
setting the White Balance.
•
You can set from the Quick Menu. (P47)
1Select White Balance and then press 1.
•Press 1 again if [ ], [ ] or [ ] is selected.
2Press 3/ 4/2/1 to adjust the White Balance and then
press [MENU/SET].
Note
•
If you finely adjust the White Balance to A (amber), the White Balance icon on the screen will
change to orange. If you finely adjust the White Balance to B (blue), the...")
Recording - 110 - You can finely adjust the White Balance when you cannot acquire the desired hue by setting the White Balance. • You can set from the Quick Menu. (P47) 1Select White Balance and then press 1. •Press 1 again if [ ], [ ] or [ ] is selected. 2Press 3/ 4/2/1 to adjust the White Balance and then press [MENU/SET]. Note • If you finely adjust the White Balance to A (amber), the White Balance icon on the screen will change to orange. If you finely adjust the White Balance to B (blue), the...
