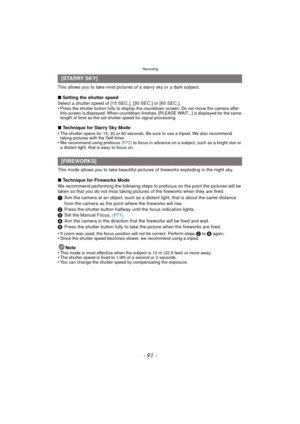

- 91 -
Recording
This allows you to take vivid pictures of a starry sky or a dark subject.
∫ Setting the shutter speed
Select a shutter speed of [15 SEC.], [30 SEC.] or [60 SEC.].
•
Press the shutter button fully to display the countdown screen. Do not move the camera after
this screen is displayed. When countdown finishes, [PLEASE WAIT...] is displayed for the same
length of time as the set shutter speed for signal processing.
∫ Technique for Starry Sky Mode
•The shutter opens for 15, 30 or 60...

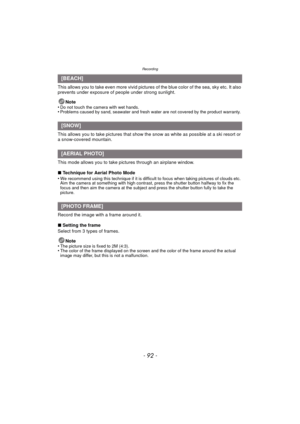

Recording
- 92 -
This allows you to take even more vivid pictures of the blue color of the sea, sky etc. It also
prevents under exposure of people under strong sunlight.
Note
•
Do not touch the camera with wet hands.•Problems caused by sand, seawater and fresh water are not covered by the product warranty.
This allows you to take pictures that show t he snow as white as possible at a ski resort or
a snow-covered mountain.
This mode allows you to take pictures through an airplane window.
∫ Technique for...

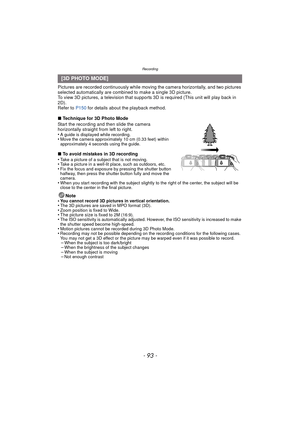

- 93 -
Recording
Pictures are recorded continuously while moving the camera horizontally, and two pictures
selected automatically are combined to make a single 3D picture.
To view 3D pictures, a television that supports 3D is required (This unit will play back in
2D).
Refer to  P150 for details about the playback method.
∫ Technique for 3D Photo Mode
Start the recording and then slide the camera
horizontally straight from left to right.
•
A guide is displayed while recording.•Move the camera...

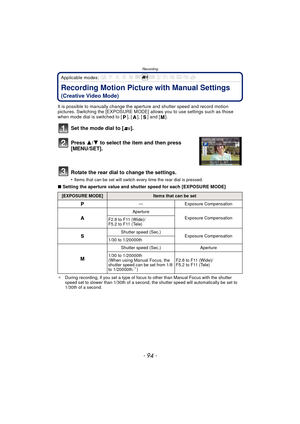

Recording
- 94 -
Applicable modes:
Recording Motion Picture with Manual Settings
(Creative Video Mode)
It is possible to manually change the aperture and shutter speed and record motion
pictures. Switching the [EXPOSURE MODE] allows you to use settings such as those
when mode dial is switched to [ ], [ ], [ ] and [ ].
Set the mode dial to [ ].
Press  3/4 to select the item and then press
[MENU/SET].
Rotate the rear dial to change the settings.
•Items that can be set will switch every time the rear...

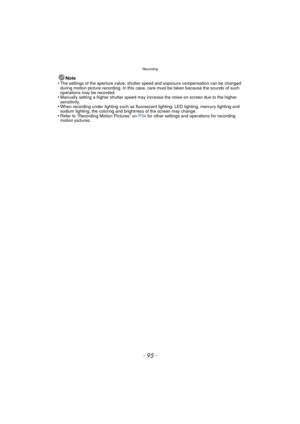

- 95 -
Recording
Note
•The settings of the aperture value, shutter speed and exposure compensation can be changed
during motion picture recording. In this case, care must be taken because the sounds of such
operations may be recorded.
•Manually setting a higher shutter speed may increase the noise on-screen due to the higher
sensitivity.
•When recording under lighting such as fluorescent lighting, LED lighting, mercury lighting and
sodium lighting, the coloring and brightness of the screen may...

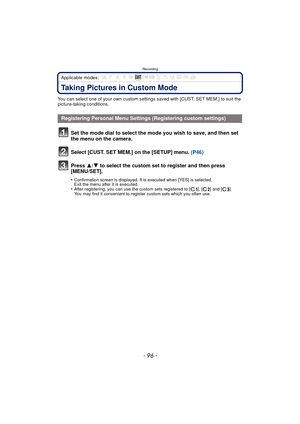

Recording
- 96 -
Applicable modes:
Taking Pictures in Custom Mode
You can select one of your own custom settings saved with [CUST. SET MEM.] to suit the
picture-taking conditions.
Set the mode dial to select the mode you wish to save, and then set
the menu on the camera.
Select [CUST. SET MEM.] on the [SETUP] menu. (P46)
Press  3/4 to select the custom set to register and then press
[MENU/SET].
•Confirmation screen is displayed. It is executed when [YES] is selected.
Exit the menu after it is...

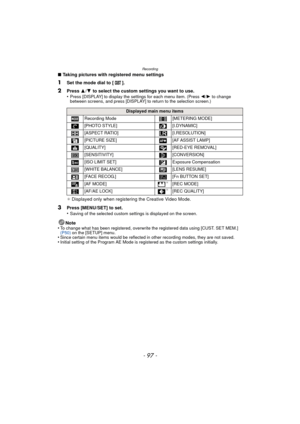

- 97 -
Recording
∫Taking pictures with registered menu settings
1Set the mode dial to [ ].
2Press  3/4  to select the custom settings you want to use.
•Press [DISPLAY] to display the settings for each menu item. (Press  2/1 to change
between screens, and press [DISPLAY] to return to the selection screen.)
¢  Displayed only when registering the Creative Video Mode.
3Press [MENU/SET] to set.
•Saving of the selected custom settings is displayed on the screen.
Note
•To change what has been registered,...

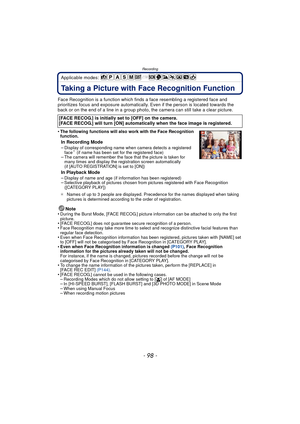

Recording
- 98 -
Applicable modes:
RecordingTaking a Picture with Face Recognition Function
Face Recognition is a function which finds a face resembling a registered face and
prioritizes focus and exposure automatically.  Even if the person is located towards the
back or on the end of a line in a group photo, the camera can still take a clear picture.
•
The following functions will also work with the Face Recognition
function.
In Recording Mode
–Display of corresponding name when camera detects a...

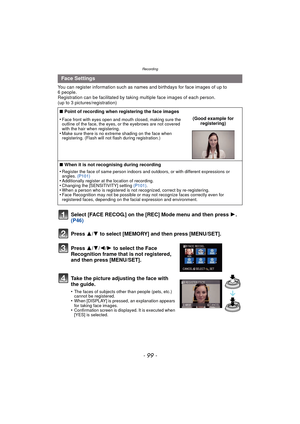

- 99 -
Recording
You can register information such as names and birthdays for face images of up to
6 people.
Registration can be facilitated by taking multiple face images of each person.
(up to 3 pictures/registration)
Select [FACE RECOG.] on the [REC] Mode menu and then press  1.
(P46)
Press  3
/4 to select [MEMORY] and then press [MENU/SET].
Press  3/4/2/ 1 to select the Face
Recognition frame that is not registered,
and then press [MENU/SET].
Take the picture adjusting the face with
the...

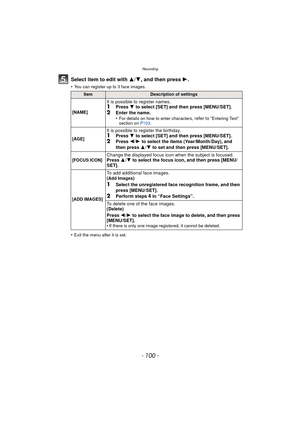

Recording
- 100 -
Select item to edit with 3/4, and then press  1.
•You can register up to 3 face images.
•Exit the menu after it is set.
ItemDescription of settings
[NAME]
It is possible to register names.1Press  4 to select [SET] and then press [MENU/SET].
2Enter the name.
•For details on how to enter characters, refer to “Entering Text”
section on  P103.
[AGE]
It is possible to register the birthday.1Press  4 to select [SET] and then press [MENU/SET].2Press 2/1 to select the items (Year/Month/Day),...
