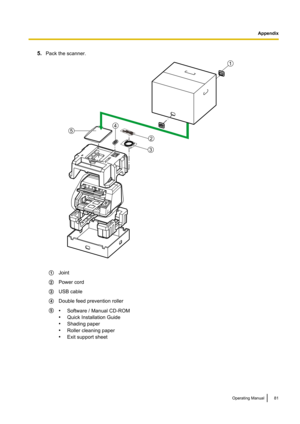

5.Pack the scanner.AJointBPower cordCUSB cableDDouble feed prevention rollerE•Software / Manual CD-ROM • Quick Installation Guide • Shading paper • Roller cleaning paper • Exit support sheetOperating Manual81 Appendix5 1 4 2 3
Page 82
Specifications ItemKV-S5076HKV-S5046HScanningScanning faceDuplexScanning methodColor CIS (600 dpi)Scanningspeed*1(landscape)Binary / color(200 dpi, 300 dpi)Simplex A4: 100 pages/min.Duplex A4: 200 images/min.Simplex A4: 80 pages/min.Duplex A4: 160 images/min.Resolution100 – 600 dpi (1 dpi step)Optical: 300 dpi / 600 dpi (Automatic switch)Paper*2Width48 – 307 mm (1.9 – 12.09 in.)LengthWhen feeding multiple sheets: 70 – 432 mm (2.8 – 17 in.)When feeding one sheet: 70 – 2,540 mm (2.8 – 100...
Page 83
ItemKV-S5076HKV-S5046HScannerExternal dimensions(Width ´ Depth ´ Height)468 ´ 444 ´ 344 mm (18.5 ´ 17.5 ´ 13.5 in.)Weight18 kg (39.5 lb.)Power requirement*1AC100 – 127 V, 50/60 Hz, 1.5 AAC100 – 127 V, 50/60 Hz, 1.5 AAC220 – 240 V, 50/60 Hz, 0.8 AAC220 – 240 V, 50/60 Hz, 0.8 APowerconsumption(For AC100 –127 V models)Scanning90 W or less90 W or lessReady30 W or less30 W or lessSleep1.2 W or less1.2 W or lessPower OFF0.3 W or less0.3 W or lessPowerconsumption(For AC220 –240 V models)Scanning90 W or less90...
Page 84
Index A AC inlet 12 Accessories 10 ADF door 11, 16 ADF door release 11, 16 Adjusting the imprinter printing position 73 B Background color switch function 2, 38 C Cleaning the inside of the scanner 49 Conveyor 53 Ion outlets and sensors 54 Rollers 56 Scanning backgrounds 58 Scanning glasses 59 Cleaning the outside of the scanner 48 Consumables 60 Control panel 11, 13 Control sheet 3, 42 Cursor button 13, 41 D Document feeder 48 Document guides 11,...
Page 85
Paper sensor 54 Skew sensor 54 Slip detect sensor 54 Starting sensor 54 Waiting sensor 54 Shading adjustment 78 Shading paper 10, 78 Skip button 13 Software Install 20 Uninstall 79 Software / Manual CD-ROM 3, 10, 20 Specifications 82 Stapled document detection 2, 25, 82 Start/Stop button 13 Starting up applications automatically Single Touch Scanning 39 Touch Free Scanning 39 Storage Environment 83 T Troubleshooting 74 U USB cable 10, 19...
