Replacing the RollersIf double feeding or paper jam occurs frequently even after cleaning the roller  (page  56), please call your dealer
to order a "Roller exchange kit (KV-SS060)", and replace the paper feed roller module and double feed
prevention roller.
1. Press and hold the power button for one second or more to turn off the unit’s power.

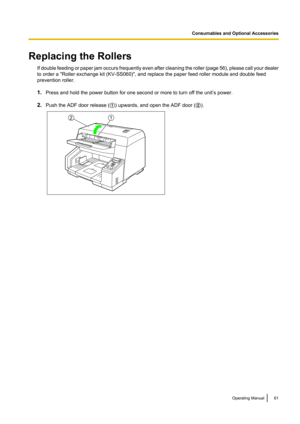

2. Push the ADF door release ( A) upwards, and open the ADF door ( B).Operating Manual61
Consumables and Optional Accessories12

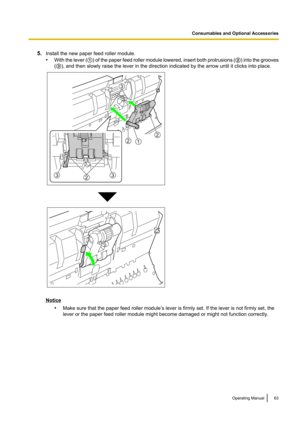

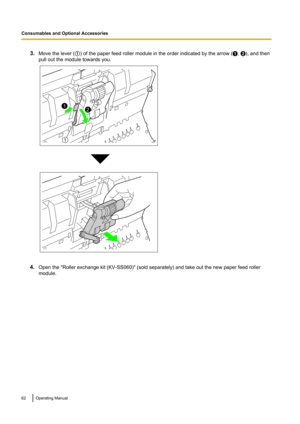

3.Move the lever ( A) of the paper feed roller module in the order indicated by the arrow ( A, B ), and then
pull out the module towards you.
4. Open the "Roller exchange kit (KV-SS060)" (sold separately) and take out the new paper feed roller
module.
62Operating Manual
Consumables and Optional Accessories12
1

5.Install the new paper feed roller module.
• With the lever  (A ) of the paper feed roller module lowered, insert both protrusions  (B ) into the grooves
( C ), and then slowly raise the lever in the direction indicated by the arrow until it clicks into place.
Notice
•Make sure that the paper feed roller module’s lever is firmly set. If the lever is not firmly set, the
lever or the paper feed roller module might become damaged or might not function correctly.
Operating Manual63
Consumables and Optional...

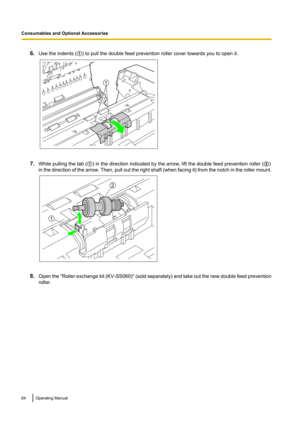

6.Use the indents ( A) to pull the double feed prevention roller cover towards you to open it.
7. While pulling the tab ( A) in the direction indicated by the arrow, lift the double feed prevention roller ( B)
in the direction of the arrow. Then, pull out the right shaft  (when facing it) from the notch in the roller mount.
8. Open the  "Roller exchange kit  (KV-SS060)" ( sold separately) and take out the new double feed prevention
roller.
64Operating Manual
Consumables and Optional Accessories1...

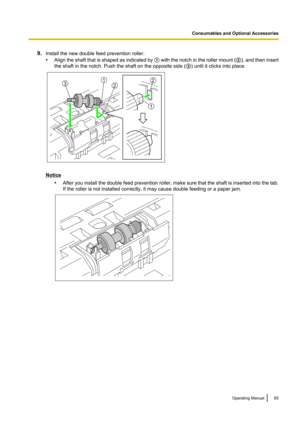

9.Install the new double feed prevention roller.
• Align the shaft that is shaped as indicated by  A with the notch in the roller mount  (B ), and then insert
the shaft in the notch. Push the shaft on the opposite side ( C) until it clicks into place.
Notice
•After you install the double feed prevention roller, make sure that the shaft is inserted into the tab.
If the roller is not installed correctly, it may cause double feeding or a paper jam.
Operating Manual65
Consumables and Optional Accessories1...

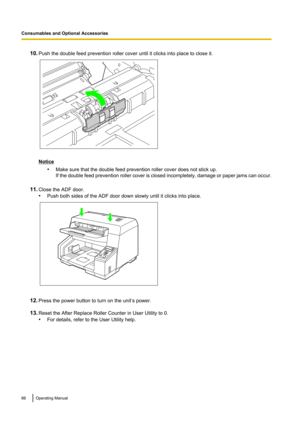

10.Push the double feed prevention roller cover until it clicks into place to close it.
Notice
•Make sure that the double feed prevention roller cover does not stick up.
If the double feed prevention roller cover is closed incompletely, damage or paper jams can occur.
11. Close the ADF door.
• Push both sides of the ADF door down slowly until it clicks into place.
12.Press the power button to turn on the unit’s power.
13. Reset the After Replace Roller Counter in User Utility to 0.
• For details, refer...

Installing Optional Accessories
Installing the Imprinter Unit and Ink Cartridge The imprinter prints on the face of the document before scanning. The printed text will also be scanned.
1. Press and hold the power button for one second or more to turn off the unit’s power.

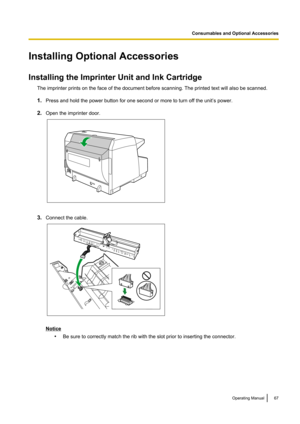

2. Open the imprinter door.

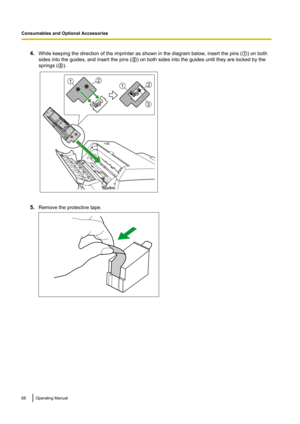

3.Connect the cable.
Notice
•Be sure to correctly match the rib with the slot prior to inserting the connector.
Operating Manual67
Consumables and Optional Accessories

4.While keeping the direction of the imprinter as shown in the diagram below, insert the pins ( A) on both
sides into the guides, and insert the pins ( B) on both sides into the guides until they are locked by the
springs ( C).
5. Remove the protective tape.
68Operating Manual
Consumables and Optional Accessories11
22
3

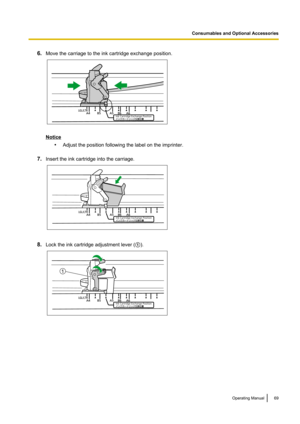

6.Move the carriage to the ink cartridge exchange position.
Notice
•Adjust the position following the label on the imprinter.
7. Insert the ink cartridge into the carriage.
8.Lock the ink cartridge adjustment lever ( A).
Operating Manual69
Consumables and Optional Accessories  1

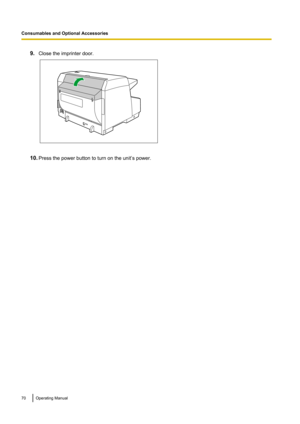

9.Close the imprinter door.
10.Press the power button to turn on the unit’s power.
70Operating Manual
