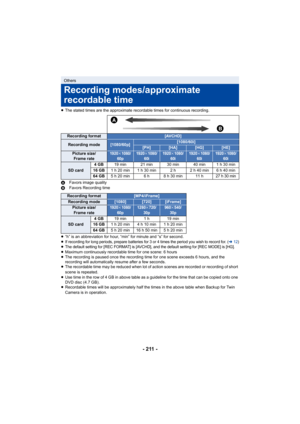

- 211 -
≥The stated times are the approximate recordable times for conti nuous recording.
A Favors image quality
B Favors Recording time
≥ “h” is an abbreviation for hour, “min” for minute and “s” for s econd.
≥
If recording for long periods, prepare batteries for 3 or 4 tim es the period you wish to record for. (l12)≥The default setting for [REC FORMAT] is [AVCHD], and the defaul t setting for [REC MODE] is [HG].≥Maximum continuously recordable time for one scene: 6 hours
≥ The recording is paused once...

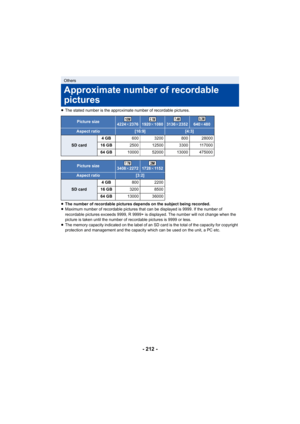

- 212 -
≥The stated number is the approximate number of recordable pictu res.
≥ The number of recordable pictures depends on the subject being  recorded.
≥ Maximum number of recordable pictures that can be displayed is  9999. If the number of
recordable pictures exceeds 9999, R 9999+ is displayed. The num ber will not change when the
picture is taken until the number of recordable pictures is 999 9 or less.
≥ The memory capacity indicated on the label of an SD card is the total of the capacity for...

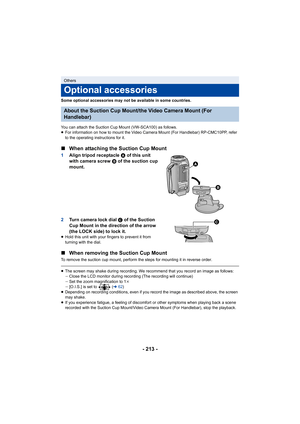

- 213 -
Some optional accessories may not be available in some countries.
You can attach the Suction Cup Mount (VW-SCA100) as follows.
≥ For information on how to mount the Video Camera Mount (For Han dlebar) RP-CMC10PP, refer
to the operating instructions for it.
∫ When attaching the Suction Cup Mount
1 Align tripod receptacle  A of this unit
with camera screw  B of the suction cup
mount.
2 Turn camera lock dial  C of the Suction
Cup Mount in the direction of the arrow
(the LOCK side) to lock it.
≥...

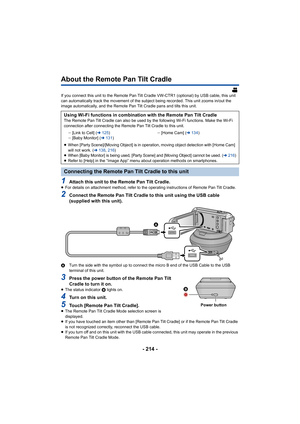

- 214 -
About the Remote Pan Tilt Cradle
If you connect this unit to the Remote Pan Tilt Cradle VW-CTR1 (optional) by USB cable, this unit
can automatically track the movement of the subject being recor ded. This unit zooms in/out the
image automatically, and the Remote Pan Tilt Cradle pans and ti lts this unit.
1Attach this unit to the Remote Pan Tilt Cradle.≥For details on attachment method, refer to the operating instru ctions of Remote Pan Tilt Cradle.
2Connect the Remote Pan Tilt Cradle to this...

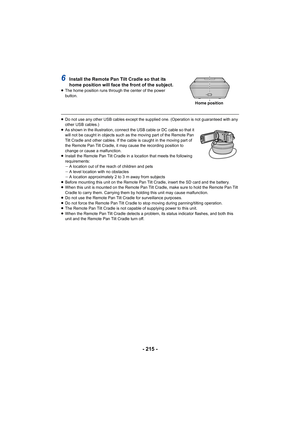

- 215 -
6Install the Remote Pan Tilt Cradle so that its
home position will face the front of the subject.
≥The home position runs through the center of the power
button.
≥Do not use any other USB cables except the supplied one. (Opera tion is not guaranteed with any
other USB cables.)
≥ As shown in the illustration, connect the USB cable or DC cable  so that it
will not be caught in objects such as the moving part of the Re mote Pan
Tilt Cradle and other cables. If the cable is caught in the mov ing...

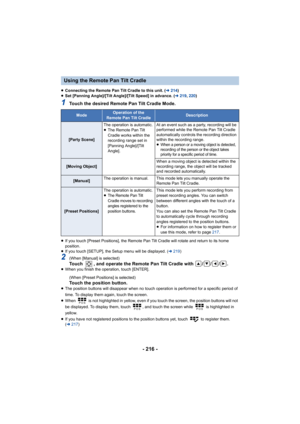

- 216 -
≥Connecting the Remote Pan Tilt Cradle to this unit. (l 214)
≥ Set [Panning Angle]/[Tilt Angle]/[Tilt Speed] in advance. ( l219 , 220 )
1Touch the desired Remote Pan Tilt Cradle Mode.
≥If you touch [Preset Positions], the Remote Pan Tilt Cradle wil l rotate and return to its home
position.
≥ If you touch [SETUP], the Setup menu will be displayed. ( l219 )
2(When [Manual] is selected)Touch  , and operate the Remote Pan Tilt Cradle with  / / / .≥When you finish the operation, touch [ENTER].
(When...

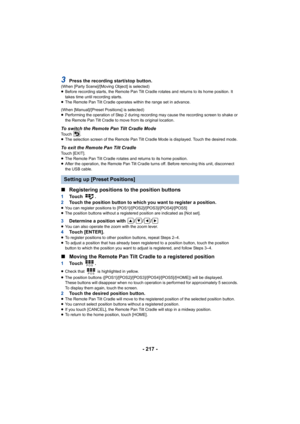

- 217 -
3Press the recording start/stop button.(When [Party Scene]/[Moving Object] is selected)
≥Before recording starts, the Remote Pan Tilt Cradle rotates and  returns to its home position. It
takes time until recording starts.
≥ The Remote Pan Tilt Cradle operates within the range set in adv ance.
(When [Manual]/[Preset Positions] is selected)
≥ Performing the operation of Step 2 during recording may cause t he recording screen to shake or
the Remote Pan Tilt Cradle to move from its original...

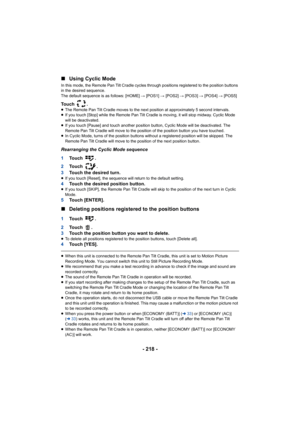

- 218 -
∫
Using Cyclic Mode
In this mode, the Remote Pan Tilt Cradle cycles through positio ns registered to the position buttons
in the desired sequence.
The default sequence is as follows: [HOME]  # [POS1] # [POS2] # [POS3] # [POS4]  # [POS5]
Touch  .≥The Remote Pan Tilt Cradle moves to the next position at approx imately 5 second intervals.
≥ If you touch [Stop] while the Remote Pan Tilt Cradle is moving,  it will stop midway. Cyclic Mode
will be deactivated.
≥ If you touch [Pause] and touch another...

- 219 -
≥The following functions will be set to [OFF]:
jLevel Shot Function
j Optical Image Stabilizer
j [SHOOTING GUIDE]
≥ If you experience fatigue, a feeling of discomfort or other sym ptoms when playing back a scene
recorded with the Remote Pan Tilt Cradle, stop the playback.
(About [Party Scene]/[Moving Object])
≥ Still pictures cannot be recorded during Motion picture recordi ng.
≥ Depending on recording conditions, the color tone of the image  being recorded may change or
subjects may not be...

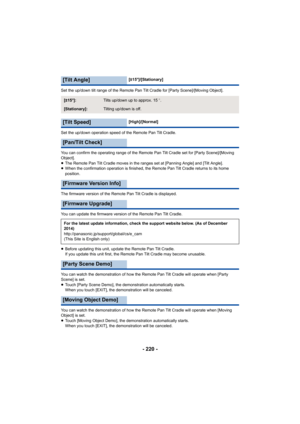

- 220 -
Set the up/down tilt range of the Remote Pan Tilt Cradle for [Party Scene]/[Moving Object].
Set the up/down operation speed of the Remote Pan Tilt Cradle.
You can confirm the operating range of the Remote Pan Tilt Crad le set for [Party Scene]/[Moving
Object].
≥ The Remote Pan Tilt Cradle move s in the ranges set at [Panning Angle] and [Tilt Angle].
≥ When the confirmation operation  is finished, the Remote Pan Tilt Cradle returns to its home
position.
The firmware version of the Remo te Pan...
