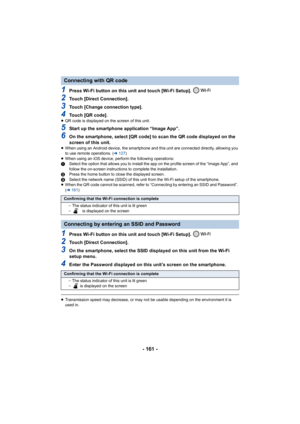

- 161 -
1Press Wi-Fi button on this unit and touch [Wi-Fi Setup].
2Touch [Direct Connection].
3Touch [Change connection type].
4Touch [QR code].≥QR code is displayed on the screen of this unit.
5Start up the smartphone application “Image App”.
6On the smartphone, select [QR code] to scan the QR code display ed on the
screen of this unit.
≥ When using an Android device, the smartphone and this unit are connected directly, allowing you
to use remote operations. ( l127 )
≥ When using an iOS device,...

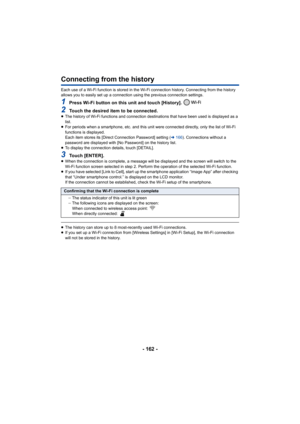

- 162 -
Connecting from the history
Each use of a Wi-Fi function is stored in the Wi-Fi connection history. Connecting from the history
allows you to easily set up a connection using the previous con nection settings.
1Press Wi-Fi button on this unit and touch [History].
2Touch the desired item to be connected.≥The history of Wi-Fi functions and connection destinations that  have been used is displayed as a
list.
≥ For periods when a smartphone, etc. and this unit were connecte d directly, only the...

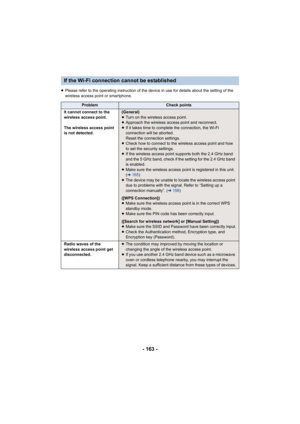

- 163 -
≥Please refer to the operating instruction of the device in use  for details about the setting of the
wireless access point or smartphone.
If the Wi-Fi connection cannot be established
ProblemCheck points
It cannot connect to the
wireless access point.
The wireless access point
is not detected.
(General)
≥ Turn on the wireless access point.
≥ Approach the wireless access point and reconnect.
≥ If it takes time to complete t he connection, the Wi-Fi
connection will be aborted.
Reset the...

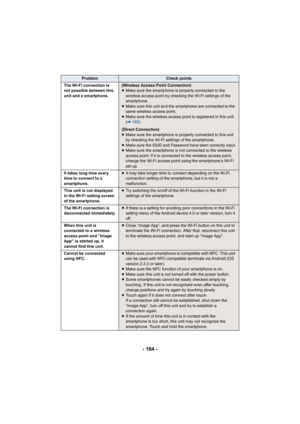

- 164 -
The Wi-Fi connection is
not possible between this
unit and a smartphone.(Wireless Access Point Connection)
≥Make sure the smartphone is properly connected to the
wireless access point by checking the Wi-Fi settings of the
smartphone.
≥ Make sure this unit and the smartphone are connected to the
same wireless access point.
≥ Make sure the wireless access point is registered in this unit.
( l 165 )
(Direct Connection)
≥ Make sure the smartphone is properly connected to this unit
by checking...

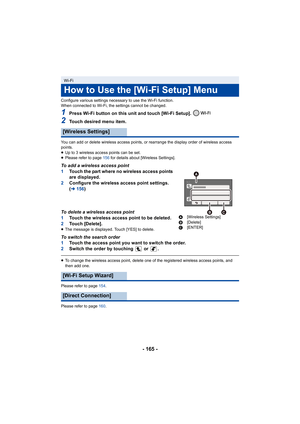

- 165 -
Configure various settings necessary to use the Wi-Fi function.
When connected to Wi-Fi, the settings cannot be changed.
1Press Wi-Fi button on this unit and touch [Wi-Fi Setup].
2Touch desired menu item.
You can add or delete wireless access points, or rearrange the display order of wireless access
points.
≥ Up to 3 wireless access points can be set.
≥ Please refer to page  156 for details about [Wireless Settings].
To add a wireless access point
1Touch the part where no wireless access points...

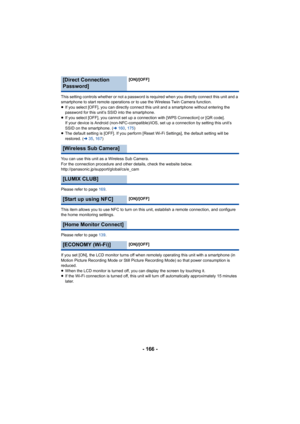

- 166 -
This setting controls whether or not a password is required when you directly connect this unit and a
smartphone to start remote operations or to use the Wireless Tw in Camera function.
≥ If you select [OFF], you can directly connect this unit and a s martphone without entering the
password for this unit’s SSID into the smartphone.
≥ If you select [OFF], you cannot set up a connection with [WPS C onnection] or [QR code].
If your device is Android (non-N FC-compatible)/iOS, set up a co nnection...

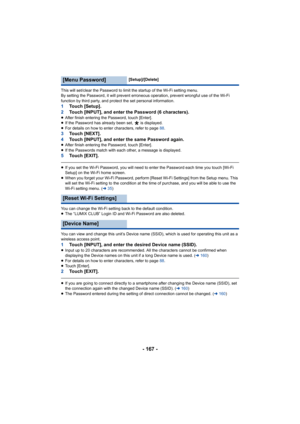

- 167 -
This will set/clear the Password to limit the startup of the Wi-Fi setting menu.
By setting the Password, it will prevent erroneous operation, p revent wrongful use of the Wi-Fi
function by third party, and protect the set personal informati on.
1Touch [Setup].
2 Touch [INPUT], and enter the Password (6 characters).
≥After finish entering the Password, touch [Enter].
≥ If the Password has already been set,   is displayed.
≥ For details on how to enter characters, refer to page  88.
3 Touch...

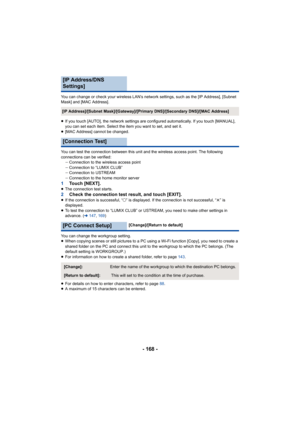

- 168 -
You can change or check your wireless LAN’s network settings, such as the [IP Address], [Subnet
Mask] and [MAC Address].
≥ If you touch [AUTO], the network settings are configured automa tically. If you touch [MANUAL],
you can set each item. Select the item you want to set, and set  it.
≥ [MAC Address] cannot be changed.
You can test the connection between this unit and the wireless  access point. The following
connections can be verified: jConnection to the wireless access point
j Connection...

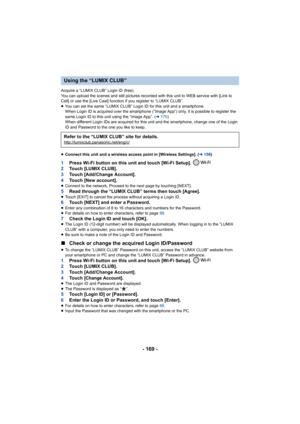

- 169 -
Acquire a “LUMIX CLUB” Login ID (free).
You can upload the scenes and still pictures recorded with this unit to WEB service with [Link to
Cell] or use the [Live Cast] function if you register to “LUMIX  CLUB”.
≥ You can set the same “LUMIX CLUB” Login ID for this unit and a  smartphone.
When Login ID is acquired over the smartphone (“Image App”) onl y, it is possible to register the
same Login ID to this unit using the “Image App”. (l 170)
When different Login IDs are acq uired for this unit...

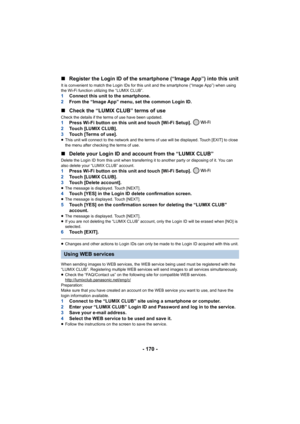

- 170 -
∫
Register the Login ID of the smartphone (“Image App”) into this  unit
It is convenient to match the Login IDs for this unit and the smartphone (“Image App”) when using
the Wi-Fi function utilizing the “LUMIX CLUB”.
1 Connect this unit to the smartphone.
2 From the “Image App” menu, set the common Login ID.
∫Check the “LUMIX CLUB” terms of use
Check the details if the terms of use have been updated.1 Press Wi-Fi button on this unit and touch [Wi-Fi Setup].
2 Touch [LUMIX CLUB].
3 Touch [Terms...
