Panasonic Hc W570 Owners Manual

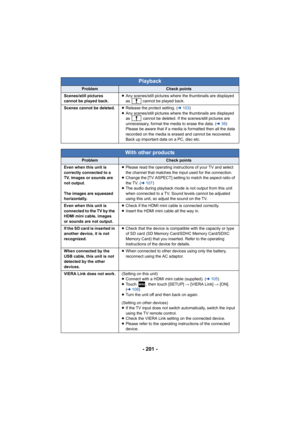

- 201 -
Playback
ProblemCheck points
Scenes/still pictures
cannot be played back. ≥
Any scenes/still pictures where the thumbnails are displayed
as   cannot be played back.
Scenes cannot be deleted. ≥Release the protect setting. ( l103 )
≥ Any scenes/still pictures where the thumbnails are displayed
as   cannot be deleted. If the scenes/still pictures are
unnecessary, format the media to erase the data. ( l36)
Please be aware that if a media is formatted then all the data
recorded on the media is...

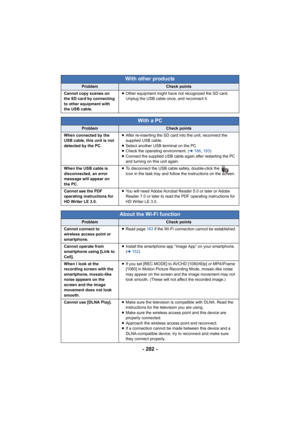

- 202 -
Cannot copy scenes on
the SD card by connecting
to other equipment with
the USB cable.≥
Other equipment might have not recognized the SD card.
Unplug the USB cable once, and reconnect it.
With a PC
ProblemCheck points
When connected by the
USB cable, this unit is not
detected by the PC. ≥
After re-inserting the SD car d into the unit, reconnect the
supplied USB cable.
≥ Select another USB terminal on the PC.
≥ Check the operating environment. ( l186 , 193)
≥ Connect the supplied USB cable...

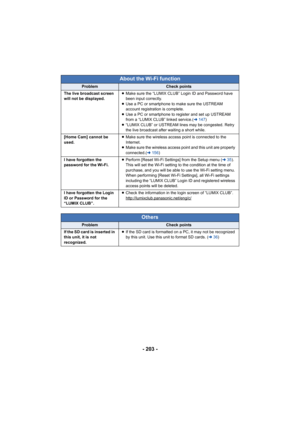

- 203 -
The live broadcast screen
will not be displayed.≥
Make sure the “LUMIX CLUB” Login ID and Password have
been input correctly.
≥ Use a PC or smartphone to make sure the USTREAM
account registration is complete.
≥ Use a PC or smartphone to register and set up USTREAM
from a “LUMIX CLUB” linked service.( l147)
≥ “LUMIX CLUB” or USTREAM lines  may be congested. Retry
the live broadcast after waiting a short while.
[Home Cam] cannot be
used. ≥
Make sure the wireless access point is connected to...

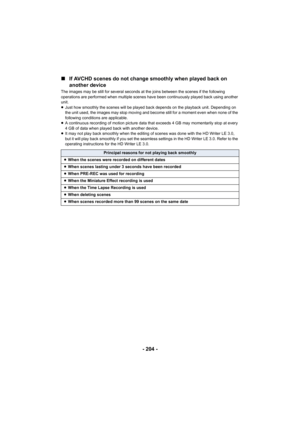

- 204 -
∫
If AVCHD scenes do not change smoothly when played back on
another device
The images may be still for several seconds at the joins betwee n the scenes if the following
operations are performed when multiple scenes have been continu ously played back using another
unit.
≥ Just how smoothly the scenes will be played back depends on the  playback unit. Depending on
the unit used, the images may stop moving and become still for  a moment even when none of the
following conditions are...

- 205 -

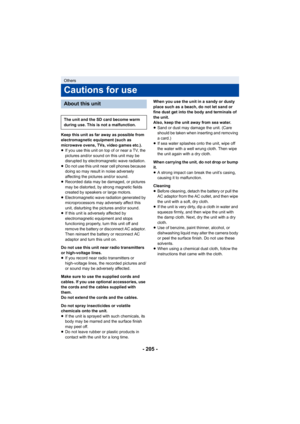

Keep this unit as far away as possible from
electromagnetic equipment (such as
microwave ovens, TVs, video games etc.).
≥If you use this unit on top of or near a TV, the
pictures and/or sound on this unit may be
disrupted by electromagnetic wave radiation.
≥ Do not use this unit near cell phones because
doing so may result in noise adversely
affecting the pictures and/or sound.
≥ Recorded data may be damaged, or pictures
may be distorted, by strong magnetic fields
created by speakers or...

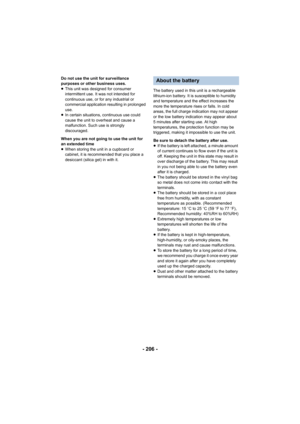

- 206 -
Do not use the unit for surveillance
purposes or other business uses.
≥This unit was designed for consumer
intermittent use. It was not intended for
continuous use, or for any industrial or
commercial application resulting in prolonged
use.
≥ In certain situations, continuous use could
cause the unit to overheat and cause a
malfunction. Such use is strongly
discouraged.
When you are not going to use the unit for
an extended time
≥ When storing the unit in a cupboard or
cabinet, it is...

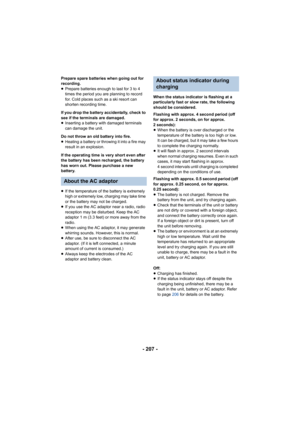

- 207 -
Prepare spare batteries when going out for
recording.
≥Prepare batteries enough to last for 3 to 4
times the period you are planning to record
for. Cold places such as a ski resort can
shorten recording time.
If you drop the battery accidentally, check to
see if the terminals are damaged.
≥ Inserting a battery with damaged terminals
can damage the unit.
Do not throw an old battery into fire.
≥ Heating a battery or throwing it into a fire may
result in an explosion.
If the operating time is...

- 208 -

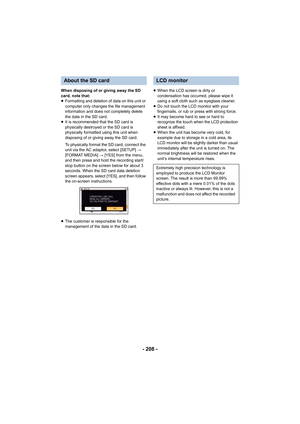

When disposing of or giving away the SD
card, note that:
≥Formatting and deletion of data on this unit or
computer only changes the file management
information and does not completely delete
the data in the SD card.
≥ It is recommended that the SD card is
physically destroyed or the SD card is
physically formatted using this unit when
disposing of or giving away the SD card.
To physically f ormat  the SD card,  connect the
unit via the AC adaptor, select [SETUP]  #
[FORMAT MEDIA]  #...

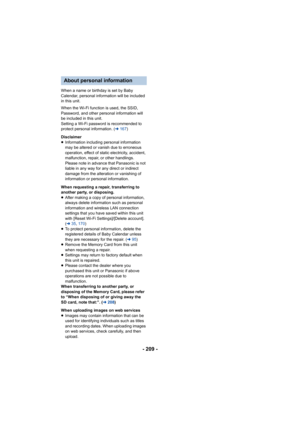

- 209 -
When a name or birthday is set by Baby
Calendar, personal information will be included
in this unit.
When the Wi-Fi function is used, the SSID,
Password, and other personal information will
be included in this unit.
Setting a Wi-Fi password is recommended to
protect personal information. (l167)
Disclaimer
≥ Information including personal information
may be altered or vanish due to erroneous
operation, effect of static electricity, accident,
malfunction, repair, or other handlings.
Please...

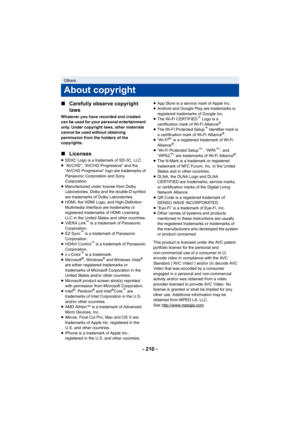

- 210 -
∫
Carefully observe copyright
laws
Whatever you have recorded and created
can be used for your personal entertainment
only. Under copyright laws, other materials
cannot be used without obtaining
permission from the holders of the
copyrights.
∫Licenses
≥SDXC Logo is a trademark of SD-3C, LLC.
≥ “AVCHD”, “AVCHD Progressive” and the
“AVCHD Progressive” logo are trademarks of
Panasonic Corporation and Sony
Corporation.
≥ Manufactured under license from Dolby
Laboratories. Dolby and the...
