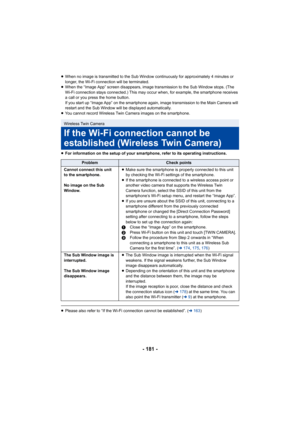

- 181 -
≥When no image is transmitted to the Sub Window continuously for  approximately 4 minutes or
longer, the Wi-Fi connection will be terminated.
≥ When the “Image App” screen disappears, image transmission to t he Sub Window stops. (The
Wi-Fi connection stays connected.) This may occur when, for exa mple, the smartphone receives
a call or you press the home button.
If you start up “Image App” on the smartphone again, image tran smission to the Main Camera will
restart and the Sub Window will be...

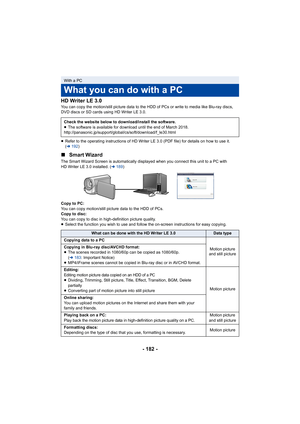

- 182 -
HD Writer LE 3.0
You can copy the motion/still picture data to the HDD of PCs or
 write to media like Blu-ray discs,
DVD discs or SD cards using HD Writer LE 3.0.
≥ Refer to the operating instructions of HD Writer LE 3.0 (PDF fil e) for details on how to use it.
( l 192 )
∫Smart Wizard
The Smart Wizard Screen is automatically displayed when you con nect this unit to a PC with
HD Writer LE 3.0 installed. ( l189 )
Copy to PC:
You can copy motion/still picture data to the HDD of PCs.
Copy to...

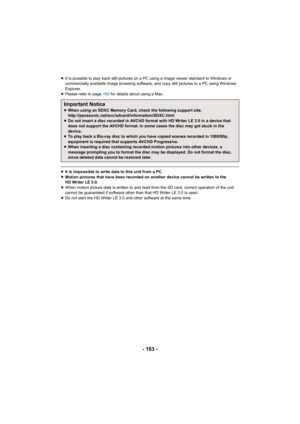

- 183 -
≥It is possible to play back still pictures on a PC using a imag e viewer standard to Windows or
commercially available image browsing software, and copy still  pictures to a PC using Windows
Explorer.
≥ Please refer to page  193 for details about using a Mac.
≥It is impossible to write data to this unit from a PC.
≥ Motion pictures that have been recorded on another device canno t be written to the
HD Writer LE 3.0.
≥ When motion picture data is written to and read from the SD car d, correct...

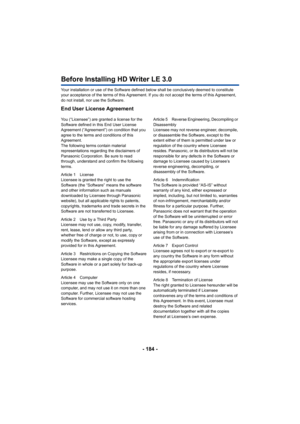

- 184 -
Before Installing HD Writer LE 3.0
Your installation or use of the Software defined below shall be  conclusively deemed to constitute
your acceptance of the terms of this Agreement. If you do not accept the terms of this Agreement,
do not install, nor use the Software.
End User License Agreement
You (“Licensee”) are granted a license for the
Software defined in this End User License
Agreement (“Agreement”) on condition that you
agree to the terms and conditions of this
Agreement.
The...

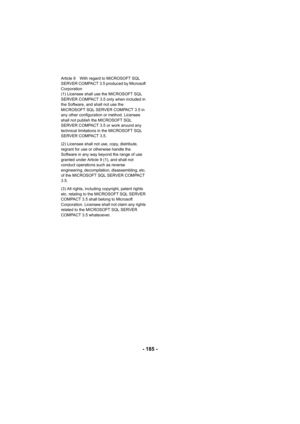

- 185 -
Article 9 With regard to MICROSOFT SQL
SERVER COMPACT 3.5 produced by Microsoft
Corporation
(1) Licensee shall use the MICROSOFT SQL
SERVER COMPACT 3.5 only when included in
the Software, and shall not use the
MICROSOFT SQL SERVER COMPACT 3.5 in
any other configuration or method. Licensee
shall not publish the MICROSOFT SQL
SERVER COMPACT 3.5 or work around any
technical limitations in the MICROSOFT SQL
SERVER COMPACT 3.5.
(2) Licensee shall not use, copy, distribute,
regrant for use...

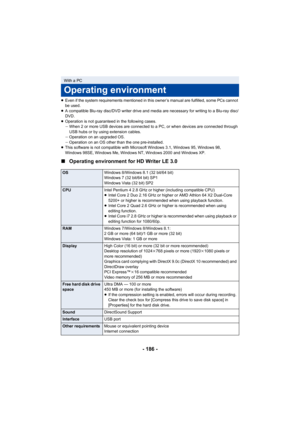

- 186 -
≥Even if the system requirements mentioned in this owner’s manual are fulfilled, some PCs cannot
be used.
≥ A compatible Blu-ray disc/DVD writer drive and media are necess ary for writing to a Blu-ray disc/
DVD.
≥ Operation is not guaranteed in the following cases.
jWhen 2 or more USB devices are connected to a PC, or when devic es are connected through
USB hubs or by using extension cables.
j Operation on an upgraded OS.
j Operation on an OS other than the one pre-installed.
≥ This software is...

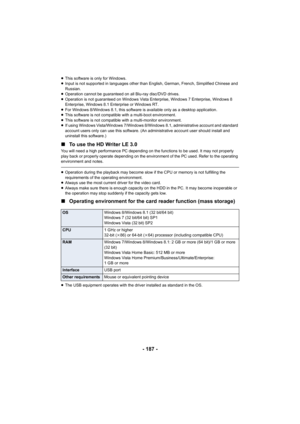

- 187 -
≥This software is only for Windows.
≥ Input is not supported in languages other than English, German,  French, Simplified Chinese and
Russian.
≥ Operation cannot be guaranteed on all Blu-ray disc/DVD drives.
≥ Operation is not guaranteed on Windows Vista Enterprise, Window s 7 Enterprise, Windows 8
Enterprise, Windows 8.1 Enterprise or Windows RT.
≥ For Windows 8/Windows 8.1, this software is available only as a  desktop application.
≥ This software is not compatible with a multi-boot...

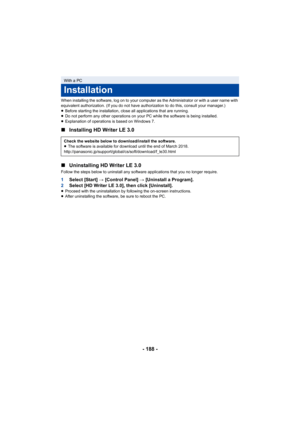

- 188 -
When installing the software, log on to your computer as the Administrator or with a user name with
equivalent authorization. (If you do not have authorization to  do this, consult your manager.)
≥ Before starting the installation, close all applications that a re running.
≥ Do not perform any other operations on your PC while the softwa re is being installed.
≥ Explanation of operations is based on Windows 7.
∫ Installing HD Writer LE 3.0
∫ Uninstalling HD Writer LE 3.0
Follow the steps below...

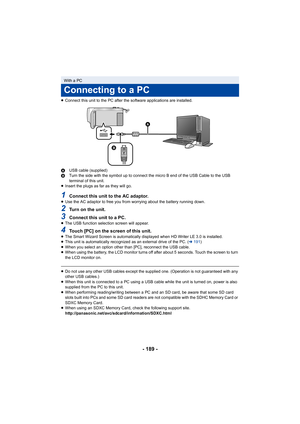

- 189 -
≥Connect this unit to the PC after the software applications are  installed.
A USB cable (supplied)
B Turn the side with the symbol up to connect the micro B end of  the USB Cable to the USB
terminal of this unit.
≥ Insert the plugs as far as they will go.
1Connect this unit to the AC adaptor.≥Use the AC adaptor to free you from worrying about the battery  running down.
2Turn on the unit.
3Connect this unit to a PC.≥The USB function selection screen will appear.
4Touch [PC] on the screen of this...

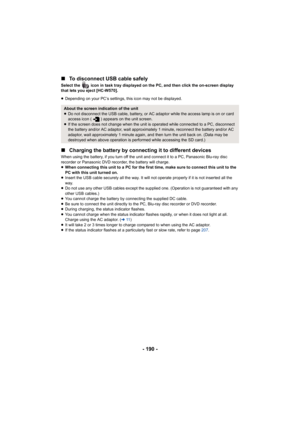

- 190 -
∫
To disconnect USB cable safely
Select the   icon in task tray displayed on the PC, and then cli ck the on-screen display
that lets you eject [HC-W570].
≥ Depending on your PC’s settings, this icon may not be displayed .
∫Charging the battery by connecting it to different devices
When using the battery, if you tur n off the unit and connect it to a PC, Panasonic Blu-ray disc
recorder or Panasonic DVD recorder, the battery will charge.
≥ When connecting this unit to a PC for the first time,...
