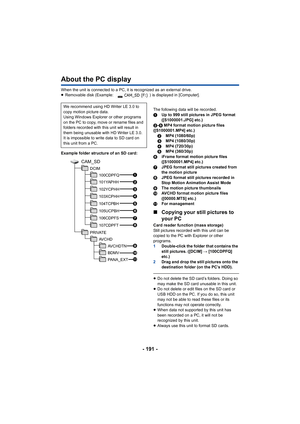

About the PC display
When the unit is connected to a PC, it is recognized as an external drive.
≥ Removable disk (Example:  ) is displayed in [Computer].
Example folder structure of an SD card: The following data will be recorded.
1
Up to 999 still pictures in JPEG format
([S1000001.JPG] etc.)
2- 5 MP4 format motion picture files
([S1000001.MP4] etc.) 2 MP4 (1080/60p)
3 MP4 (1080/30p)
4 MP4 (720/30p)
5 MP4 (360/30p)
6 iFrame format motion picture files
([S1000001.MP4] etc.)
7 JPEG format still...

- 192 -

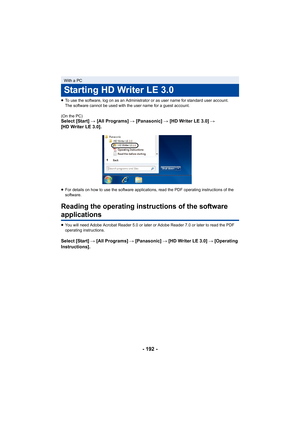

≥To use the software, log on as an Administrator or as user name for standard user account.
The software cannot be used with the user name for a guest acco unt.
(On the PC)
Select [Start]  # [All Programs]  # [Panasonic] # [HD Writer LE 3.0]  #
[HD Writer LE 3.0].
≥ For details on how to use the software applications, read the P DF operating instructions of the
software.
Reading the operating instru ctions of the software
applications
≥You will need Adobe Acrobat Reader 5.0 or later or Adobe...

- 193 -

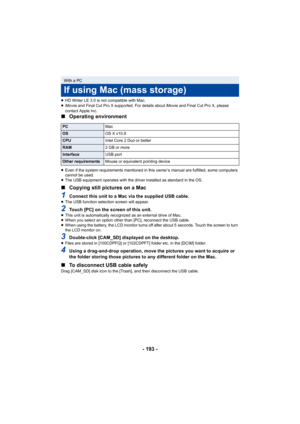

≥HD Writer LE 3.0 is not compatible with Mac.
≥ iMovie and Final Cut Pro X suppo rted. For details about iMovie and Final Cut Pro X, please
contact Apple Inc.
∫ Operating environment
≥Even if the system requirements mentioned in this owner’s manua l are fulfilled, some computers
cannot be used.
≥ The USB equipment operates with the driver installed as standar d in the OS.
∫Copying still pictures on a Mac
1Connect this unit to a Mac via the supplied USB cable.≥The USB function selection screen...

- 194 -
∫

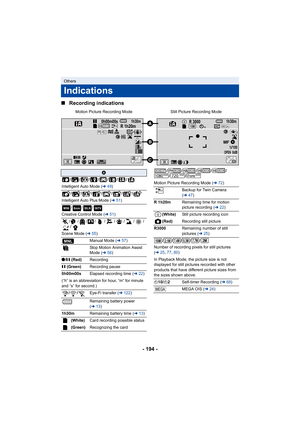

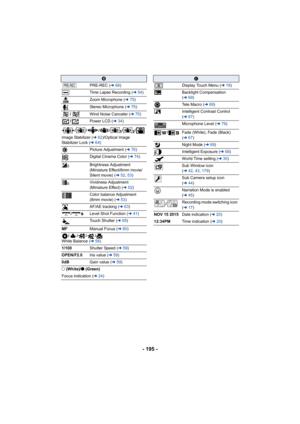

Recording indications
Others
Indications
Motion Picture Recording Mode Still Picture Recording Mode
0h00m00sR 1h20m1h30m
+1
1h30m
1/100OPEN
MF
0dB
+1MEGA

R 3000
PRE-REC10M
A
///////
Intelligent Auto Mode ( l49)
///////
Intelligent Auto Plus Mode ( l51)
///
Creative Control Mode ( l51)
///////// /
Scene Mode ( l55)
Manual Mode ( l57)
Stop Motion Animation Assist
Mode ( l56)
¥ /;  (Red) Recording
; (Green) Recording pause
0h00m00s Elapsed recording time ( l22)
(“h” is an abbreviation for...

- 195 -
B
PRE-REC ( l68)
Time Lapse Recording ( l54)
Zoom Microphone ( l75)
Stereo Microphone (l 75)
/ Wind Noise Canceler ( l75)
/ Power LCD ( l34)
// // / /
Image Stabilizer ( l62)/Optical Image
Stabilizer Lock ( l64)
Picture Adjustment ( l76)
Digital Cinema Color ( l74)
Brightness Adjustment
(Miniature Effect/8mm movie/
Silent movie) ( l52, 53 )
Vividness Adjustment
(Miniature Effect) ( l52)
Color balance Adjustment
(8mm movie) ( l53)
AF/AE tracking ( l63)
/ Level Shot Function ( l41)
Touch...

- 196 -
∫

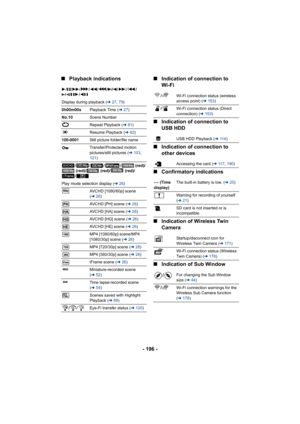

Playback indications ∫Indication of connection to
Wi-Fi
∫ Indication of connection to
USB HDD
∫ Indication of connection to
other devices
∫ Confirmatory indications
∫ Indication of Wireless Twin
Camera
∫ Indication of Sub Window
1/;/ 5 // 6// 7/8/9 /: /
D /E /;1 /2;
Display during playback ( l27, 79 )
0h00m00s Playback Time ( l27)
No.10 Scene Number
Repeat Playback ( l81)
Resume Playback ( l82)
100-0001 Still picture folder/file name
Transfer/Protected motion
pictures/still pictures ( l103...

- 197 -

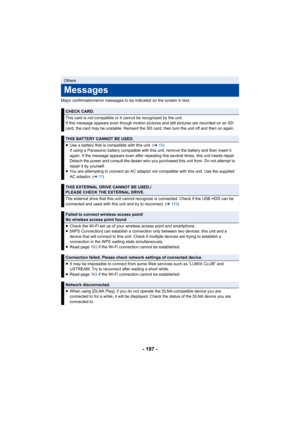

Major confirmation/error messages to be indicated on the screen in text.
Others
Messages
CHECK CARD.
This card is not compatible or it cannot be recognized by the unit.
If this message appears even though motion pictures and still p ictures are recorded on an SD
card, the card may be unstable. Reinsert the SD card, then turn  the unit off and then on again.
THIS BATTERY CANNOT BE USED.
≥Use a battery that is compatible with this unit. ( l10)
If using a Panasonic battery compatible with this...

- 198 -

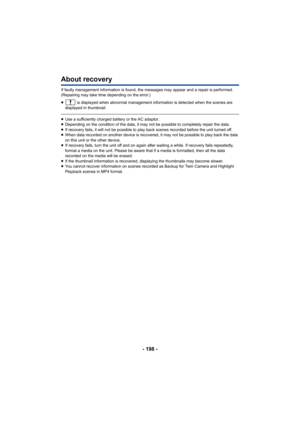

About recovery
If faulty management information is found, the messages may appear and a repair is performed.
(Repairing may take time depending on the error.)
≥  is displayed when abnormal management information is detected  when the scenes are
displayed in thumbnail.
≥ Use a sufficiently charged battery or the AC adaptor.
≥ Depending on the condition of the data, it may not be possible  to completely repair the data.
≥ If recovery fails, it will not be possible to play back scenes  recorded...

- 199 -
∫

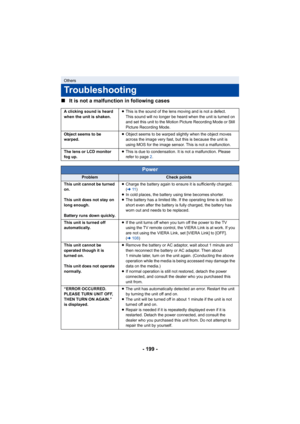

It is not a malfunction in following cases
Others
Troubleshooting
A clicking sound is heard
when the unit is shaken. ≥
This is the sound of the lens moving and is not a defect.
This sound will no longer be heard when the unit is turned on
and set this unit to the Motion Picture Recording Mode or Still
Picture Recording Mode.
Object seems to be
warped. ≥
Object seems to be warped slightly when the object moves
across the image very fast, but this is because the unit is
using MOS for the...

- 200 -

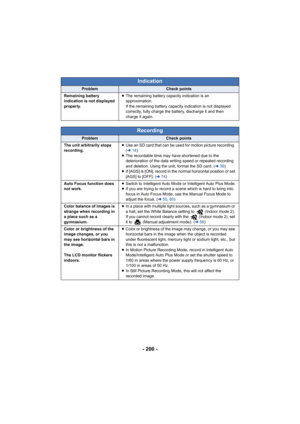

Indication
ProblemCheck points
Remaining battery
indication is not displayed
properly. ≥
The remaining battery capacity indication is an
approximation.
If the remaining battery capacity indication is not displayed
correctly, fully charge the battery, discharge it and then
charge it again.
Recording
ProblemCheck points
The unit arbitrarily stops
recording. ≥
Use an SD card that can be used for motion picture recording.
(l 14)
≥ The recordable time may have shortened due to the...
